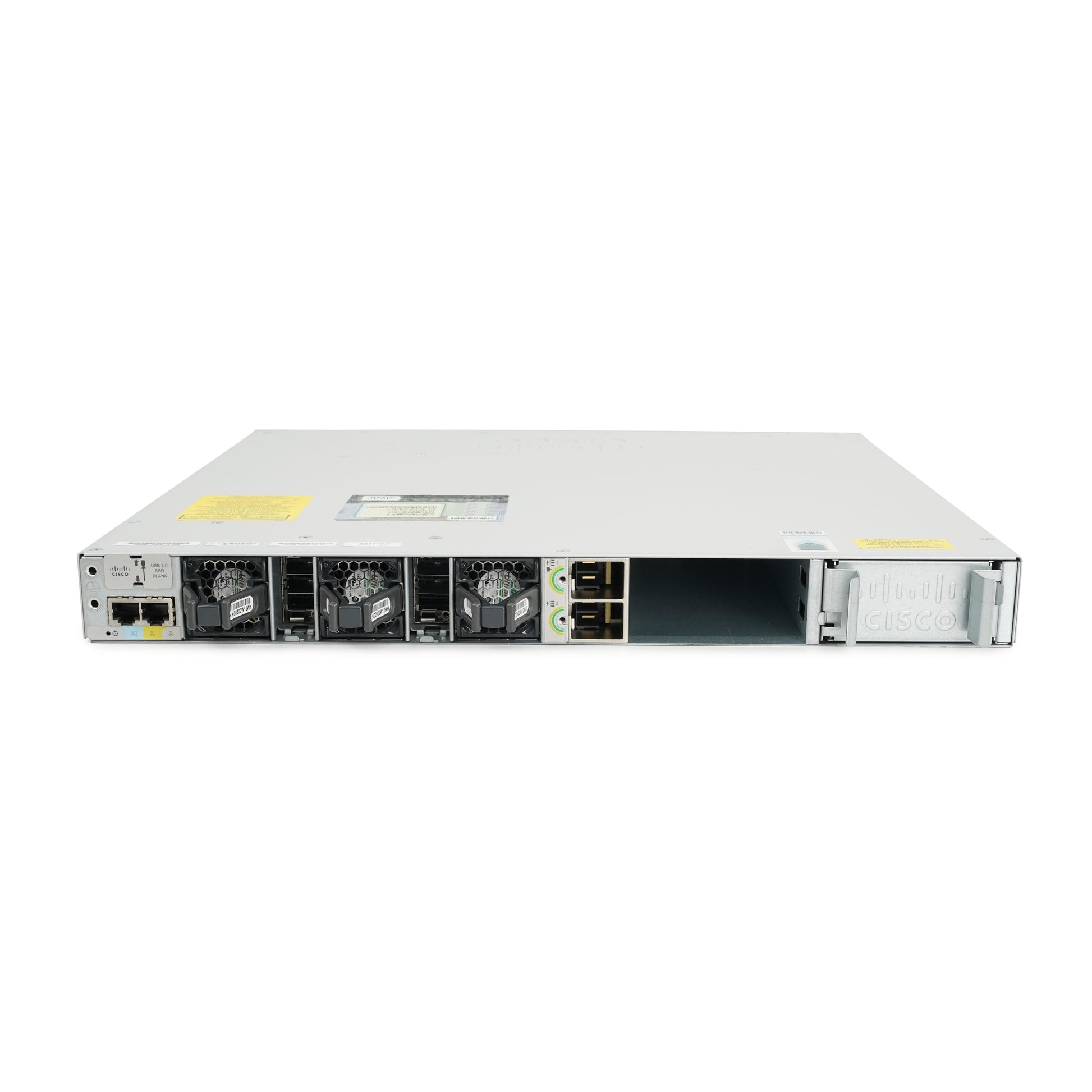

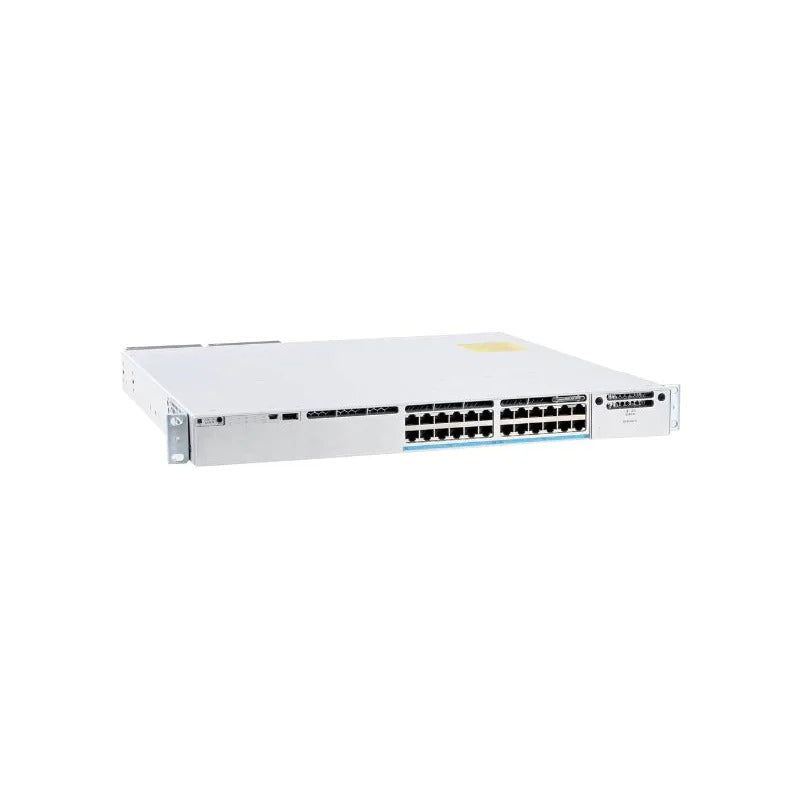

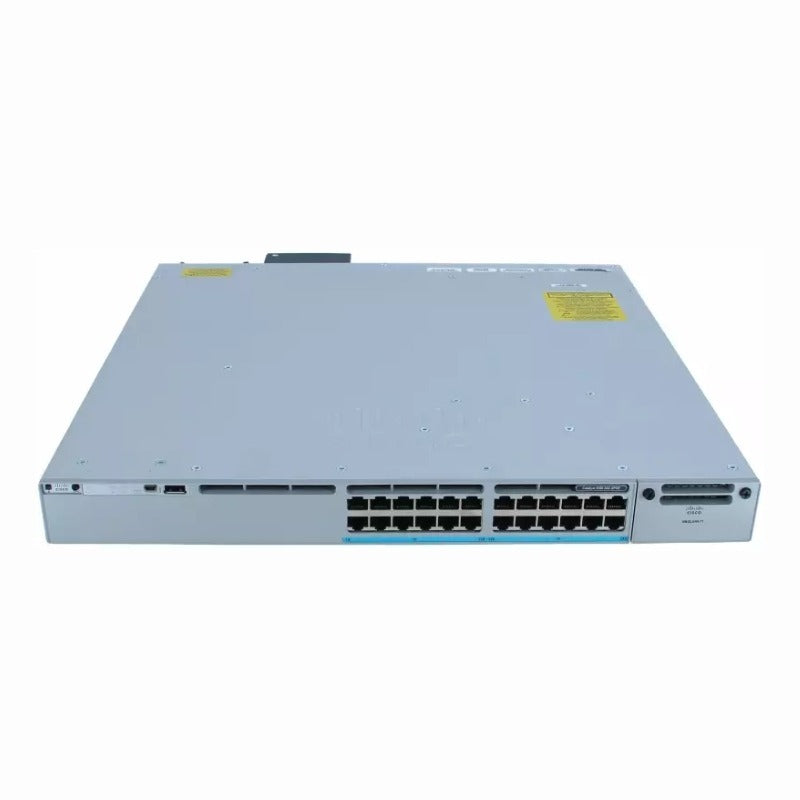

C9300-24UX-E Cisco Catalyst 9300 Series 24-Port UPOE Switch | Network Essentials

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL CISCO WARRANTY INCLUDED.
SUPPLIED BY CHICAGO COMPUTER SUPPLY

Overview

The C9300-24UX-E is a high-density, multigigabit access switch from the Cisco Catalyst 9300 Series, designed for enterprises that need advanced power delivery, scalable Layer 3 routing, and consistent performance at the access layer. With 24 UPOE-capable ports supporting multigigabit speeds, this model is ideal for Wi-Fi 6 access points, cameras, collaboration devices, and power-hungry IoT endpoints.

Built as a foundational component of software-defined campus networks, the C9300-24UX-E delivers secure segmentation, simplified operations, and predictable scalability. The Network Essentials software enables robust routing and policy-driven control while maintaining operational simplicity for growing enterprise environments.

Key Features

• 24 multigigabit UPOE ports supporting speeds up to 10G
• Network Essentials software for enterprise Layer 3 routing
• High-density power delivery for modern edge devices
• Stackable architecture for scalable campus deployments
• Designed for long-term enterprise access network stability

Technical Specifications

General

• Manufacturer: Cisco
• Product Line: Cisco Catalyst
• Product Series: 9300
• Model: C9300-24UX-E
• Software Edition: Network Essentials
• Product Type: Managed Layer 3 Switch
• Form Factor: Rack-mountable

Ports & Interfaces

• 24 × 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE ports
• 1 × expansion slot (uplink module support)

Performance & Capacity

• VLAN IDs: up to 4,000
• SVIs: up to 2,000
• IPv4 routes: up to 32,000
• IPv6 routes: up to 16,000
• Flexible NetFlow entries: up to 64,000

Management & Security

• Managed via CLI, NETCONF, RESTCONF, SNMP
• AES-128 encryption support
• Jumbo frame support up to 9,198 bytes

Power & Physical

• PoE type: UPOE
• PoE budget: 560 W
• Internal power supply with optional redundancy
• Dimensions: 18.5" W × 17.5" D × 1.7" H
• Weight: 18.19 lbs

UPC: 00889728035606

Use Cases

The C9300-24UX-E is well-suited for enterprise access layers, high-density wireless deployments, and environments running multigigabit endpoints. It fits organizations upgrading to Wi-Fi 6, deploying advanced collaboration devices, or standardizing on a Catalyst 9300 platform that delivers both power and performance without added complexity.

Why Choose the C9300-24UX-E

• Supports multigigabit access for next-generation edge devices
• Delivers UPOE power without external injectors
• Scales easily within Catalyst 9300 campus architectures
• Provides enterprise routing and segmentation with Network Essentials
• Ships brand new with full Cisco manufacturer warranty

FAQs

What type of ports does the C9300-24UX-E provide?

It provides 24 multigigabit UPOE ports supporting speeds up to 10G.

Is this switch suitable for Wi-Fi 6 deployments?

Yes. It is for high-density wireless environments and multigigabit access points.

Does the C9300-24UX-E support stacking?

Yes. It supports stacking for scalable and resilient campus deployments.

What software license do we get?

The switch includes the Network Essentials software edition.

Is this product new and covered by warranty?

Yes. It is brand new, factory-sealed, and backed by the full Cisco manufacturer's warranty.
