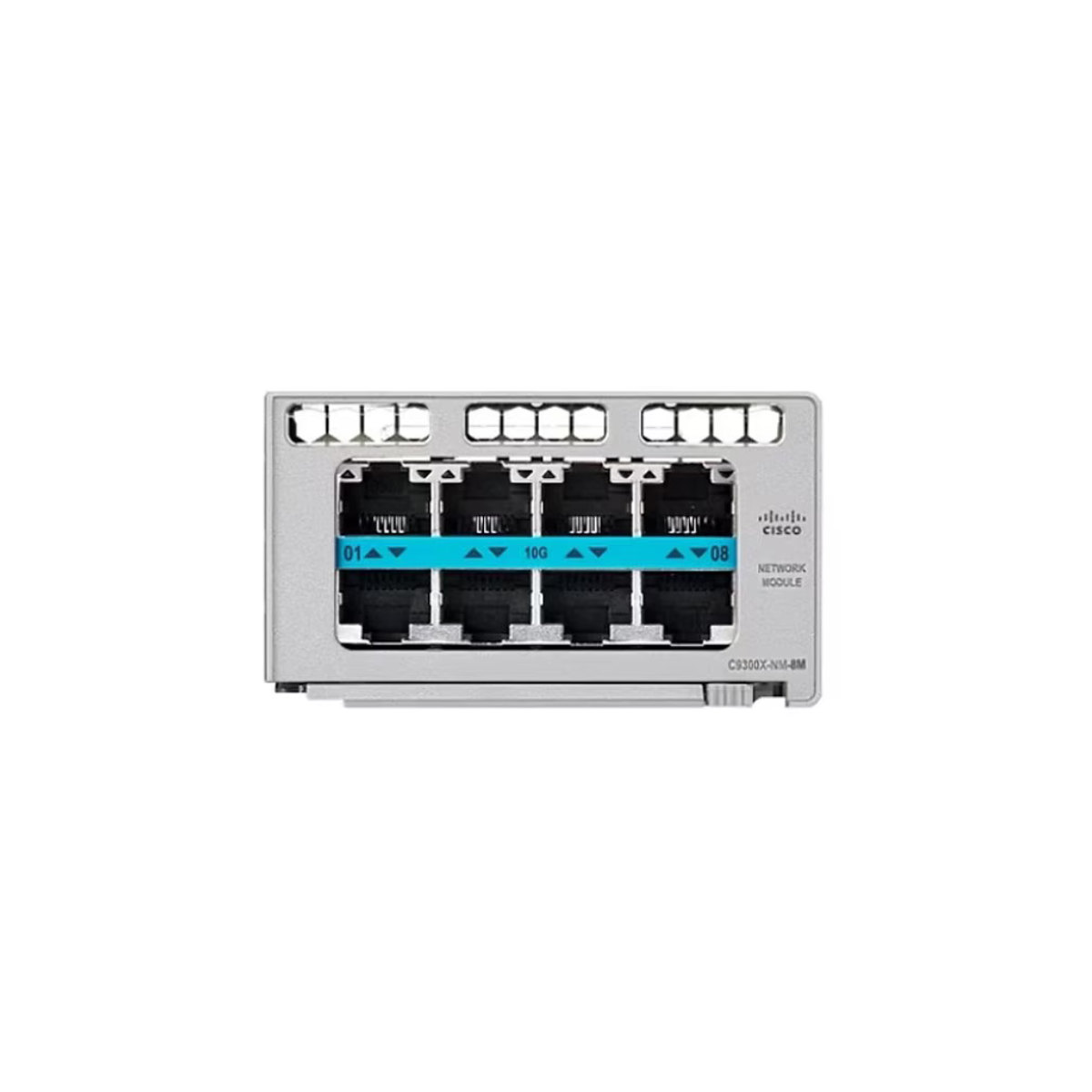

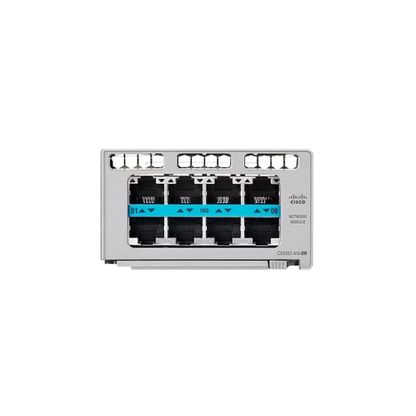

C9300X-NM-8M= Cisco Catalyst 9300X 8-Port Multigigabit Network Module

BRAND NEW WITH FULL CISCO WARRANTY!!!

The Cisco Catalyst 9300X Network Module C9300X-NM-8M= is a field-replaceable expansion module designed specifically for compatible Cisco Catalyst 9300X Series switches. It adds eight 10G/mGigabit copper Ethernet ports, allowing organizations to extend switch connectivity with flexible multigigabit speeds of 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps. Cisco identifies the C9300X-NM-8M= as the spare version of the C9300X-NM-8M network module.

The module is intended for enterprise networks that need additional high-speed copper connectivity without replacing the underlying Catalyst 9300X switch. Its multigigabit capability is particularly useful for modern access networks where wireless access points, servers, workstations, and other endpoints require more bandwidth than traditional Gigabit Ethernet can provide. Because it is a field-replaceable network module, businesses can expand the capabilities of supported Catalyst 9300X platforms while protecting their existing infrastructure investment.

Key Features – Cisco Catalyst 9300X Network Module C9300X-NM-8M=

• Processor: Not applicable; network expansion module
• Memory: Not applicable
• Storage: Not applicable
• Controller: Integrated network-module interface for compatible Catalyst 9300X switches
• Networking / Ports:
  • 8 × 10G/mGigabit copper Ethernet ports
  • Supported speeds: 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps

• Power & Cooling: Powered through the host Catalyst 9300X switch; no independent power supply
• Management: Managed through the host Cisco Catalyst 9300X switch
• Security: Uses the security and management capabilities of the host Catalyst 9300X platform
• Form Factor: Field-replaceable network expansion module

Technical Specifications

• Processor Type: Not applicable
• Chipset / Platform: Cisco Catalyst 9300X Series
• Memory Technology: Not applicable
• Storage Interface: Not applicable
• RAID Support: Not applicable
• Expansion Slots: 1 × compatible Catalyst 9300X network-module bay
• Networking:
  • 8 × 10G/mGigabit copper Ethernet
  • 100 Mbps
  • 1 Gbps
  • 2.5 Gbps
  • 5 Gbps
  • 10 Gbps
• I/O Ports: 8 × multigigabit copper Ethernet ports
• Operating System Compatibility: Operates through the Cisco IOS XE software environment of the compatible Catalyst 9300X host switch

Physical Specifications

• Form Factor: Field-replaceable network expansion module
• Weight:
  • Cisco does not publish a standalone weight for the C9300X-NM-8M= in its current Catalyst 9300 Series datasheet
  • lbs: Not published by Cisco
• Dimensions:
  • Cisco does not publish standalone module dimensions for the C9300X-NM-8M= in its current Catalyst 9300 Series datasheet
  • inches: Not published by Cisco
• Rack Compatibility: Not independently rack-mountable; installs into the network-module slot of a compatible Catalyst 9300X switch

Physical-specification validation: Cisco's current official Catalyst 9300 Series documentation identifies the C9300X-NM-8M= and its port configuration but does not provide standalone module weight or dimensions. Therefore, those measurements are intentionally not fabricated from third-party listings.

Ideal For

• Enterprise campus access networks
• High-speed wired access deployments
• Wi-Fi 6/6E/7 access-point connectivity
• High-bandwidth workstation deployments
• Server and storage connectivity
• Enterprise branch infrastructure
• Network environments migrating from 1GbE to multigigabit Ethernet
• Organizations extending compatible Catalyst 9300X switches without replacing the chassis

Warranty & Support

• Standard Manufacturer Warranty: Cisco hardware warranty applies according to the applicable Cisco warranty terms for the network module.
• Support Contract Compatibility: Compatible with Cisco support and service offerings for supported Catalyst 9300X deployments.
• Host Platform Requirement: The C9300X-NM-8M= is designed for Cisco Catalyst 9300X platforms; Cisco states that Catalyst 9300X network modules are supported only on Catalyst 9300X models.

FAQs – Cisco Catalyst 9300X Network Module C9300X-NM-8M=

1. What does the C9300X-NM-8M= add to a Catalyst 9300X switch?

It adds eight multigigabit copper Ethernet ports capable of operating at 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps, providing additional high-speed connectivity for compatible Catalyst 9300X switches.

2. Which Cisco switches are compatible with the C9300X-NM-8M=?

The module belongs to the Catalyst 9300X network-module family. Cisco specifies that Catalyst 9300X network modules are supported only on Catalyst 9300X models.

3. Can the C9300X-NM-8M= be upgraded or expanded?

The module itself provides a fixed eight-port configuration. Expansion is achieved by installing the appropriate compatible network module into a supported Catalyst 9300X switch rather than adding ports to the C9300X-NM-8M= itself.

4. Does the module have its own power supply?

No. The C9300X-NM-8M= is a network expansion module and does not use an independent AC power supply. It receives power through the host Catalyst 9300X switch.

5. Can the module be installed without a Catalyst 9300X switch?

No. It is a field-replaceable network module designed to operate within a compatible Catalyst 9300X chassis. It is not a standalone Ethernet switch.

6. What is the main advantage of the multigigabit ports?

The eight copper interfaces support multiple Ethernet speeds up to 10 Gbps, allowing organizations to connect devices such as high-performance wireless access points and other bandwidth-intensive endpoints while maintaining copper-based infrastructure.
