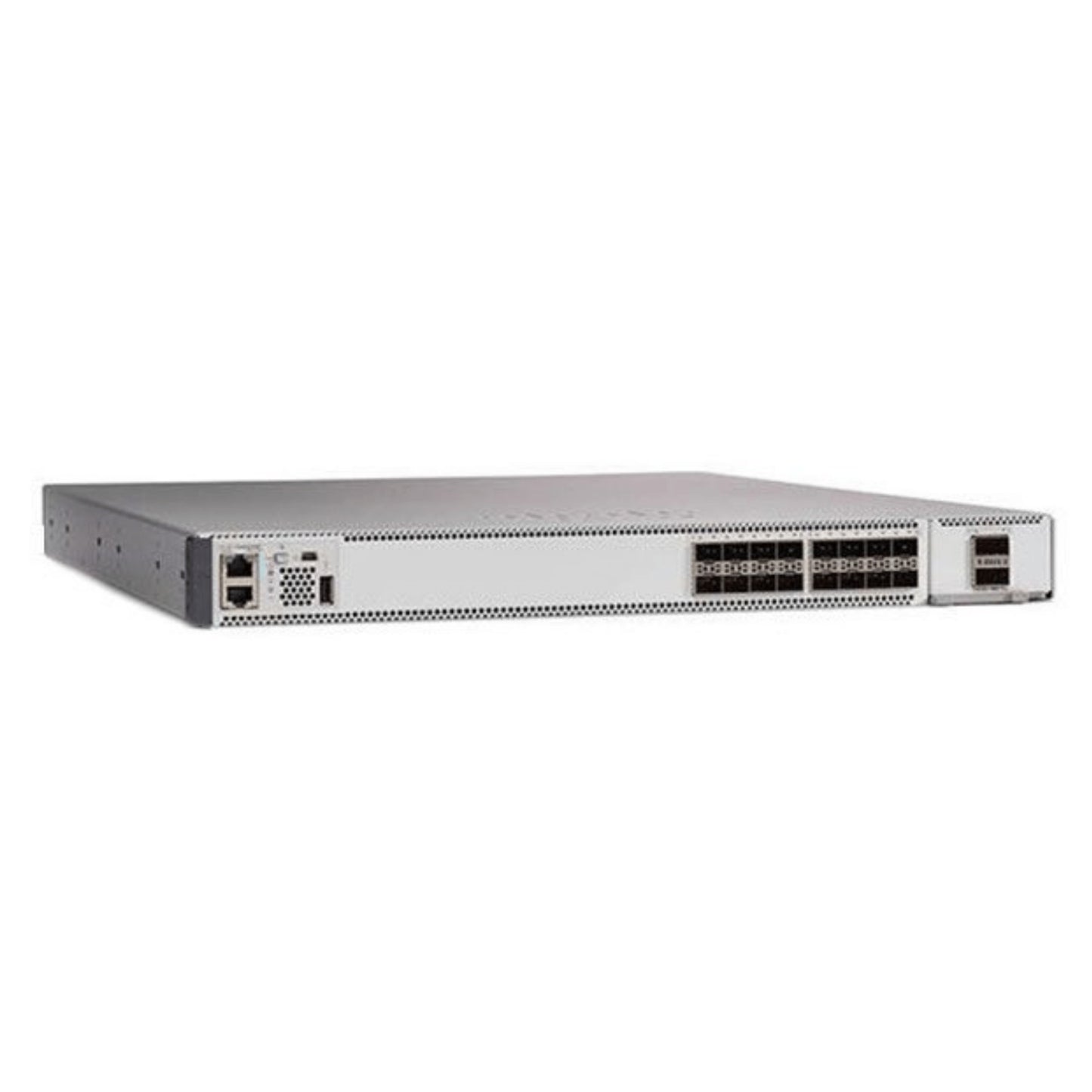

C9500-24X-E Cisco Catalyst 9500 Series 24-Port 10G Switch | Network Advantage

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL CISCO WARRANTY INCLUDED.
SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The Cisco Catalyst C9500-24X-E is a fixed-core enterprise switch designed for high-performance campus core and aggregation deployments. Built on an x86-based architecture, it delivers consistent throughput, deep routing scale, and advanced programmability for modern enterprise networks.

With a mix of 10GBase-T and 10G SFP+ interfaces, this model supports flexible connectivity across access, aggregation, and core layers. The Network Advantage software license enables advanced Layer 3 routing, segmentation, and policy control, making the C9500-24X-E a strong foundation for scalable, future-ready infrastructure.

Key Features

• 24 total 10G ports combining copper and fiber connectivity
• Network Advantage software for advanced Layer 3 routing
• Fixed-core x86 platform for predictable performance
• Designed for enterprise campus core and aggregation roles
• Front-to-rear airflow for efficient data center cooling

Technical Specifications

General

• Manufacturer: Cisco
• Product Line: Catalyst
• Product Series: 9500
• Model: C9500-24X-E
• Software Edition: Network Advantage
• Product Type: Managed Layer 3 Switch
• Form Factor: Rack-mountable (1RU)

Ports & Interfaces

• 16 × 10GBase-T RJ-45 ports
• 8 × 10G SFP+ ports
• Total Ports: 24
• Jumbo Frame Support: 9,198 bytes
• MAC Address Table: 64,000 entries

Performance & Capacity

• Switching Type: 10 Gigabit Ethernet
• High-scale routing and VLAN support for enterprise networks
• Supports large multicast, ACL, and policy tables

Routing & Management

• Supported protocols include OSPF, RIP, VRRP, PIM, and policy-based routing
• Remote management via CLI, SNMP, NETCONF, RESTCONF, and RMON

Memory & Processing

• CPU: x86 processor at 2.4 GHz
• RAM: 16 GB
• Flash Storage: 16 GB

Power & Reliability

• Dual hot-plug internal power supplies
• Power Provided: 950 W
• Redundant Power: 1+1 supported
• Encryption: 256-bit AES

Environmental

• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 149°F
• Operating Humidity: 5% to 90% non-condensing

UPC: 889728133524

Use Cases

The C9500-24X-E is ideal for enterprise campus cores, aggregation layers, and high-density distribution environments. It suits organizations that require reliable 10G connectivity, advanced routing capabilities, and long-term scalability for growing network demands.

Why Choose the C9500-24X-E

• Delivers enterprise-grade 10G performance in a fixed-core design
• Supports advanced routing and segmentation with Network Advantage
• Optimized for campus core and aggregation deployments
• Offers flexible copper and fiber 10G connectivity
• Ships brand new with full Cisco manufacturer warranty

Frequently Asked Questions

What role does the C9500-24X-E play in a network?

It is for enterprise campus core and aggregation layers where high throughput and routing scale are required.

Does this switch support both copper and fiber connections?

Yes. It includes both 10GBase-T RJ-45 ports and 10G SFP+ fiber ports.

Is Network Advantage included with this model?

Yes. The C9500-24X-E includes the Network Advantage software edition.

Does the switch support redundant power supplies?

Yes. It supports dual hot-plug power supplies in a 1+1 redundant configuration.

Is this product new and covered by the Cisco warranty?

Yes. It is factory-sealed, retail-boxed, and backed by the full Cisco manufacturer's warranty.
