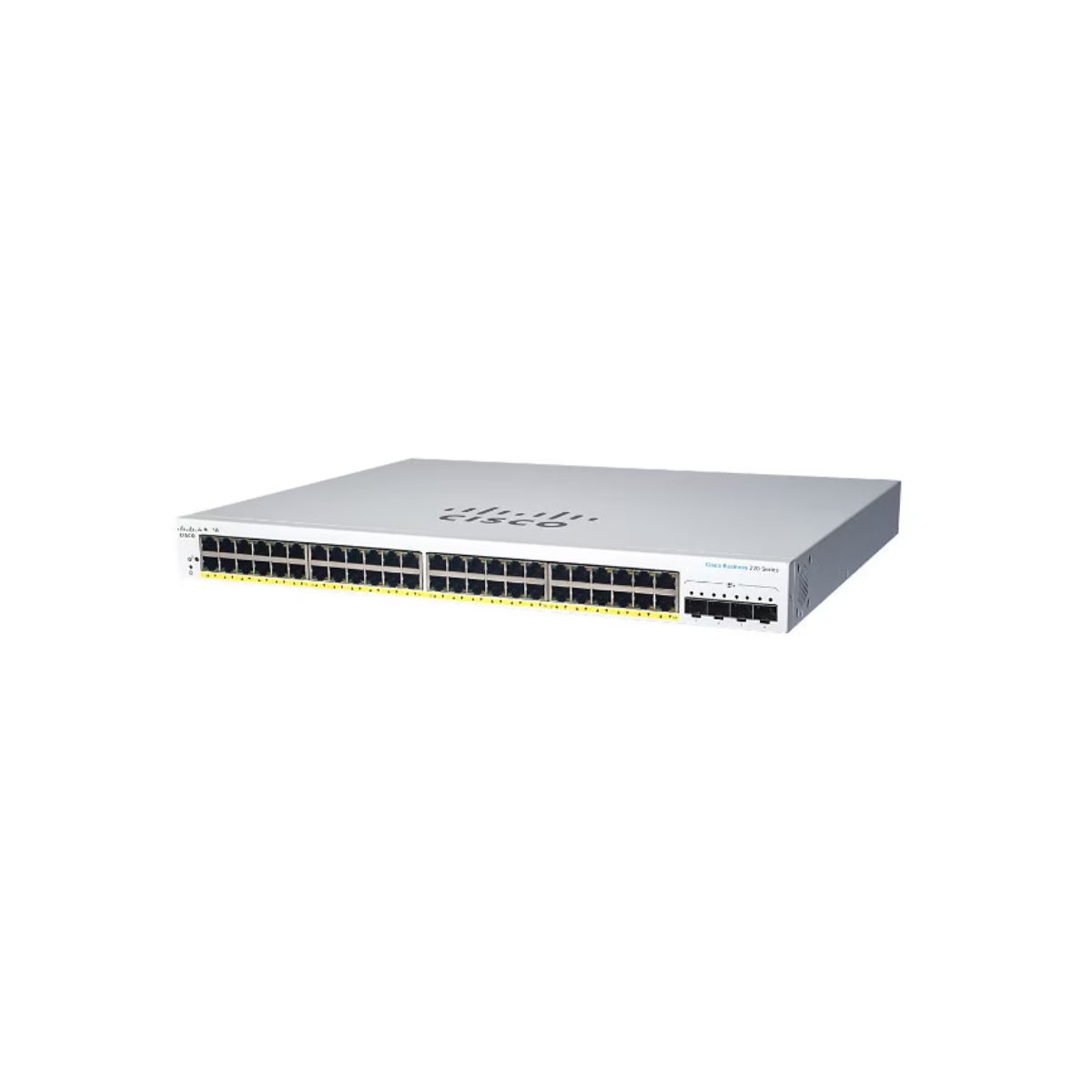

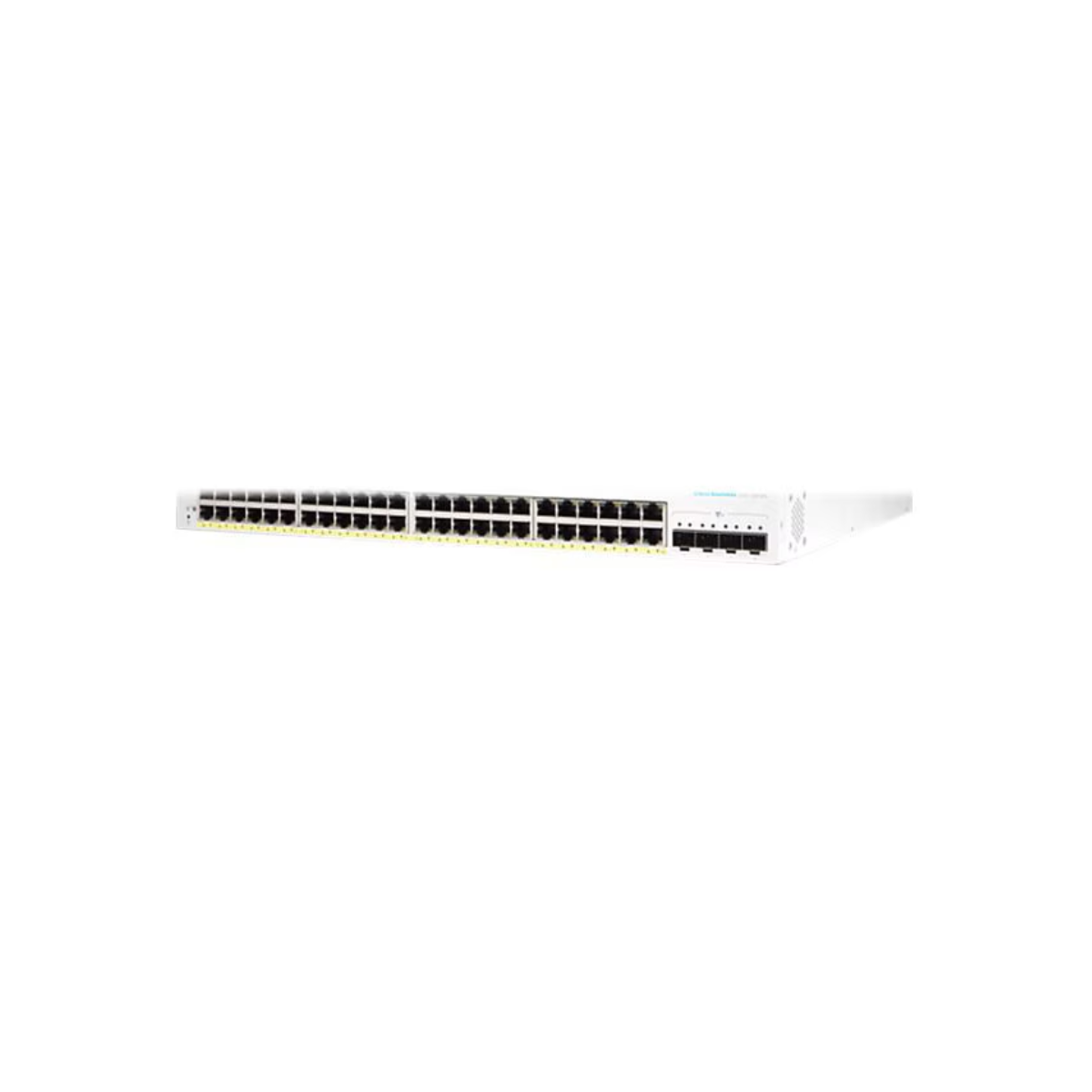

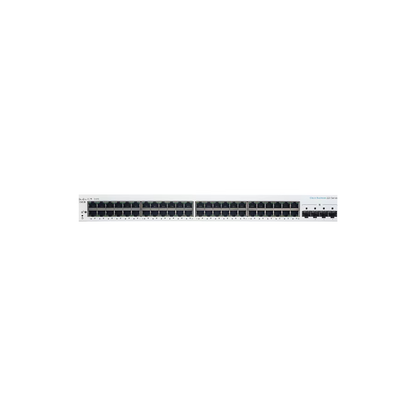

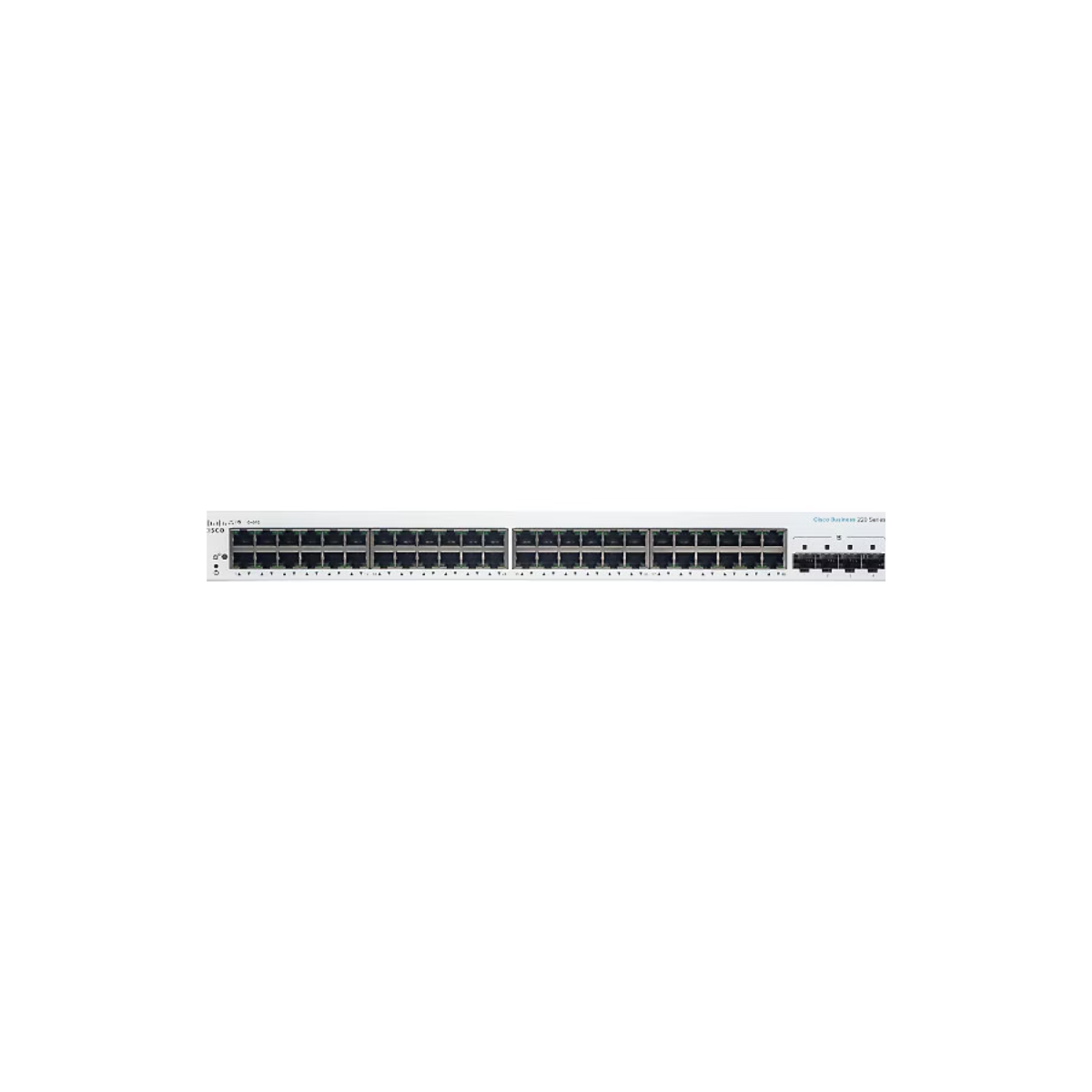

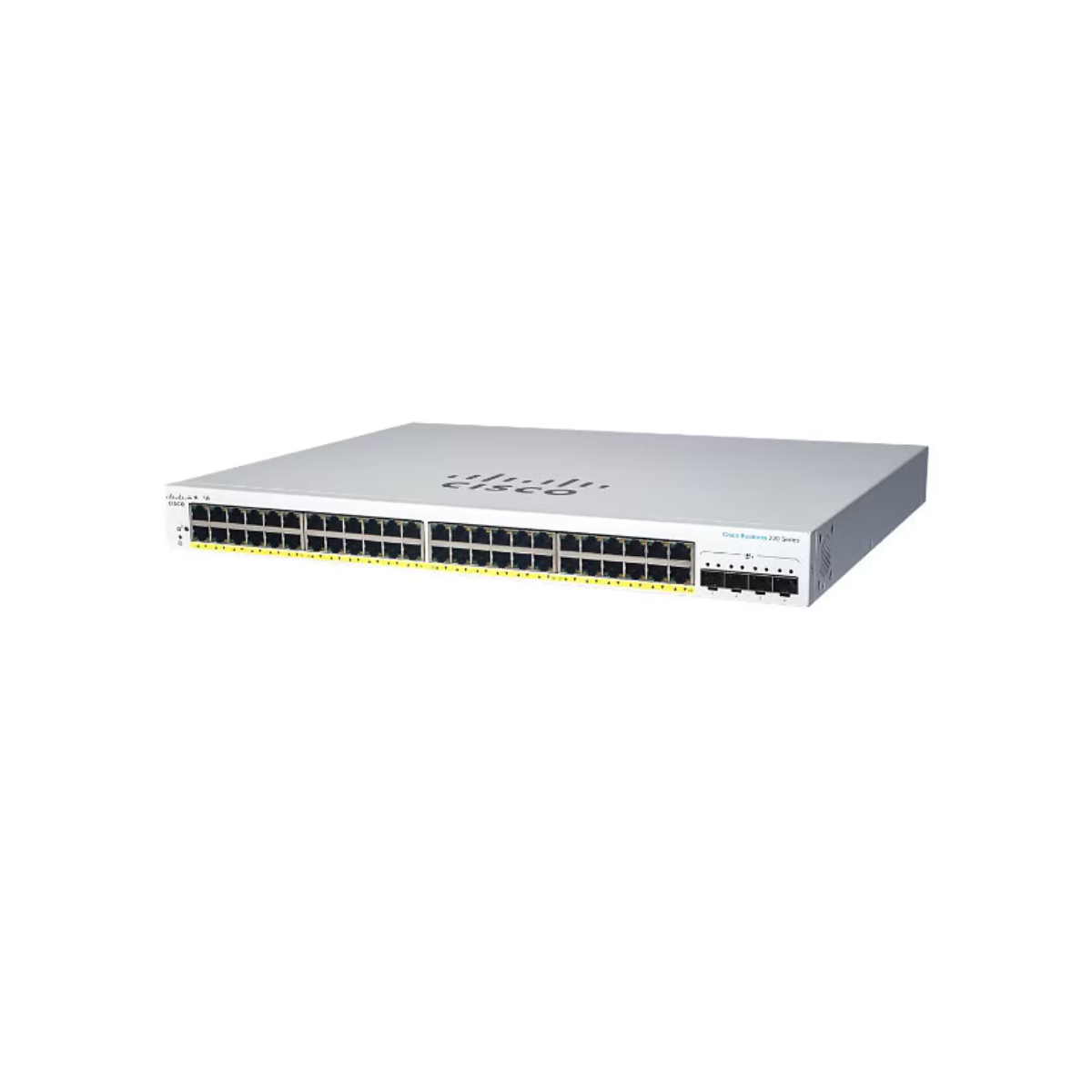

CBS220-48T-4G-NA – Cisco Business 220 48-Port Gigabit Smart Switch with 4 Gigabit SFP Uplinks

BRAND NEW WITH FULL CISCO WARRANTY!!!

overview

The CBS220-48T-4G-NA Cisco Business 220 Series 48-Port Gigabit Smart Switch with 4 Gigabit SFP Uplinks is designed for small and medium-sized businesses that need dependable wired connectivity, practical network management, and room for network expansion. It provides 48 Gigabit Ethernet ports for connecting workstations, printers, servers, and other network devices, alongside four Gigabit SFP uplinks for fiber-optic connectivity to compatible network infrastructure.

With a 104 Gbps switching capacity and forwarding performance of up to 74.38 million packets per second, the CBS220-48T-4G-NA supports business workloads that require consistent Gigabit Ethernet performance. Its smart-switch functionality includes VLAN configuration, Quality of Service (QoS), link aggregation, access control lists, and spanning-tree protocols to help administrators segment traffic and improve network reliability.

Designed for rack-mounted deployment, this Cisco Business 220 switch combines a compact 1U chassis with an internal power supply and web-based management capabilities. It is a practical option for office wiring closets, departmental networks, retail locations, and small-business infrastructure that requires more control than an unmanaged switch without the complexity of a larger enterprise switching platform.

Key Features – CBS220-48T-4G-NA

• Memory: 256 MB RAM and 64 MB flash memory.
• Storage: 64 MB flash memory for device software and system functions; no user-data storage.
• Controller: Integrated Ethernet switching architecture with smart-switch management capabilities.
• Networking / Ports: 48 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports and 4 × Gigabit SFP uplink ports.
• Power & Cooling: Internal AC power supply; one cooling fan listed by CDW.
• Management: Web-based interface, command-line interface (CLI), SNMP, SSH, HTTPS, and Cisco Business mobile app support.
• Security: Access control lists (ACLs), IEEE 802.1X authentication, port security, RADIUS, TACACS+, and secure management protocols.
• Switching Capacity: 104 Gbps.
• Forwarding Performance: 74.38 Mpps with 64-byte packets.
• Form Factor: Rack-mountable 1U switch with mounting kit included.
• Power over Ethernet (PoE): Not supported on the CBS220-48T-4G-NA model.

Technical Specifications

• Chipset / Platform: Cisco Business 220 Series smart-switch platform.
• Memory Technology: 256 MB RAM and 64 MB flash memory.
• Storage Interface: Internal flash memory; no user-accessible storage interface specified.
• RAID Support: Not applicable.
• Expansion Slots: No general-purpose expansion slots specified; four dedicated Gigabit SFP uplink interfaces are provided.
• Networking: 48 × 10/100/1000BASE-T Ethernet ports and 4 × 1000BASE-X SFP uplinks.
• Switching Capacity: 104 Gbps.
• Forwarding Rate: 74.38 Mpps.
• MAC Address Table: 8,192 entries.
• VLAN Support: Up to 256 VLANs.
• Link Aggregation: IEEE 802.3ad Link Aggregation Control Protocol (LACP).
• Spanning Tree: STP, RSTP, and MSTP; up to 16 MSTP instances.
• Jumbo Frames: Up to 9,216 bytes.
• I/O Ports: 48 × RJ-45 Ethernet and 4 × Gigabit SFP.
• Management Protocols: SNMP v1/v2c/v3, HTTP/HTTPS, SSH, Telnet, RMON, SCP, TFTP, and supported discovery protocols.
• Operating System Compatibility: Network switch management is performed through supported management interfaces; no host operating system is required for switching functionality.
• Power Input: 100–240 V AC, 50/60 Hz.
• Power Consumption: CDW lists 36.5 W operational power consumption.

Physical Specifications

• Form Factor: Rack-mountable, 1U.
• Weight:
  • 3.18 kg.
  • 7.01 lbs.
• Dimensions:
  • 440 × 257 × 44 mm (W × D × H).
  • 17.3 × 10.1 × 1.7 inches (W × D × H).
• Rack Compatibility: Standard 19-inch equipment racks; rack-mounting kit included.

Ideal For

• Small and Medium-Sized Businesses: Connecting employee workstations, printers, and shared network resources.
• Office Network Infrastructure: Providing high-density Gigabit Ethernet connectivity in wiring closets and departmental network cabinets.
• Retail and Branch Locations: Supporting point-of-sale systems, office computers, and other wired business devices.
• Network Segmentation: Separating departments or services through VLANs and applying traffic prioritization with QoS.
• Fiber Uplink Connectivity: Connecting to compatible fiber infrastructure through the four Gigabit SFP interfaces.
• Growing Business Networks: Expanding port capacity while maintaining manageable Layer 2 networking features.

Warranty & Support

• Standard Manufacturer Warranty: Three-year limited hardware warranty with return-to-factory replacement, according to Cisco's Business 220 Series warranty documentation.
• Technical Support: Cisco Business Small Business Support Center phone or online chat support is included for one year under the documented warranty offering.
• Software Updates: Software updates are covered during the applicable warranty term, subject to Cisco's warranty conditions.
• Support Contract Compatibility: Cisco support eligibility depends on the product, region, and available service offerings. Cisco SMARTnet or other Cisco service coverage should be confirmed with an authorized Cisco partner. Dell ProSupport and HPE Care Pack are not applicable manufacturer support programs for this switch.

FAQs – CBS220-48T-4G-NA

1. Can the CBS220-48T-4G-NA support a growing office network?

Yes. It provides 48 Gigabit Ethernet access ports and four Gigabit SFP uplinks, making it suitable for connecting many wired endpoints and linking the switch to compatible upstream network equipment.

2. Is the CBS220-48T-4G-NA a managed or unmanaged switch?

It is a smart switch. It provides configuration and monitoring capabilities, including VLANs, QoS, link aggregation, and access control lists, without the complexity of a full enterprise Layer 3 switching platform.

3. Does this switch support Power over Ethernet (PoE)?

No. The CBS220-48T-4G-NA is a non-PoE model. Devices such as access points and IP phones that require PoE need separate compatible power injectors or a PoE-capable switch.

4. Can the switch connect to fiber-optic networks?

Yes. It includes four Gigabit SFP uplink ports. Compatible SFP transceivers and fiber cabling must be selected according to the required fiber type, distance, and network equipment.

5. Does the CBS220-48T-4G-NA support redundant power supplies?

The model has an internal power supply. A second, built-in redundant power supply is not specified, so deployments requiring power redundancy should use an appropriate external power-resilience design.

6. Is this switch suitable for a server room or network rack?

Yes. Its 1U rack-mountable form factor and 48 Gigabit Ethernet ports make it suitable for office wiring closets, server rooms, and small-business network racks. Ensure the installation provides suitable ventilation and access to AC power.
