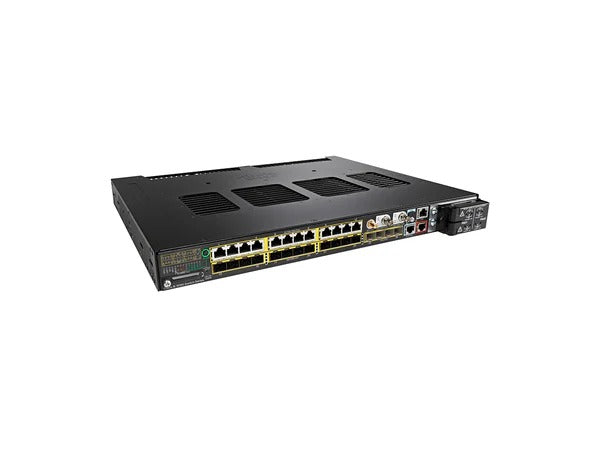

IE-5000-16S12P Cisco Industrial Ethernet 5000 Managed Switch

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER'S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The IE-5000-16S12P is a high-performance Cisco Industrial Ethernet 5000 Series managed switch designed for aggregation and access roles in harsh industrial environments. It combines fiber and PoE+ copper connectivity to support large-scale industrial networks that demand high availability, advanced routing, and secure operations.

Built for rack-mounted industrial deployments, this switch delivers line-rate Layer 2 and Layer 3 performance using Cisco IOS Software. It supports resilient architectures, redundant power, and advanced routing protocols required for mission-critical IT and OT convergence.

Key Features

• Industrial-grade managed switch designed for harsh and mission-critical environments
• Sixteen Gigabit SFP fiber ports for high-speed aggregation and backbone connectivity
• Twelve Gigabit Ethernet PoE+ ports for powering industrial endpoints
• Rack-mountable form factor with redundant power supply support
• Cisco IOS Software-based Layer 2 and Layer 3 routing capabilities
• Built for continuous operation with high availability and resiliency

Technical Specifications

• Manufacturer: Cisco Systems
• Brand: Cisco
• Model: IE-5000-16S12P
• Product Type: Managed Industrial Ethernet Switch
• Subcategory: Network Hubs and Switches
• Packaged Quantity: 1 Unit
• Form Factor: Rack-mountable
• Manageable: Yes
• Memory:
  • Flash: 256 MB
  • RAM: 1 GB
• Ports & Interfaces:
  • 16 × Gigabit SFP ports
  • 12 × 10/100/1000Base-T RJ-45 (PoE+)
  • 4 × SFP uplink ports
  • Console RJ-45
  • Mini-USB Type B
• Power:
  • Power Consumption (Operational): 90 W
  • Redundant Power Supply: Supported (1+1)
• Switching & Routing:
  • Switching Type: Gigabit Ethernet
  • Routing Protocols: BGP, OSPF, IS-IS, EIGRP, RIP, Static IPv4, HSRP, PIM
  • MAC Address Table Size: 16K entries
• Management & Security:
  • Remote Management: CLI, HTTP, RMON, SCP, SNMP v1/v2/v3, SSH, Telnet, TFTP
  • Authentication: RADIUS, TACACS+, Secure Shell
• Capacity:
  • VLANs: Up to 1005
  • IGMP Groups: Up to 1000
  • NAT Entries: 128
• Environmental Specifications:
  • Operating Temperature: -40°F to 165.2°F
  • Storage Temperature: -40°F to 185°F
  • Operating Humidity: 5–95% non-condensing
  • MTBF: 390,190 hours
• Software: Cisco IOS LAN Base
• Built-in Devices: SD card reader

Use Cases

We can see the IE-5000-16S12P in industrial Ethernet networks supporting factory automation, utilities, oil and gas facilities, transportation infrastructure, substations, and large-scale industrial aggregation layers. It provides secure fiber aggregation and PoE+ access for critical industrial devices.

Why Choose IE-5000-16S12P

• Combines high-density fiber aggregation with PoE+ access ports
• Supports advanced Layer 3 routing for complex industrial networks
• Designed for rack-mounted, high-availability industrial deployments
• Enables secure IT and OT convergence using Cisco IOS Software
• Trusted Cisco industrial platform with a full manufacturer's warranty

FAQs

What is the IE-5000-16S12P used for?

The IE-5000-16S12P is used as an industrial aggregation and access switch, delivering fiber connectivity and PoE+ power for large-scale industrial networks that require advanced routing and high availability.

Does the IE-5000-16S12P support Power over Ethernet?

Yes. It includes 12 PoE+ Gigabit Ethernet ports, enabling it to power and connect industrial devices such as cameras, access points, and controllers.

Is the IE-5000-16S12P suitable for harsh industrial environments?

Yes. It is designed for extreme temperatures, continuous operation, and rugged industrial conditions commonly found in utilities, factories, and energy infrastructure.

Does this switch support advanced routing protocols?

Yes. It supports enterprise and industrial routing protocols, including BGP, OSPF, IS-IS, EIGRP, and static routing for complex network topologies.

Does the IE-5000-16S12P include Cisco warranty coverage?

Yes. The product is brand new, factory-sealed, and includes a full Cisco manufacturer's warranty when purchased from Chicago Computer Supply.
