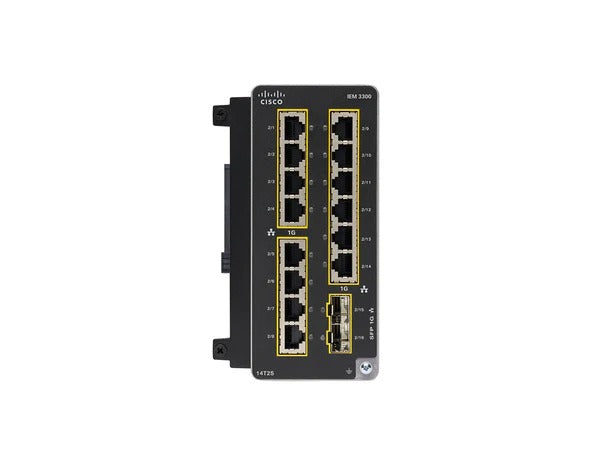

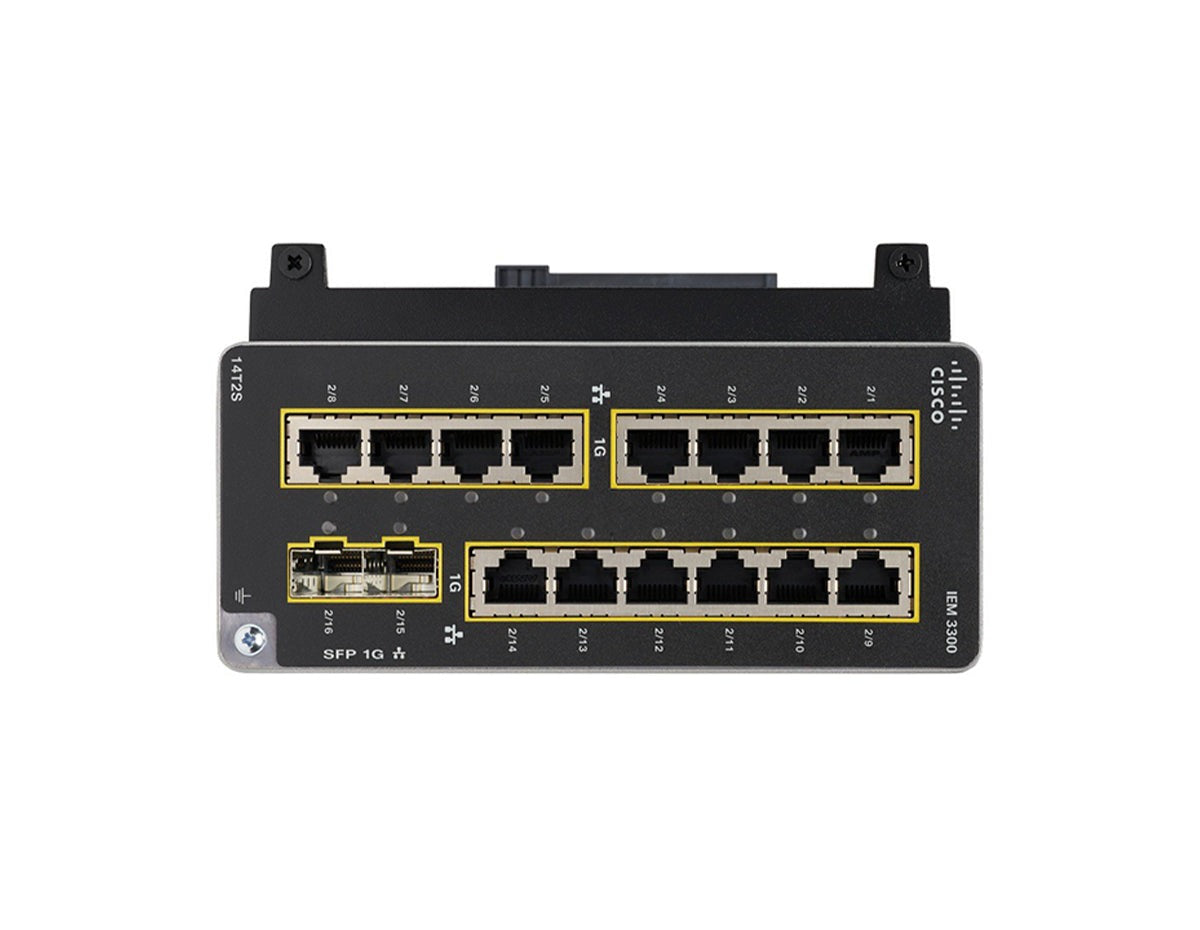

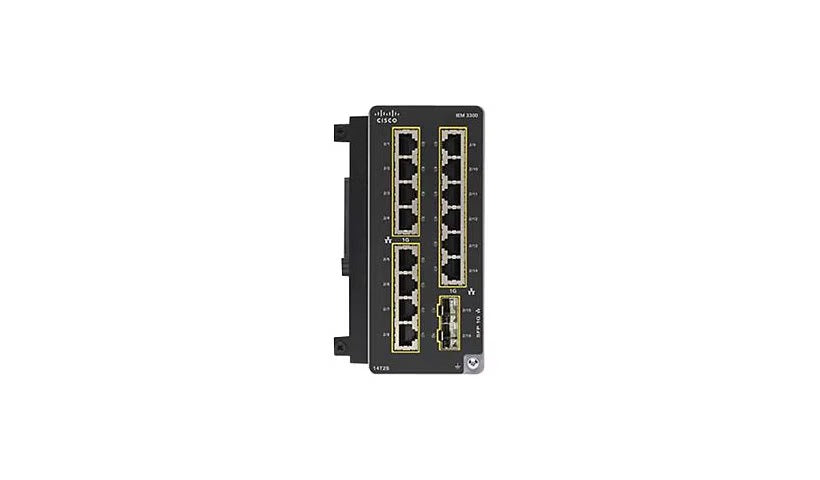

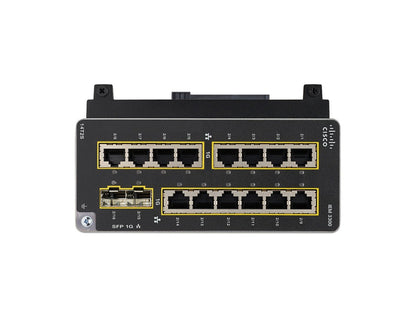

IEM-3300-14T2S Cisco Catalyst IE3300 Expansion Module

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER'S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The Cisco IEM-3300-14T2S is a rugged Cisco Catalyst expansion module designed to increase both copper and fiber connectivity on Cisco IE3300 Series industrial switches. It adds 14 Gigabit Ethernet copper ports and 2 SFP fiber ports, enabling flexible mixed-media networking in demanding industrial environments.

Built for extended enterprise and harsh industrial deployments, this module integrates seamlessly with IE3300 switches. It supports scalable network growth where a combination of short-range copper and long-distance fiber connections is required.

Key Features

• Adds fourteen Gigabit Ethernet copper ports and two SFP fiber ports
• Supports 10/100/1000Base-T and Gigabit SFP connectivity
• Enables mixed-media network expansion on Cisco IE3300 Series switches
• Rugged industrial design for harsh and continuous operating environments
• DIN rail mountable form factor for industrial cabinets and control panels

Technical Specifications

• Manufacturer: Cisco
• Product Line: Cisco Catalyst
• Model: IEM-3300-14T2S
• Product Type: Expansion Module
• Subcategory: Network Switch Expansion Modules
• Packaged Quantity: 1 Unit
• Form Factor: DIN rail mountable
• Connectivity Technology: Wired
• Ports & Interfaces:
  • 14 × 10/100/1000Base-T RJ-45
  • 2 × SFP (mini-GBIC)
• Data Link Protocol: Gigabit Ethernet
• Operational Power Consumption: 15 W
• Dimensions:
  • Width: 3.4 in
  • Depth: 5.3 in
  • Height: 6 in
• Weight: 32.94 oz
• Color Category: Black
• MTBF: 1,865,300 hours
• Compatibility: Cisco Catalyst IE3300 Rugged Series Switches
• UPC: 889728205047

Use Cases

The IEM-3300-14T2S is used to expand Ethernet connectivity in industrial networks supporting factory automation, utilities, transportation systems, and extended enterprise environments. It enables flexible deployment using both copper and fiber connections without replacing the base switch.

Why Choose IEM-3300-14T2S

• Expands Gigabit Ethernet capacity with both copper and fiber ports
• Supports mixed-media networking for flexible industrial deployments
• Designed for rugged, long-term industrial operation
• Enables scalable network growth with minimal infrastructure changes
• Trusted Cisco expansion module with full manufacturer warranty

FAQs

What is the IEM-3300-14T2S used for?

The IEM-3300-14T2S is used to expand Ethernet connectivity on Cisco IE3300 Series switches by adding 14 copper Gigabit ports and two fiber SFP ports for industrial networks.

Which switches are compatible with the IEM-3300-14T2S?

This expansion module is compatible with Cisco Catalyst IE3300 Rugged Series switches, allowing seamless mixed-media expansion without replacing the existing switch.

Does the IEM-3300-14T2S support fiber connectivity?

Yes. It includes two SFP ports that support Gigabit Ethernet fiber connections for longer-distance, interference-resistant networking.

Is the IEM-3300-14T2S suitable for harsh industrial environments?

Yes. It is designed for industrial-grade operation and supports reliable performance in factories, utilities, transportation systems, and other demanding environments.

Does the IEM-3300-14T2S include Cisco warranty coverage?

Yes. The product is brand new, factory-sealed, and includes a full Cisco manufacturer's warranty when purchased from Chicago Computer Supply.
