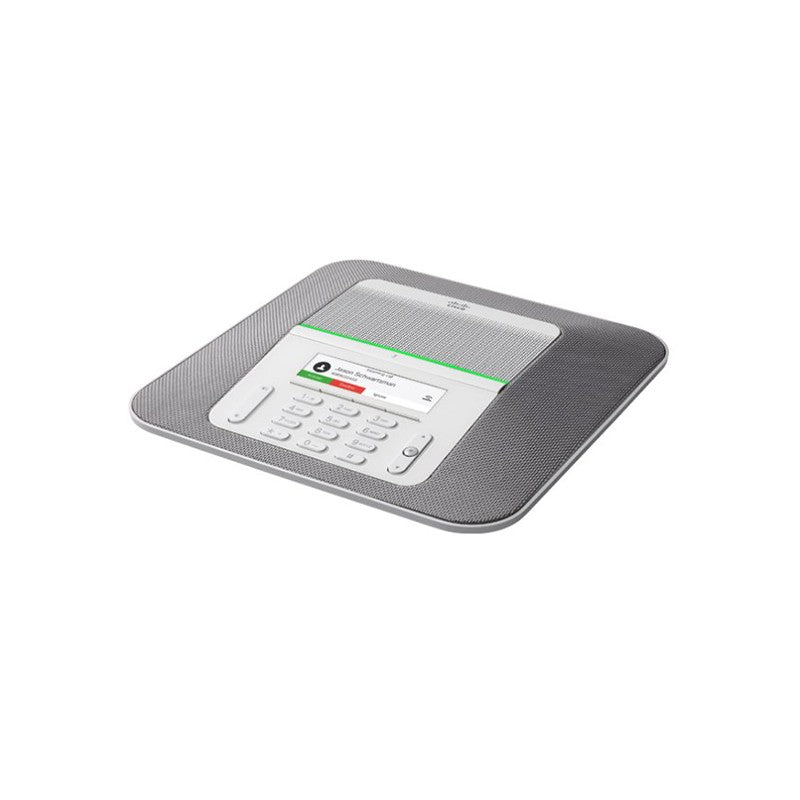

Cisco IP Conference Phone 8832 Base - White - Refurbished CP-8832-EU-W-K9-RF

The Cisco IP Conference Phone 8832 enhances people-centric collaboration by delivering easy-to-use audio conferencing with astounding voice quality and clarity. Newly developed microphones and loudspeakers provide the richest sound of any conference phone on the market. Our unique acoustic design includes a “studio-monitor” full-range speaker. This loudspeaker architecture provides a dynamic, detailed sound with low distortion and low-frequency clarity, making conferencing an in-person experience with exceptionally clear and natural audio quality.

The Cisco IP Conference Phone 8832 provides a simple, flexible, scalable solution that meets the challenges of the most diverse rooms. With the base unit alone, it provides 360-degree coverage for any 20x20-foot room and up to 10 participants. With the optional wired extension microphone kit, it covers any 20x34-foot room and up to 22 participants. With the optional wireless extension microphone kit (using Digital Enhanced Cordless Telecommunications [DECT] technology), it covers any 20x40-foot room and up to 26 participants. With a daisy-chain configuration of two 8832 units along with the optional wireless extension microphone kit, it covers up to a 20x57-foot room and up to 42 participants. It is ideal for executive offices, conference rooms, and boardrooms.

• Graphical display: 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal
• Ethernet switch: 10/100 BASE-T via an Ethernet injector
• The phone has the following keys:
• Four context-sensitive soft key bars
• Two-way navigation bar and select button ?
• Standard keypad
• Volume-control bar
• Large mute key for ease of access
• IEEE PoE: IEEE PoE Class 3; compatible with both IEEE 802.3af and 802.3at switch blades; supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet?(LLDP-PoE)
• Call control support: Native support in Cisco Unified Communications Manager 12.0(1); DevPack required for Cisco Unified Communications Manager 10.5.2, 11.0, and 11.5

Audio
• G.711 a-law and mu-law, wideband (G.722), G.729a, G.729ab, Internet Low Bitrate Codec (iLBC), OPUS
• Automatic Gain Control
• Comfort Noise Generation
• Silence Suppression/Voice Activity Detection
• Echo Suppression
• Dynamic Noise Reduction

Acoustics
• Frequency: Speaker, 100 Hz to 20 kHz; microphones, 100 Hz to 12 kHz, ±3 dB
• Max adjustable volume: 89 dB within 0.5 m

Call features
• + Dialing
• Adjustable ring tones and volume levels
• Barge
• Call forward
• Call history lists
• Call park
• Call timer
• Call waiting
• Caller ID
• Corporate directory
• Conference
• Hold
• Music on Hold (MoH)
• Mute
• Predialing before sending
• Redial
• Shared line
• Speed dial (Favorites)
• Time and date display
• Transfer
• Voicemail (messages)

Network features
• Session Initiation Protocol (SIP) for signaling
• Session Description Protocol (SDP)
• IPv4
• IPv6
• User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol streams)
• Dynamic Host Configuration Protocol (DHCP) client or static configuration
• Gratuitous Address Resolution Protocol (GARP)
• Domain Name System (DNS)
• Trivial File Transfer Protocol (TFTP)
• Secure HTTP (HTTPS)
• VLAN
• Real-Time Transport Protocol (RTP)
• Real-Time Control Protocol (RTCP)
• Cisco Discovery Protocol
• LLDP (including LLDP-MED)
• Switch speed auto-negotiation

Security features
• Secure credential storage
• Image authentication
• Random bit generation
• Manufacturer-Installed Certificates (MICs )
• Secure boot
• SHA-256 enabled for advanced security features
• Ethernet 802.1X supplicant options: Extensible Authentication Protocol – Flexible Authentication via Secure
Tunneling (EAP-FAST) and Extensible Authentication Protocol – Transport Layer Security (EAP-TLS)
• Signaling authentication and encryption using TLS v1.2
• Media authentication and encryption using SRTP
• HTTPS for client and server
• Secure Shell (SSH) Protocol server

• Physical dimensions (H x W x D): 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm)
• Weight: 4.07 lb (1.85 kg)
• Phone-casing composition: Acrylonitrile Butadiene Styrene (ABS) textured plastic; Cisco cosmetic class A
• Operational temperature: 32° to 104°F (0° to 40°C)
• Nonoperational temperature shock: 14° to 140°F (–10° to 60°C)
• Humidity: Operating 10% to 90%, noncondensing, Nonoperating 10% to 95%, noncondensing
