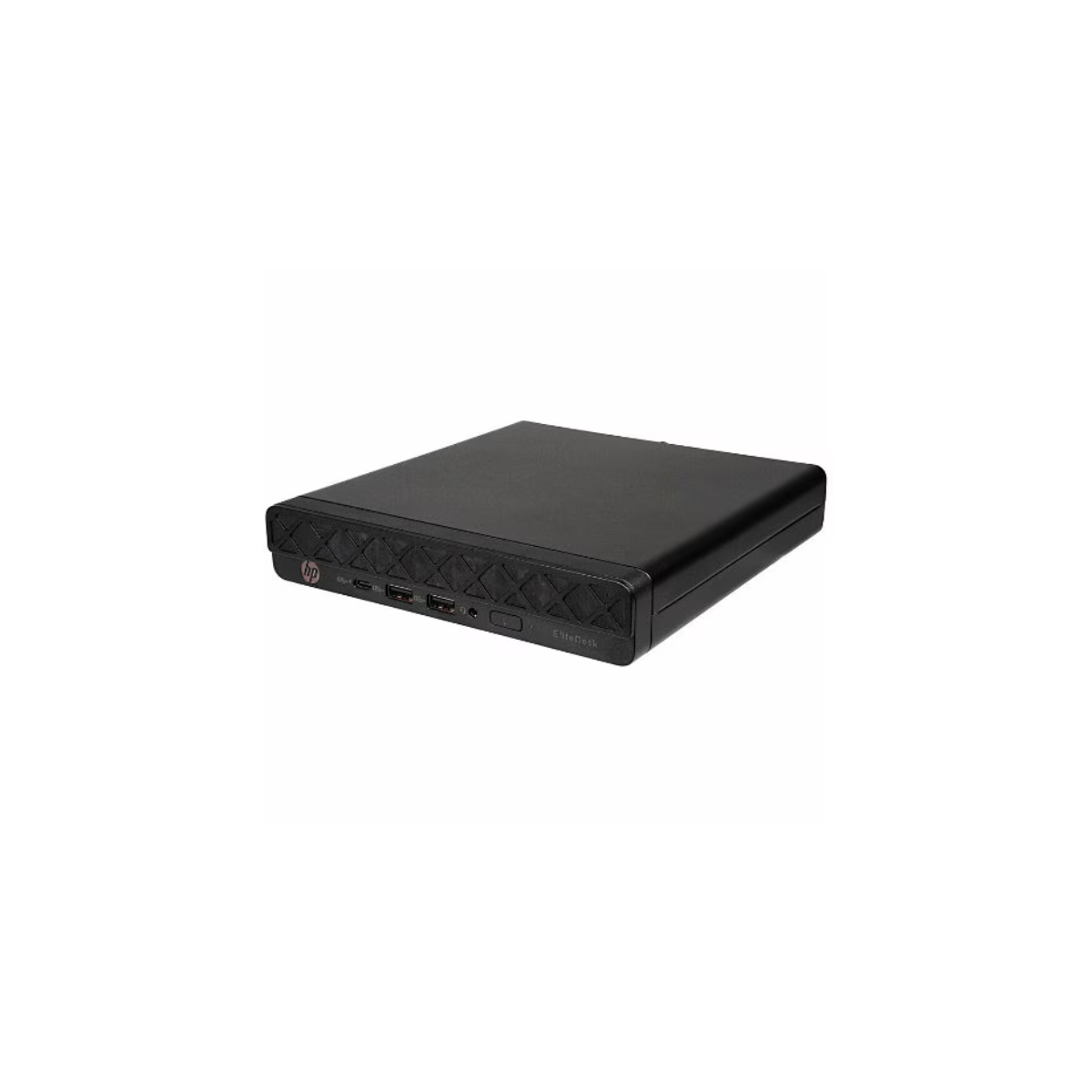

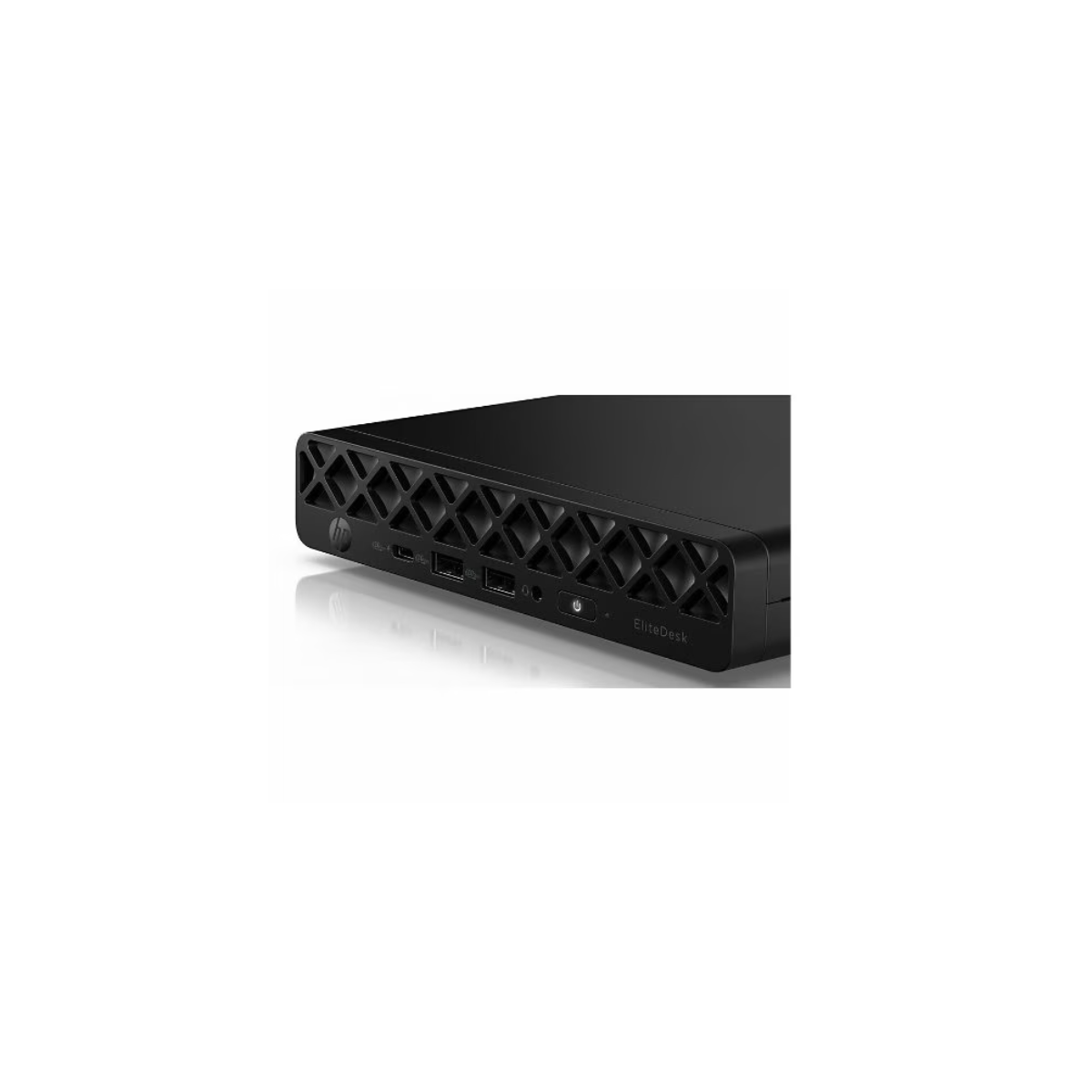

CP3M1AT#ABA HP EliteDesk 8 Mini G1a Desktop PC

BRAND NEW WITH FULL HP WARRANTY!!!

Overview

CP3M1AT#ABA HP EliteDesk 8 Mini G1a Desktop PC is a compact enterprise desktop built around the AMD Ryzen 5 220 processor, 16GB of DDR5-5600 memory and a 512GB PCIe NVMe SSD. The six-core, 12-thread processor operates at 3.2 GHz and can boost up to 4.9 GHz, while integrated AMD Radeon 740M Graphics handles standard business graphics and multi-display workloads.

The system uses a compact 1-liter Mini form factor, making it suitable for organizations that need capable desktop computing while minimizing workspace requirements. Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.4, USB4, HDMI 2.1 and dual DisplayPort 2.1 provide connectivity for modern business peripherals and displays. The platform also supports memory and storage expansion, making it appropriate for corporate workstations, branch offices, education and other managed desktop environments.

Key Features – CP3M1AT#ABA HP EliteDesk 8 Mini G1a

• Processor: AMD Ryzen 5 220, 6 cores / 12 threads, 3.2 GHz base, up to 4.9 GHz boost
• Memory: 16GB DDR5-5600, 1 × 16GB
• Storage: 512GB PCIe NVMe M.2 SSD
• Controller: AMD-based EliteDesk 8 G1a platform
• Graphics: Integrated AMD Radeon 740M Graphics
• Networking / Ports:
  • 1 × Gigabit Ethernet
  • Wi-Fi 6, 2×2
  • Bluetooth 5.4
  • 1 × USB4 40Gbps
  • 1 × USB-C 10Gbps
  • 4 × USB-A 10Gbps
  • 2 × DisplayPort 2.1
  • 1 × HDMI 2.1
• Power & Cooling: 90W external AC power adapter
• Management: HP commercial PC management and deployment capabilities
• Security: HP Wolf Security features, TPM, Kensington security slot and tool-less chassis access
• Form Factor: Mini / 1-liter desktop PC

Technical Specifications

• Processor Type: AMD Ryzen 5 220
• Processor Cores / Threads: 6 cores / 12 threads
• Base Frequency: 3.2 GHz
• Maximum Boost Frequency: Up to 4.9 GHz
• L3 Cache: 16MB
• Chipset / Platform: AMD EliteDesk 8 G1a platform
• Memory Technology: DDR5 SDRAM
• Installed Memory: 16GB
• Memory Configuration: 1 × 16GB
• Memory Slots: 2 × SODIMM
• Maximum Supported Memory: 64GB
• Memory Speed: 5600 MT/s
• Storage Interface: PCIe NVMe
• Installed Storage: 512GB M.2 NVMe SSD
• Storage Expansion: 2 × M.2 2280 storage slots, with one available on the specified configuration
• RAID Support: Not specified for this exact SKU
• Expansion Slots: 1 × M.2 2230 WLAN slot; 2 × M.2 2280 storage slots
• Networking: Realtek RTL8111EPP Gigabit Ethernet; Realtek Wi-Fi 6 2×2; Bluetooth 5.4
• I/O Ports:
  • 1 × USB-C USB4 40Gbps with 100W USB Power Delivery
  • 1 × USB-C 10Gbps
  • 4 × USB-A 10Gbps
  • 2 × DisplayPort 2.1
  • 1 × HDMI 2.1
  • 1 × RJ-45 Gigabit Ethernet
  • 1 × universal 3.5mm audio jack
  • 2 × external antenna connectors
  • 1 × power connector
• Operating System Compatibility: Windows 11 Pro
• Audio: Realtek ALC3252 codec with universal audio jack
• Wireless: Realtek Wi-Fi 6 RTL8852BE-VT 802.11a/b/g/n/ax 2×2 and Bluetooth 5.4

Physical Specifications

• Form Factor: Mini PC / 1-liter desktop
• Weight:
  • 1.42 kg
  • 3.13 lbs
• Dimensions:
  • 177 × 181 × 34.2 mm (W × D × H)
  • 6.97 × 7.13 × 1.35 inches (W × D × H)
• Rack Compatibility: Not rack-mountable; designed for desktop or compatible mounting solutions
• Color: Jack Black
• Operating Temperature: 5°C to 35°C
• Relative Humidity: 5% to 90%, non-condensing

Ideal For

• Corporate office workstations
• Enterprise desktop deployments
• Branch-office computing
• Administrative and productivity workloads
• Education and institutional environments
• Reception and front-desk workstations
• Space-constrained office installations
• Multi-display business workstations
• Managed endpoint deployments
• Organizations requiring compact PCs with upgradeable memory and storage

Warranty & Support

• Standard Manufacturer Warranty: 1-year limited warranty is listed for the CP3M1AT#ABA configuration; retailer listings may include different service packages or extended coverage.
• Support Contract Compatibility: HP Care Pack services can be added for extended coverage and onsite support. HP also offers longer-term onsite support options for compatible EliteDesk configurations.
• Included Accessories: HP 125 v2 wired keyboard, HP 125 wired mouse and 90W power adapter are listed with this configuration.

FAQs – CP3M1AT#ABA HP EliteDesk 8 Mini G1a

1. Can the 16GB RAM be upgraded?
Yes. The system has two SODIMM slots and supports up to 64GB DDR5 memory. The supplied configuration uses one 16GB module, leaving one memory slot available.

2. Can the 512GB SSD be expanded?
Yes. The EliteDesk 8 Mini G1a platform provides two M.2 2280 storage slots, providing an expansion path beyond the installed 512GB NVMe SSD.

3. Does the CP3M1AT#ABA support multiple monitors?
Yes. The system provides two DisplayPort 2.1 outputs and one HDMI 2.1 output, allowing multiple compatible displays to be connected.

4. Does this configuration include Wi-Fi?
Yes. The CP3M1AT#ABA includes Realtek Wi-Fi 6 2×2 and Bluetooth 5.4, in addition to its Gigabit Ethernet connection.

5. Does the EliteDesk 8 Mini G1a have PCIe expansion slots?
No conventional PCIe expansion slot is specified for this Mini configuration. Expansion is provided through the system's M.2 2230 WLAN slot and M.2 2280 storage slots.

6. Is the CP3M1AT#ABA suitable for rack deployment?
No. It is a 1-liter Mini desktop PC, not a 1U or 2U rack server. Its compact 177 × 181 × 34.2 mm chassis is intended for desktop or compatible mounting installations.
