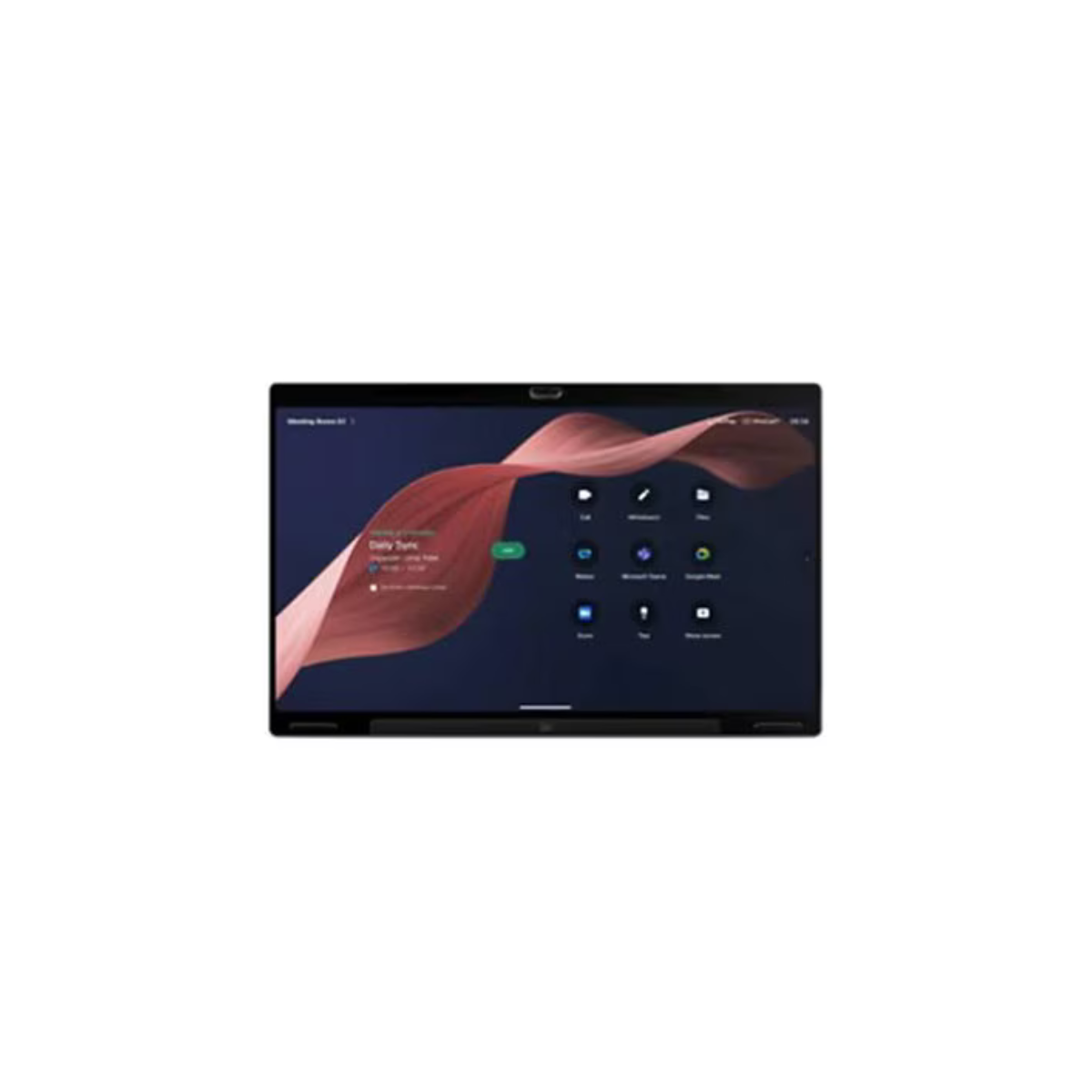

CS-BRDP55-G3-K9 Cisco Webex Board Pro 55 G3

BRAND NEW WITH FULL CISCO WARRANTY!!!

Overview

CS-BRDP55-G3-K9 Cisco Webex Board Pro 55 G3 is an all-in-one collaboration and video conferencing system designed to provide a complete interactive meeting-room experience. It combines a 55-inch 4K UHD multi-touch display, dual 48MP camera sensors, a 14-element beamforming microphone array, integrated multi-channel speakers, and Cisco's AI-powered collaboration engine in a single room device. Cisco positions the Board Pro G3 for hybrid meetings, collaborative work, training rooms, huddle spaces, and flexible meeting environments.

The Board Pro 55 G3 supports Webex, Microsoft Teams Rooms, Zoom for Cisco Rooms, H.323, SIP, WebRTC, and USB-C BYOD, allowing organizations to integrate the device into different collaboration environments. Its connectivity includes Gigabit Ethernet, Wi-Fi 6/6E, USB-C DisplayPort, HDMI, PoE for Cisco Room Navigator, and external-camera connectivity. The large interactive display and integrated audio/video hardware reduce the number of separate components required in a conference room deployment.

Key Features – CS-BRDP55-G3-K9 Cisco Webex Board Pro 55 G3

• Processor: Integrated AI-powered computing engine
• Memory: Not publicly specified by Cisco for this SKU
• Storage: Not publicly specified by Cisco for this SKU
• Controller: Integrated Cisco RoomOS collaboration platform
• Display: 55-inch 4K UHD LCD, 3840 × 2160 resolution
• Cameras: Dual 48MP integrated camera system
• Audio: 14-element beamforming microphone array with integrated multi-channel speakers and woofers
• Networking / Ports:
  • 1 × 10/100/1000 Mbps Ethernet LAN
  • 1 × 10/100/1000 Mbps Ethernet PoE port
  • 1 × 10/100/1000 Mbps external-camera control port
  • Wi-Fi 6/6E
  • USB-C DisplayPort Alternate Mode
  • HDMI 2.0 input
  • HDMI 2.0 output
  • 2 × analog microphone inputs
• Power & Cooling: 100–240V AC, 50/60Hz; 12W typical networked standby
• Management: Cisco RoomOS, Webex Control Hub, Cisco Unified Communications Manager, Cisco Expressway
• Security: IPv4/IPv6, TLS inspection proxy support, HDCP, Cisco Discovery Protocol, enterprise network-security capabilities
• Form Factor: 55-inch all-in-one interactive collaboration board

Technical Specifications

• Processor Type: Integrated collaboration/AI computing platform
• Chipset / Platform: Cisco Board Pro G3 / Cisco RoomOS
• Memory Technology: Not specified by Cisco
• Storage Interface: Not applicable / not specified for this appliance
• RAID Support: Not applicable
• Expansion Slots: No conventional PCIe expansion slots
• Display:
  • 55-inch LCD
  • 3840 × 2160 4K UHD
  • 16:9 aspect ratio
  • 350 cd/m² typical brightness
  • 1:1200 contrast ratio
• Camera System:
  • 2 × 48MP image sensors
  • Main camera: 70° horizontal / 55° vertical field of view
  • Wide camera: 112° horizontal / 94° vertical field of view
• Audio:
  • 14-element beamforming microphone array
  • Microphone pickup optimized for up to 4 m / 13 ft
  • Integrated multi-channel loudspeaker system
  • Separate force-cancelling woofers
  • 75 Hz–20 kHz speaker frequency response
• Networking:
  • 1 × Gigabit Ethernet LAN
  • 1 × Gigabit Ethernet PoE 802.3af
  • 1 × Gigabit Ethernet external-camera control
  • Wi-Fi 6/6E, 2.4/5/6 GHz
  • 2×2 MIMO
• Video Inputs:
  • USB-C DisplayPort Alternate Mode up to 3840 × 2160p60
  • HDMI 2.0 Type A up to 3840 × 2160p30
  • Video over IP
  • RTSP streaming
• Video Output:
  • 1 × HDMI 2.0 Type A up to 3840 × 2160p60
• I/O Ports:
  • 3 × RJ-45 Ethernet ports
  • USB-C video input
  • HDMI input
  • HDMI output
  • 2 × analog microphone inputs
• Operating System Compatibility: Cisco RoomOS; Microsoft Teams Rooms on Android
• Supported Platforms: Webex, Microsoft Teams Rooms, Zoom for Cisco Rooms, H.323, SIP, WebRTC and BYOD through USB-C passthrough
• Minimum Software: RoomOS June or RoomOS 26.7.2 or later

Physical Specifications

• Form Factor: 55-inch integrated collaboration board
• Weight:
  • 40.5 kg — board only
  • 89.29 lbs — board only
• Dimensions:
  • Cisco's current Board Pro G3 datasheet does not publish the assembled main-unit dimensions as numerical values; it directs customers to the dedicated Cisco Board Pro G3 CAD drawings for those measurements.
  • Main-unit package: 1508 × 242 × 1000 mm
  • Main-unit package: 59.37 × 9.53 × 39.37 inches
• Rack Compatibility: Not rack-mountable; designed for wall-mount, wall-stand, floor-stand, or wheel-based room deployment
• Optional Mounting: Wall mount, wall stand, floor stand, and wheel upgrade kit

Important physical-spec validation: The 1508 × 242 × 1000 mm figure is the package size, not the assembled Board Pro 55 G3 itself. Cisco explicitly separates package dimensions from assembled dimensions and directs users to the G3 CAD drawings for the latter. I have not substituted the package dimensions as the product dimensions because that would be inaccurate.

Ideal For

• Corporate conference rooms
• Hybrid meeting rooms
• Small and medium meeting spaces
• Training and education rooms
• Huddle and collaboration spaces
• Executive meeting rooms
• Microsoft Teams Rooms deployments
• Webex-based collaboration environments
• BYOD presentation and collaboration environments
• Organizations standardizing interactive video collaboration hardware

Warranty & Support

• Standard Manufacturer Warranty: 1-year limited liability warranty
• Cloud Management: Cisco Webex Control Hub and related Cisco cloud-management capabilities
• On-Premises Management / Registration: Cisco Unified Communications Manager 15 SU5 or later and Cisco Expressway
• Support Contract Compatibility: Cisco support and service options can be purchased according to the applicable Cisco service contract and deployment requirements.

FAQs – CS-BRDP55-G3-K9 Cisco Webex Board Pro 55 G3

1. What type of rooms is the CS-BRDP55-G3-K9 designed for?
The Board Pro 55 G3 is designed for small and medium meeting rooms, training rooms, huddle spaces, and flexible collaboration environments where integrated video, audio, display, and interactive capabilities are required.

2. Does the Board Pro 55 G3 support Microsoft Teams Rooms?
Yes. Cisco lists Microsoft Teams Rooms on Android as a supported platform, alongside Webex and Zoom for Cisco Rooms.

3. Can users connect a laptop directly to the Board Pro G3?
Yes. The device supports USB-C DisplayPort Alternate Mode up to 4Kp60 and an HDMI 2.0 input for wired content presentation. USB-C passthrough also supports BYOD workflows.

4. Can the microphone system cover an entire conference room?
The integrated 14-element beamforming microphone array is optimized for pickup from up to 4 meters / 13 feet from the device. Larger rooms can use supported external Cisco conferencing microphone options.

5. Does the Board Pro 55 G3 require a separate Cisco Room Navigator?
A Cisco Room Navigator can be integrated with the Board Pro G3. The device includes a 10/100/1000 Ethernet PoE port with a 15.4W power budget specifically supporting direct pairing of a Cisco Room Navigator.

6. Can the Board Pro 55 G3 be mounted in different ways?
Yes. Cisco provides options for wall mounting, wall standing, floor standing, and wheel-based deployment. The exact mounting hardware depends on the selected configuration.
