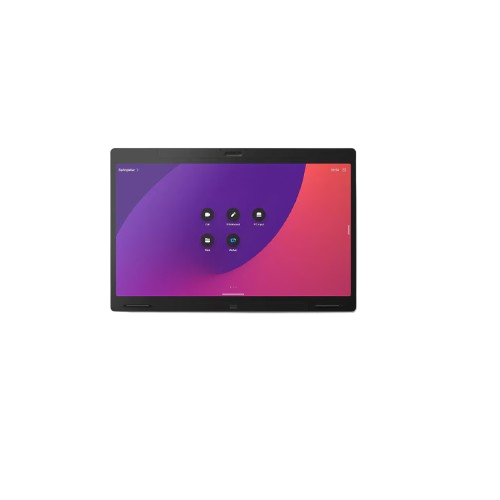

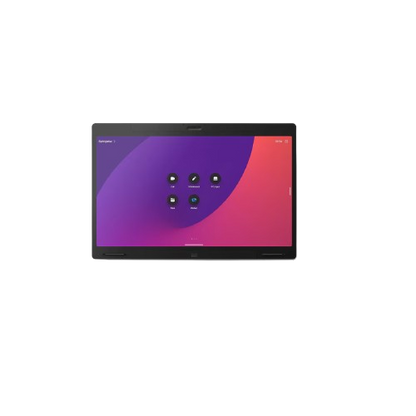

CS-BRDP55-K9 Cisco Webex Board Pro 55 G2 Video Conferencing Device

BRAND NEW WITH FULL CISCO WARRANTY!!!

Overview

CS-BRDP55-K9 Cisco Webex Board Pro 55 G2 Video Conferencing Device is an integrated collaboration system built around a 55-inch 4K interactive display. It combines a multi-touch LCD, dual 48MP cameras, a 14-element beamforming microphone array, integrated multi-channel speakers and a woofer into one room endpoint. Cisco specifies the CS-BRDP55-K9 as the primary model for the Cisco Board Pro 55 G2, with compliance model TTC60-35.

The Board Pro 55 G2 is designed for hybrid meetings, interactive presentations, content annotation and collaborative work. It supports Webex, Microsoft Teams Rooms on Android and interoperability with platforms including Microsoft Teams, Google Meet and Zoom, while providing wired and wireless content-sharing options. Its 55-inch 4K touch interface, integrated camera and audio system, and multiple mounting options make it suitable for dedicated meeting and collaboration spaces without requiring a separate display and conferencing codec.

Key Features – CS-BRDP55-K9 Cisco Webex Board Pro 55 G2

• Processor: Integrated Cisco collaboration processing platform; Cisco does not publish CPU model, clock speed or RAM capacity for this SKU
• Memory: Not publicly specified by Cisco
• Storage: Not publicly specified by Cisco
• Controller: Integrated Cisco RoomOS collaboration platform
• Display: 55-inch 4K LCD multi-touch display, 3840 × 2160 resolution
• Cameras: 2 × 48MP cameras with wide and main fields of view
• Audio: 14-element beamforming microphone array, integrated multi-channel speakers and woofer
• Networking / Ports:
  • Gigabit Ethernet
  • 802.11 wireless networking
  • USB 2.0 Type-A
  • MicroUSB
  • HDMI
  • USB-C
  • PoE Ethernet for Cisco Room Navigator
• Power & Cooling: 100–240V AC, 50/60Hz; 8W typical networked standby
• Management: Cisco RoomOS, Webex Control Hub, Cisco Unified Communications Manager and Cisco Expressway
• Security: TLS, SRTP, AES encryption, WPA3/WPA3-Enterprise, 802.1X and certificate-authority management
• Form Factor: 55-inch wall/floor/wheel-mounted collaboration board

Technical Specifications

• Processor Type: Integrated Cisco collaboration endpoint platform
• Chipset / Platform: Cisco Board Pro 55 G2 / RoomOS
• Memory Technology: Not specified by Cisco
• Storage Interface: Not applicable; integrated collaboration appliance
• RAID Support: Not applicable
• Expansion Slots: No conventional PCIe expansion slots
• Networking:
  • Gigabit Ethernet
  • Wi-Fi
  • Bluetooth 5.2 / Bluetooth Low Energy
  • DHCP, IPv4, IPv6, DNS, NTP
  • IEEE 802.1X
  • Cisco Discovery Protocol
• Display:
  • 55-inch LCD
  • 3840 × 2160 resolution
  • 16:9 aspect ratio
  • 350 nits brightness
  • 1000:1 contrast ratio
  • In-cell multi-touch technology
• Camera System:
  • 2 × 48MP cameras
  • Wide and main fields of view
• Audio:
  • 14-element beamforming microphone array
  • Integrated multi-channel speakers
  • Integrated woofer
  • 75 Hz–20 kHz speaker frequency response
• I/O Ports:
  • Ethernet
  • HDMI
  • USB-C
  • USB 2.0 Type-A with 1.5A charging capability
  • MicroUSB
  • Analog microphone connectivity
  • PoE Ethernet for Cisco Room Navigator
• Operating System Compatibility: Cisco RoomOS 11.15 or later; Microsoft Teams Rooms on Android
• Video / Collaboration Protocols: H.323, SIP, SRTP, H.264, H.265, H.263, H.239
• Wireless: 802.11a/b/g/n/ac/ax; WPA3 and WPA3-Enterprise supported

Physical Specifications

• Form Factor: 55-inch integrated collaboration board
• Weight:
  • 40 kg
  • 88.18 lbs
• Dimensions:
  • 1278 × 80 × 855 mm (W × D × H)
  • 50.3 × 3.15 × 33.7 inches
• Rack Compatibility: Not rack-mountable; designed for wall, floor-stand or mobile/wheel-based room deployment
• Mounting: Wall mount included as a standard component when applicable; optional floor stand and wheel upgrade configurations are available
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 20% to 90% RH, non-condensing

Ideal For

• Corporate conference rooms
• Hybrid meeting environments
• Executive collaboration rooms
• Training and presentation rooms
• Interactive brainstorming spaces
• Microsoft Teams Rooms deployments
• Webex collaboration environments
• Video conferencing and telepresence deployments
• Organizations requiring an integrated 4K interactive collaboration endpoint

Warranty & Support

• Standard Manufacturer Warranty: Cisco limited liability warranty; retailer listings for this SKU commonly specify 90-day limited warranty, so the exact warranty attached to a particular purchase should be confirmed with the seller.
• Support Contract Compatibility: Cisco support services can be purchased according to the applicable Cisco service and deployment requirements.
• Management: Cisco Webex Control Hub, Cisco Unified Communications Manager 12.5(1) or later, and Cisco Expressway are supported registration/management options.

FAQs – CS-BRDP55-K9 Cisco Webex Board Pro 55 G2

1. What is included with the CS-BRDP55-K9?
Cisco specifies the primary Board Pro 55 G2 configuration with the integrated 55-inch main unit, two active pens, wall mount kit when applicable, country-specific power cord and lifting handles. Optional floor-stand, wall-stand and wheel configurations are available separately.

2. Can the CS-BRDP55-K9 be used with Microsoft Teams?
Yes. Cisco supports Microsoft Teams Rooms on Android and provides interoperability options for Microsoft Teams through CVI and WebRTC. Google Meet and Zoom interoperability are also supported through the documented collaboration interfaces.

3. Can users connect a laptop to the Board Pro 55 G2?
Yes. The platform supports wired content sharing through its video interfaces, including HDMI and USB-C, as well as wireless sharing technologies such as Webex, Miracast, Apple AirPlay and Teams Casting.

4. Does the Board Pro 55 G2 support external room-control equipment?
Yes. The device provides an Ethernet PoE connection with a 15.4W power budget for a Cisco Room Navigator, allowing room-control functionality to be integrated with the collaboration endpoint.

5. Can the Board Pro 55 G2 be mounted on a wall or stand?
Yes. Cisco provides wall-mount, wall-stand, floor-stand and wheel-based deployment options. The Board Pro 55 G2 itself weighs 40 kg / 88.18 lbs, so the selected mounting solution must be appropriate for the installation environment.

6. Is the CS-BRDP55-K9 a rack-mountable device?
No. This is a large-format collaboration board rather than a rack-mounted server or network appliance. Cisco specifies deployment using wall, floor-stand, wall-stand or wheel-based mounting options.
