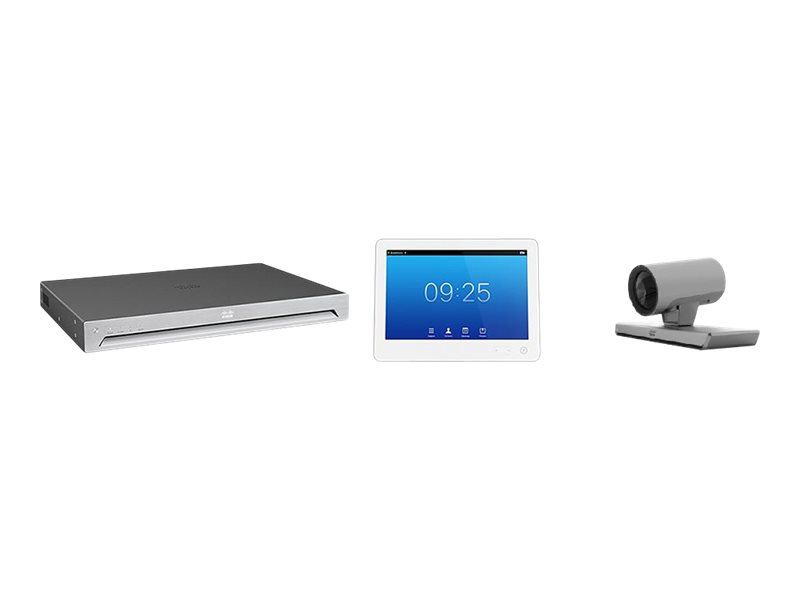

Cisco TelePresence System Precision 60 Camera Remanufactured CTS-SX80-IP60K9-RF

The SX80 Codec is a powerful audio and video engine. It incorporates high-definition video collaboration applications into large meeting rooms, boardrooms, and purpose-built or vertical application rooms such as training, briefing, and demo rooms, and auditoriums. The SX80 delivers up to 1080p60 end-to-end high definition (HD) video. It offers industry-first support for H.265, which lays the foundation for future bandwidth efficiencies made possible by the standard. The codec offers a rich input and output set and flexible media engine. It supports three screens to help enable a variety of use cases adaptable to your specific needs.

• Brand: Cisco
• SKU # CTS-SX80-IP60K9-RF
• Model: SX80 Codec, Precision 60 Camera, and Touch 10
• Conferencing System Type: Video conferencing kit
• Type: Codec board
• Form Factor: Rack-mountable
• Supported Display Graphics: 1280x720, HDTV (1920x1080)
• Max External Resolution: 1920 x 1080
• Digital Video Standard: Digital Visual Interface (DVI), High-Definition Multimedia Interface (HDMI)
• Type: Digital video camera
• Form Factor: External
• Color Support: Color
• Digital Video Capture Resolution: 1920 x 1080
• Type: Touchscreen
• Connectivity Technology: Wired
• Max Transfer Rate: 10 MBps
• Digital Signaling Protocol: H.323, H.239, H.460, H.245
• Data Compression Protocol: H.235 ver 3, H.350
• Features: Echo cancellation, Auto gain control
• Type: Network adapter
• Connectivity Technology: Wired
• Data Link Protocol: Ethernet, Gigabit Ethernet, Fast Ethernet
• Network / Transport Protocol: TCP/IP, NTP, DHCP, DNS
• Features: Quality of Service (QoS), SSH support, IPv6 support, Class of Service (CoS), Flow control, LDAP support, DiffServ support, VLAN support, IPv4 support
• Compliant Standards: IEEE 802.1x, IEEE 802.1Q, IEEE 802.1p
VoIP Protocols: H.323, SIP
• Voice Codecs: G.711, G.722.1, G.722, G.729ab
• Video Codecs: H.263, H.261, H.264, H.265, H.263+
• Quality of Service: IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p
• Security: H.235 v3
• Network Protocols: HTTP, HTTPS
• Interfaces: 2 x network - RJ-45, 6 x audio - balanced output, 8 x microphone - input, 1 x display / video - DVI-Analog/Digital input - 24+5 pin combined DVI, 1 x display / video - DVI-Analog/Digital output - 24+5 pin combined DVI, 2 x USB - 4 pin USB Type A, 3 x display / video - HDMI input - 19 pin HDMI Type A, 2 x display / video - HDMI output - 19 pin HDMI Type A, 1 x display / video - composite video/S-video input - BNC x 2, 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45, 2 x management - RS-232 - 9 pin D-Sub (DB-9), 4 x audio - balanced input
