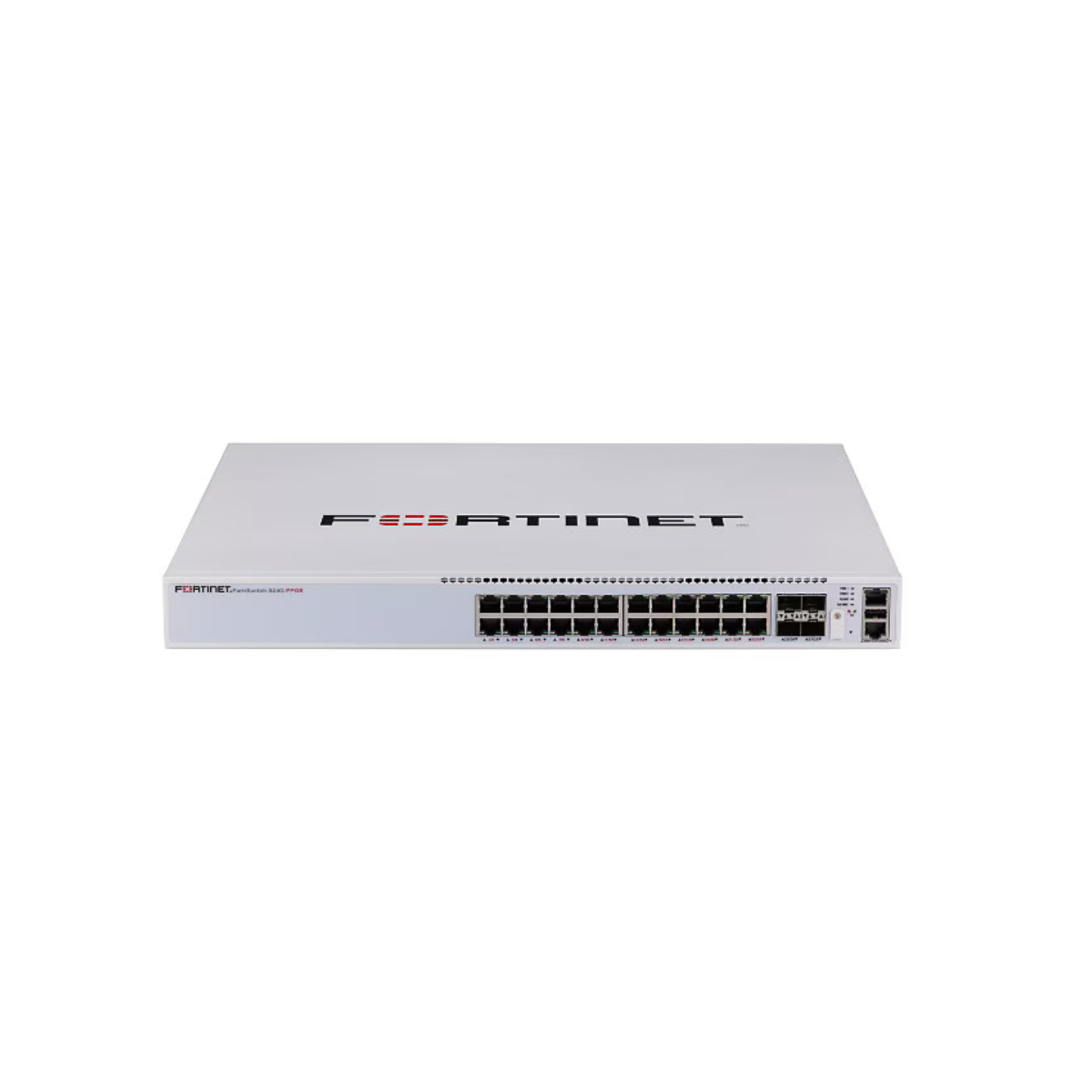

FS-324G-FPOE Fortinet FortiSwitch 324G-FPoE 24-Port Managed Switch

BRAND NEW WITH FULL FORTINET WARRANTY!!!

Overview

The FS-324G-FPOE Fortinet FortiSwitch 324G-FPoE is a Layer 2/3 managed enterprise switch designed for multi-gigabit campus access networks, branch deployments, and high-density edge connectivity. It provides 24 × 10/100/1000/2.5G RJ-45 ports with 4PPoE support and four 10GbE SFP+ uplinks, giving organizations high-speed access connectivity while providing dedicated bandwidth for aggregation and uplink applications.

With a 420W PoE budget, the FS-324G-FPOE can deliver power to compatible wireless access points, IP cameras, sensors, and other network edge devices directly through Ethernet cabling. Its Layer 3 capabilities, sub-microsecond latency, 32K MAC address table, FortiLink integration, standalone management options, and MACsec support make it suitable for enterprise environments where network performance, centralized control, and security are important.

The 1U rack-mount form factor fits standard enterprise network racks and wiring closets, while redundant AC power support provides an additional level of resilience for business-critical deployments.

Key Features – Fortinet FortiSwitch 324G-FPoE

• Processor: Not specified by Fortinet
• Memory: 2GB DDR4
• Storage: 8GB eMMC; 16MB SPI NOR flash
• Controller: FortiGate switch controller compatible; FortiLink supported
• Networking / Ports: 24 × 10/100/1000/2.5G RJ-45 4PPoE ports; 4 × 10GbE/1GbE SFP/SFP+ uplinks
• Power & Cooling: Internal AC power supply; 100–240V AC, 50–60Hz; redundant AC power support
• PoE: 24 × PoE Type 4 802.3bt / 802.3at / 802.3af; 420W total PoE budget
• Management: FortiLink, standalone management, CLI, Web GUI, FortiCloud and on-premises management
• Security: MACsec, 802.1X, DHCP snooping, IP source guard, ACLs, NAC and FortiGate Security Fabric integration
• Form Factor: 1U rack-mount
• Switching Capacity: 200 Gbps
• Packet Forwarding: 297 Mpps
• Network Latency: <1 µs

Technical Specifications

• Processor Type: Not specified by Fortinet
• Chipset / Platform: FortiSwitch 324G enterprise switching platform
• Memory Technology: 2GB DDR4
• Storage Interface: 8GB eMMC; 16MB SPI NOR flash
• RAID Support: Not applicable
• Expansion Slots: 4 × SFP+ expansion/uplink slots
• Networking: 24 × 10/100/1000/2.5G RJ-45; 4 × 1/10GbE SFP/SFP+
• I/O Ports: 1 × RJ-45 management port; 1 × RJ-45 serial console port; 24 × RJ-45 network ports; 4 × SFP+ uplinks
• Layer Support: Layer 2/Layer 3
• MAC Address Table: 32K entries
• VLAN Support: Up to 4,000 VLANs
• IPv4 Routing Entries: 38,000
• IPv6 Routing Entries: 38,000
• Host Entries: 6,000 IPv4 / 6,000 IPv6
• Spanning Tree Instances: 32
• Link Aggregation: 6 links per group; 28 total groups
• Packet Buffer: 3MB
• Jumbo Frame Support: Yes
• Operating System Compatibility: FortiSwitch operating environment; supports FortiLink and standalone deployment

Physical Specifications

• Form Factor: 1U rack-mount
• Weight:
  • 6.5 kg
  • 14.3 lbs
• Dimensions:
  • 440 × 410 × 44 mm (W × D × H)
  • 17.32 × 16.14 × 1.73 inches (W × D × H)
• Rack Compatibility: Standard 1U rack-mount installation; front and side-to-back airflow configuration

Ideal For

• Enterprise campus access networks
• Multi-gigabit office networks
• Wi-Fi 6/6E and high-performance wireless infrastructure
• IP surveillance and security camera deployments
• IP telephony and unified communications
• IoT and smart-building deployments
• Branch-office network infrastructure
• Wiring closets and enterprise data rooms
• Networks requiring 2.5GbE access with 10GbE uplinks
• FortiGate-managed Fortinet Security Fabric environments

Warranty & Support

• Standard Manufacturer Warranty: Limited lifetime Fortinet hardware warranty
• Support Contract Compatibility: FortiCare Premium and FortiCare Elite support options are available for the FS-324G-FPOE.
• FortiCare Premium: Includes premium ticket handling, advanced hardware replacement (NBD), firmware and general upgrades.
• FortiCare Elite: Adds Elite ticket handling to the Premium support offering.

FAQs – Fortinet FortiSwitch 324G-FPoE FS-324G-FPOE

1. Can the FS-324G-FPOE support 2.5GbE devices?
Yes. All 24 RJ-45 access ports support 10/100/1000/2.5G Ethernet, making the switch suitable for multi-gigabit workstations, wireless access points, and other high-bandwidth endpoints.

2. How much PoE power does the FS-324G-FPOE provide?
The switch provides a 420W total PoE budget and supports PoE Type 4 802.3bt as well as 802.3at and 802.3af. The RJ-45 PoE ports can provide up to 90W per port under supported conditions.

3. Can the switch be managed without a FortiGate firewall?
Yes. The FS-324G-FPOE supports standalone management in addition to FortiLink integration with FortiGate. This allows organizations to deploy it independently or integrate it into a Fortinet Security Fabric environment later.

4. Does the FS-324G-FPOE support 10GbE uplinks?
Yes. It provides four SFP+ uplink interfaces supporting 1GbE and 10GbE connectivity, allowing high-speed connections to aggregation switches, servers, or other network infrastructure.

5. Does the FS-324G-FPOE support redundant power?
Yes. The platform supports redundant AC power and load-sharing operation, providing additional resilience for enterprise network deployments.

6. Is the FS-324G-FPOE suitable for rack deployment?
Yes. It uses a 1U rack-mount form factor with front-and-side-to-back airflow and is designed for enterprise racks and network wiring closets.
