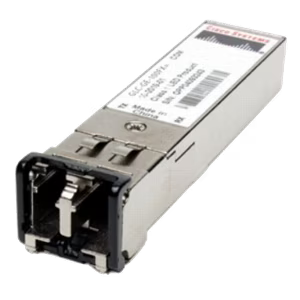

Cisco GLC-FE-100BX-U 100BASE-BX10 SFP Transceiver Module

BRAND NEW WITH FULL CISCO WARRANTY!!!

The Cisco GLC-FE-100BX-U is a Fast Ethernet (100 Mbps) optical SFP transceiver module designed for bidirectional data transmission over single-mode fiber (SMF). It enables cost-effective fiber connectivity by transmitting and receiving data over a single strand of fiber, making it ideal for enterprise and service-provider networks where fiber availability is limited.

This hot-swappable SFP module uses a 1310 nm transmit wavelength and a 1550 nm receive wavelength, allowing it to operate in conjunction with a complementary BX transceiver on the opposite end of the link. Its compact form factor ensures easy installation and high port density in supported Cisco switches and routers.

Key Features – Cisco GLC-FE-100BX-U

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 100 Mbps (Fast Ethernet)
• Fiber Type: Single-mode fiber (SMF)
• Wavelengths:
 o Transmit: 1310 nm
 o Receive: 1550 nm
• Maximum Distance: Up to 10 km
• Connector Type: LC
• Operation Mode: Bidirectional (single-fiber)
• Hot-Swappable: Yes
• Standards Compliance: IEEE 802.3, 100BASE-BX10

Use Cases

• Fast Ethernet fiber links in enterprise networks
• Service provider access networks using single-fiber runs
• Campus or building-to-building connectivity
• Network deployments requiring efficient fiber utilization

Compatibility & Installation

• Designed for Cisco networking equipment supporting Fast Ethernet SFP modules
• Requires single-mode LC fiber patch cables
• Must be paired with a complementary BX-D transceiver at the remote end
• Plug-and-play installation with no system downtime

Warranty

• Cisco standard manufacturer warranty
• Eligible for Cisco service and support programs (as applicable)

FAQs – Cisco GLC-FE-100BX-U

Q1: What speed does this SFP transceiver support?
A1: It supports 100 Mbps Fast Ethernet connectivity.

Q2: What type of fiber cable is required?
A2: The module requires single-mode fiber (SMF) with an LC connector.

Q3: How far can the GLC-FE-100BX-U transmit data?
A3: It supports transmission distances of up to 10 kilometers over single-mode fiber.

Q4: Does this transceiver require a matching module?
A4: Yes. It must be paired with a complementary BX-D transceiver at the opposite end of the fiber link.

Q5: Can this module be installed without powering down the switch?
A5: Yes. The SFP module is hot-swappable, allowing installation or removal while the device is operating.

Q6: Is this transceiver compatible with non-Cisco equipment?
A6: It follows IEEE standards, but compatibility with non-Cisco devices depends on platform support for Cisco-coded SFP modules.
