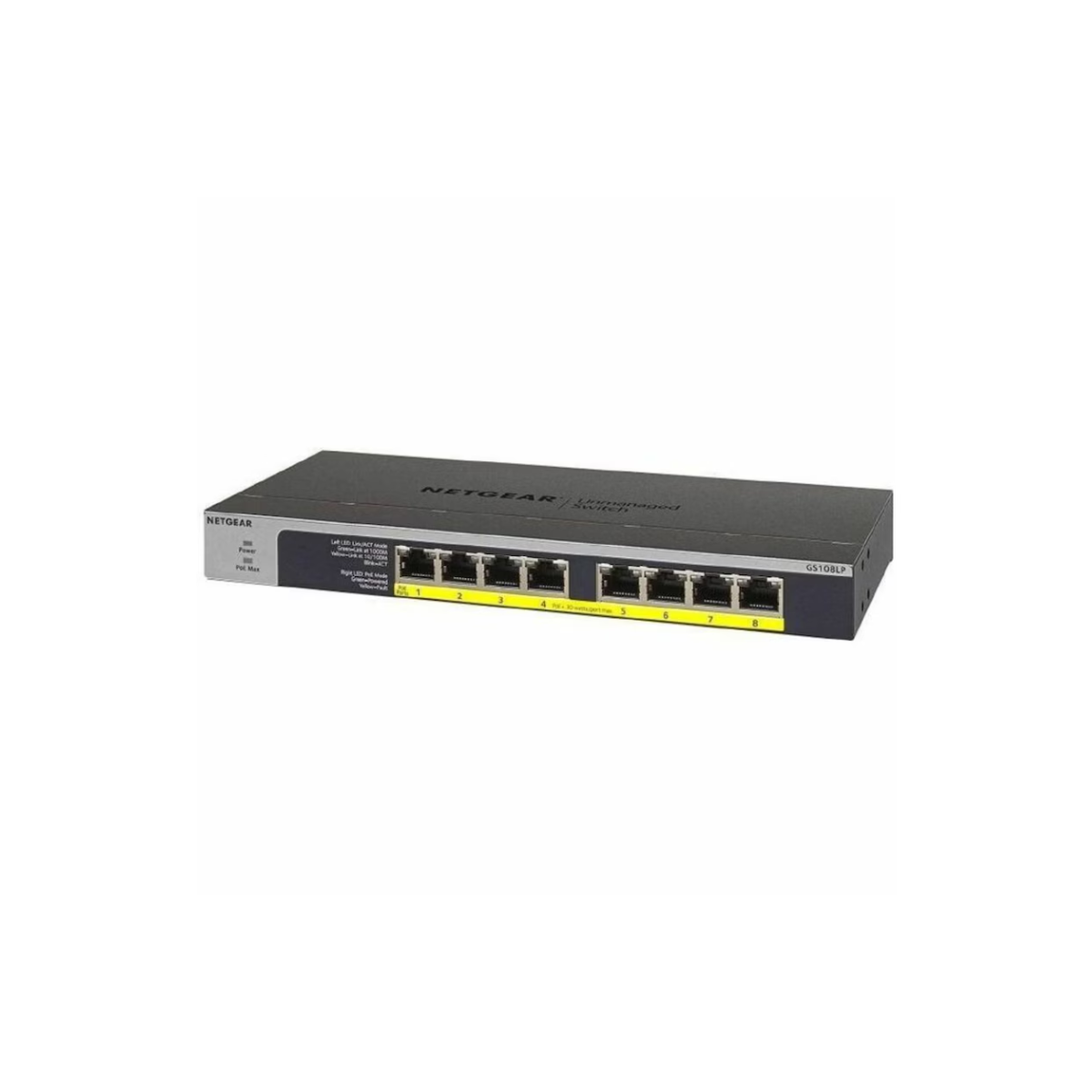

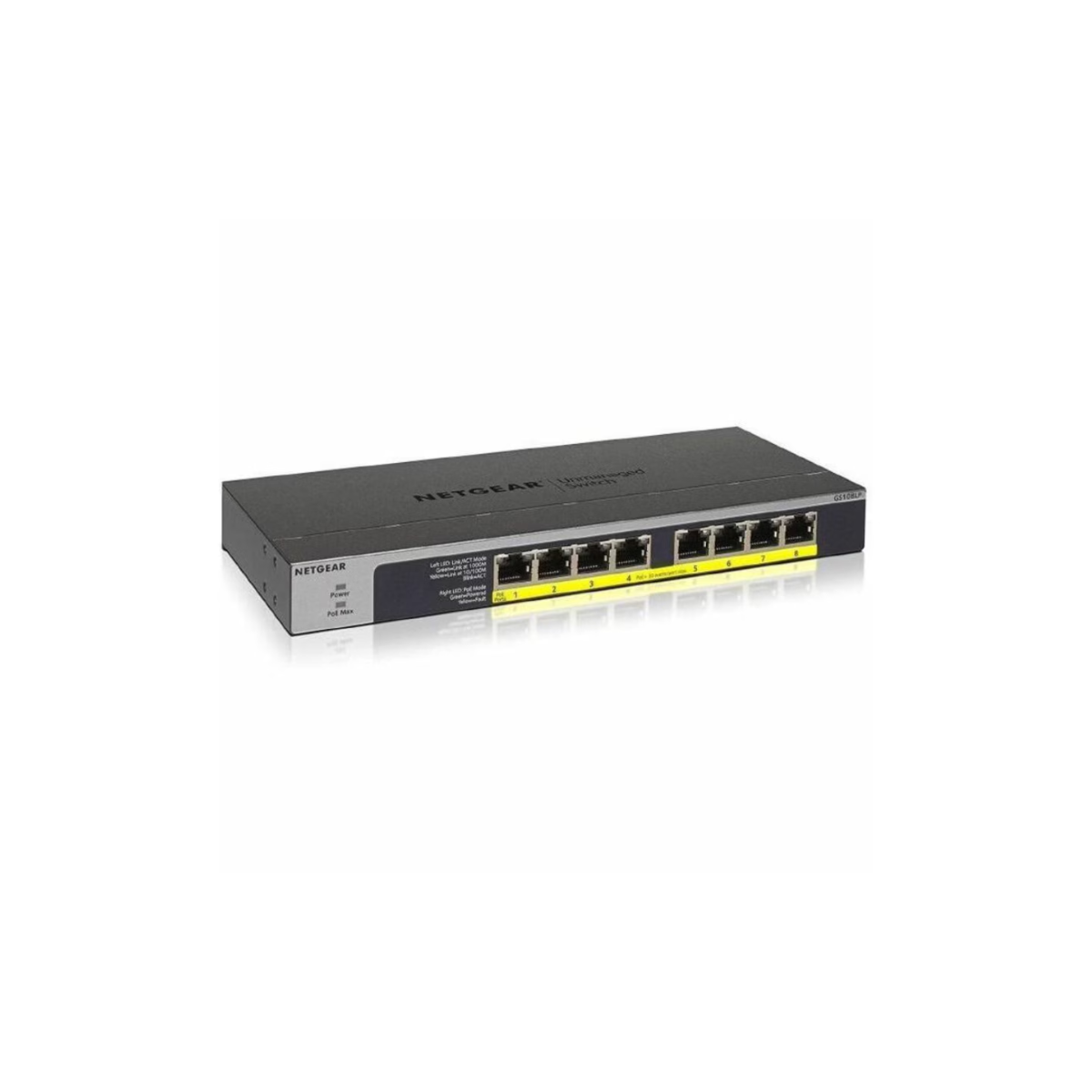

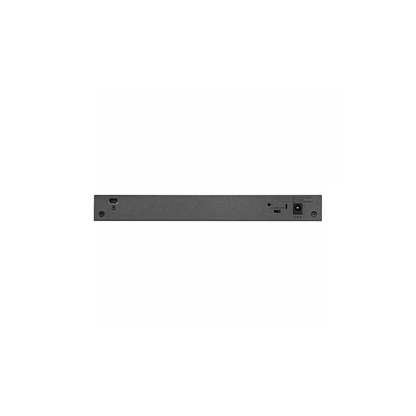

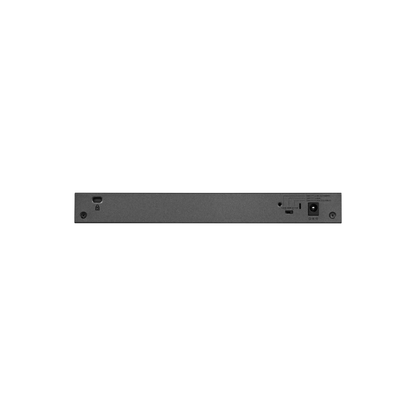

GS108LP-100NAS – NETGEAR 8-Port Gigabit Ethernet PoE+ Unmanaged Switch

BRAND NEW WITH FULL NETGEAR WARRANTY!!!

Overview

The GS108LP-100NAS NETGEAR 8-Port Gigabit Ethernet PoE+ Unmanaged Switch is designed for small and medium-sized businesses that need reliable wired connectivity and Power over Ethernet for network-connected devices. It features eight Gigabit Ethernet ports with IEEE 802.3af/802.3at PoE+ support and a standard 60W total PoE budget, enabling businesses to connect compatible wireless access points, IP cameras, and VoIP phones without requiring separate power adapters for each device.

With an 8 Gbps non-blocking switching capacity, the GS108LP-100NAS supports simultaneous Gigabit Ethernet traffic across its eight ports. NETGEAR FlexPoE technology allows the PoE budget to be increased by changing the external power adapter to a compatible higher-capacity unit. Supported configurations provide PoE budgets of 60W, 83W, or 123W, depending on the power adapter used.

The switch features a durable metal enclosure, fanless operation, and flexible desktop, wall-mount, or rack-mount installation options. Its unmanaged, plug-and-play design reduces deployment complexity for offices, retail locations, surveillance installations, and small-business networks that need straightforward connectivity with PoE power delivery.

Key Features – GS108LP-100NAS

• Processor: Processor model not specified in the official product datasheet.
• Memory: Internal memory capacity not specified in the cited datasheet.
• Storage: No user-accessible data storage; internal storage capacity not specified in the cited datasheet.
• Controller: Integrated unmanaged Gigabit Ethernet switching architecture.
• Networking / Ports: 8 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports, all supporting IEEE 802.3af/802.3at PoE/PoE+.
• Power & Cooling: External power adapter; fanless design; standard 60W PoE budget.
• FlexPoE: Supports compatible 67.5W, 90W, and 130W external power adapters, providing PoE budgets of 60W, 83W, and 123W respectively.
• Management: Unmanaged, plug-and-play operation without a configuration interface.
• Security: No advanced configurable access-control or managed-switch security features specified.
• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet support.
• Form Factor: Metal enclosure with desktop, wall-mount, and rack-mount options.

Technical Specifications

• Processor Type: Not specified by NETGEAR.
• Chipset / Platform: NETGEAR unmanaged Gigabit Ethernet switching platform.
• Memory Technology: Not specified in the cited manufacturer datasheet.
• Storage Interface: Not applicable; no user-accessible storage interface.
• RAID Support: Not applicable.
• Expansion Slots: None.
• Networking: 8 × 10/100/1000BASE-T RJ-45 ports.
• PoE Standards: IEEE 802.3af and IEEE 802.3at.
• PoE Budget: 60W with the included standard power configuration; up to 123W with a compatible 130W power adapter.
• Switching Capacity: 8 Gbps.
• MAC Address Table: 4,000 entries.
• Packet Buffer: 192 KB.
• Jumbo Frame Support: Up to 10,000 bytes.
• Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet.
• Auto-Negotiation: Supported.
• Auto-MDI/MDIX: Supported.
• I/O Ports: 8 × RJ-45 Gigabit Ethernet ports with PoE/PoE+ support.
• Operating System Compatibility: No host operating system required for basic switching; compatible Ethernet devices can connect through standard network interfaces.
• Power Supply: External 67.5W power adapter in the standard configuration.
• Cooling: Fanless operation.

Physical Specifications

• Form Factor: Desktop / wall-mountable / rack-mountable.
• Enclosure: Metal.
• Weight:
  • 0.6 kg.
  • 1.32 lbs.
• Dimensions (W × D × H):
  • 236 × 102 × 27 mm.
  • 9.29 × 4.02 × 1.06 inches.
• Rack Compatibility: Supports rack mounting with the appropriate included mounting accessories. Suitable for compatible standard equipment racks; confirm the mounting arrangement before installation.

Ideal For

• IP Surveillance Systems: Powering compatible PoE security cameras while providing Gigabit Ethernet connectivity.
• Wireless Access Point Deployment: Connecting and powering compatible business Wi-Fi access points.
• VoIP Communications: Supporting IP phones that use IEEE 802.3af/802.3at PoE.
• Small and Medium-Sized Offices: Expanding wired connectivity for computers, printers, and other Ethernet devices.
• Retail and Branch Locations: Supporting point-of-sale equipment, cameras, and office network devices.
• Wall-Mounted Network Installations: Deploying network connectivity in locations where rack space is limited.
• Growing PoE Networks: Increasing the available PoE budget through a compatible higher-wattage external power adapter.

Warranty & Support

• Standard Manufacturer Warranty: NETGEAR limited lifetime hardware warranty, subject to applicable regional terms, authorized-reseller requirements, and registration conditions.
• Technical Support: Available through NETGEAR support services, subject to the product's warranty and support eligibility.
• Support Contract Compatibility: NETGEAR offers separate support options for eligible products. Cisco SMARTnet, Dell ProSupport, and HPE Care Pack are not applicable manufacturer support programs for this NETGEAR switch.
• Power Adapter Coverage: External power adapters may have warranty coverage terms different from the switch hardware. Confirm the applicable terms before purchase.

FAQs – GS108LP-100NAS

1. Can the GS108LP-100NAS power IP cameras and wireless access points?

Yes. All eight Ethernet ports support IEEE 802.3af/802.3at PoE/PoE+. The total available power is 60W in the standard configuration, shared among connected devices.

2. Can the PoE power budget be upgraded?

Yes. NETGEAR FlexPoE supports compatible external power adapters. A 90W adapter provides an 83W PoE budget, while a 130W adapter provides a 123W PoE budget. The higher-capacity adapters are purchased separately.

3. Is the GS108LP-100NAS a managed switch?

No. It is an unmanaged switch designed for plug-and-play deployment. It does not provide the configurable VLAN, advanced traffic-management, or centralized switch-administration features associated with managed switches.

4. Does the switch have redundant power supplies?

No built-in redundant power supply is specified. The switch uses one external power adapter. Businesses requiring continuous availability should consider an appropriate backup-power arrangement or a switch designed for redundant power.

5. Can the GS108LP-100NAS be installed in a rack?

Yes. It supports desktop, wall-mount, and rack-mount installation options. Use the supplied mounting accessories and verify the intended rack arrangement before installation.

6. Does the switch require active cooling?

No. The GS108LP-100NAS uses a fanless design for quiet operation. Install it in a suitable indoor environment with adequate clearance for natural heat dissipation.
