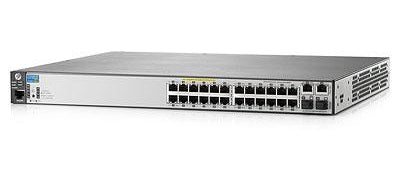

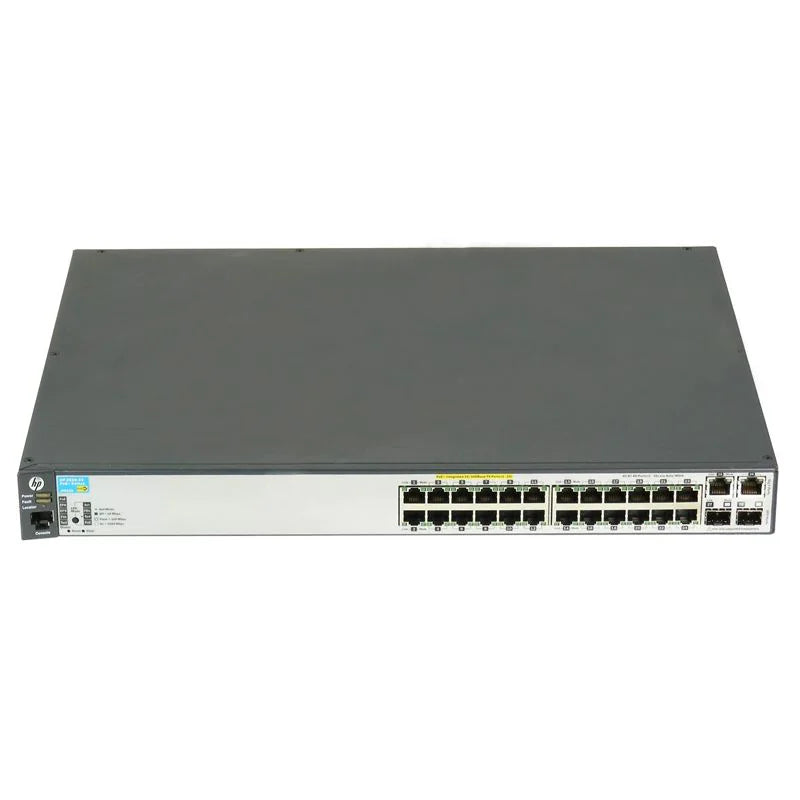

HP Aruba 2620-24-PoE+ Managed L4 Switch J9625A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HP LIFETIME WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

Reliable switching is essential for maintaining stable connectivity across business networks. Offices depend on consistent performance to support computers, wireless systems, and powered devices such as IP phones and access points.

The HP Aruba 2620-24-PoE+ Managed Switch J9625A delivers cost-effective and flexible access-layer connectivity. Designed for enterprise edge networks, branch offices, and SMB environments, this switch provides PoE+ support, basic Layer 3 routing, and simple deployment. With unified management tools and reliable performance, it supports both wired and wireless network environments.

Key Features

• 24 × Fast Ethernet ports with PoE+ support
• Managed switch with basic Layer 3 routing capabilities
• Supports IPv4 and IPv6 networking
• Integrated PoE+ for powering network devices
• VLAN segmentation for improved traffic control
• Advanced QoS for traffic prioritization
• Centralized management with Aruba tools
• Designed for enterprise edge, SMB, and branch deployments

Technical Specifications

Brand: HP Aruba
Model: Aruba 2620-24-PoE+
Part Number: J9625A
Product Type: Managed Ethernet Switch

Switch Type

Layer 2 Switching
Lite Layer 3 Routing
Enterprise Edge Switch

Ports

24 × 10/100 Ethernet RJ-45 PoE+ ports

Performance

Routing / Switching Capacity: 12.8 Gbps
Throughput: up to 9.5 Mpps
MAC Address Table: 16000 entries
Jumbo Frame Support: 9220 bytes

Routing Protocols

RIP-1
RIP-2
IGMPv3
MLDv2

Network Features

Flow control
DHCP support
ARP support
VLAN support
Auto MDI/MDI-X
Port mirroring
IPv6 support
Half and full duplex modes
sFlow monitoring
Multiple Spanning Tree Protocol (MSTP)

Security and Access Control

Access Control Lists (ACL)
Dynamic ARP protection
DHCP protection
MAC address lockout
STP Root Guard
Per-port broadcast throttling

Management Protocols

SNMP v1, v2c, v3
RMON, RMON 2
Telnet
HTTPS
TFTP
SMON

Authentication and Encryption

SSL encryption
RADIUS
TACACS+
Secure Shell (SSH2)

Additional Network Features

IGMP snooping
MLD snooping
LLDP support
QoS support
Jumbo frame support

Interfaces

24 × Fast Ethernet RJ-45 PoE+ ports

Standards Compliance

IEEE 802.3u
IEEE 802.1D
IEEE 802.1Q
IEEE 802.3ab
IEEE 802.1p
IEEE 802.3af
IEEE 802.3at
IEEE 802.3x
IEEE 802.3ad (LACP)
IEEE 802.1w
IEEE 802.1x
IEEE 802.1s
IEEE 802.1v
IEEE 802.1ab (LLDP)

Physical

Form Factor: Rack-mountable
Weight: 10.6 lbs

Use Cases

The Aruba 2620-24-PoE+ J9625A switch is designed for enterprise edge environments, branch offices, and SMB networks. It connects workstations, printers, IP phones, and wireless access points while delivering reliable PoE+ power and stable network performance. Organizations deploy this switch when they need cost-effective access switching with simple management and basic Layer 3 capabilities.

Why Choose HP Aruba 2620-24-PoE+ J9625A

• Provides reliable PoE+ connectivity for powered devices
• Supports cost-effective deployment for access-layer networks
• Enables basic Layer 3 routing for improved traffic handling
• Simplifies management with Aruba centralized tools
• Enhances security with built-in access control features
• Supports both wired and wireless network environments
• Ideal for SMB, retail, and branch office deployments
• Brand new hardware backed by a full HP lifetime warranty

FAQs

What type of switch is the Aruba J9625A?
It is a managed Ethernet switch with Layer 2 switching and lite Layer 3 routing capabilities.

How many ports does the switch provide?
The switch includes 24 Fast Ethernet PoE+ ports.

Does the switch support PoE devices?
Yes. It supports PoE+ for powering IP phones, wireless access points, and other devices.

Does this switch support routing protocols?
Yes. It supports RIP routing along with IPv4 and IPv6 capabilities.

Is the switch suitable for small business networks?
Yes. It is designed for SMB environments, branch offices, and enterprise edge deployments.

Does the warranty cover the switch?
Yes. The product is brand new, factory-sealed, retail-boxed, and includes the full HP lifetime warranty.
