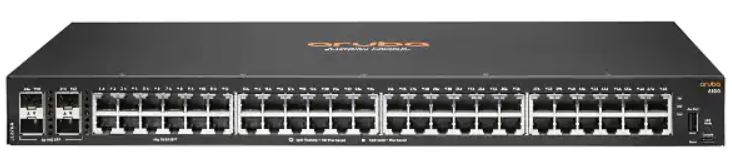

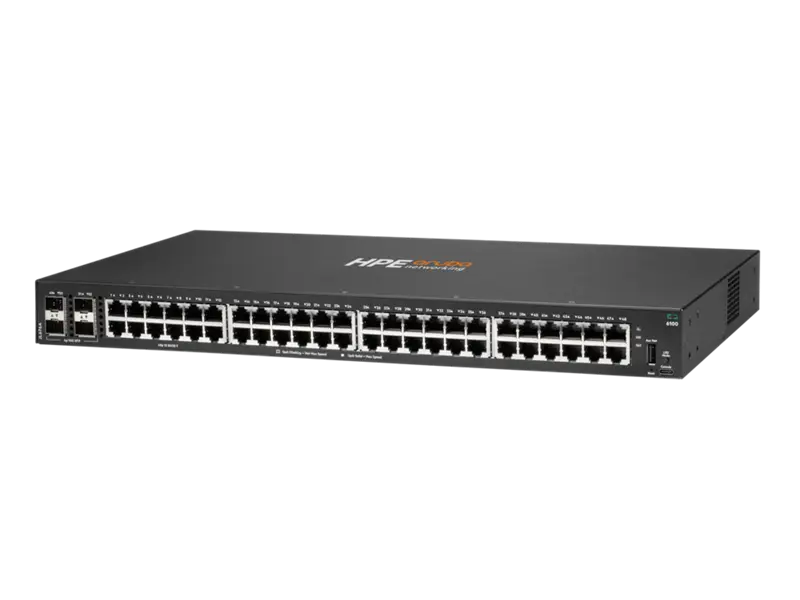

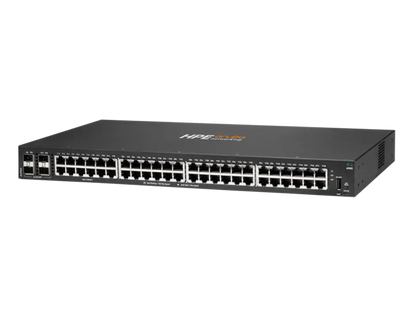

HPE Aruba CX 6100 48G 4SFP+ Managed Switch JL676A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

Every network begins at the access layer. Employees connect laptops. Cameras stream footage. Wireless access points serve hundreds of devices. When access switches lag, productivity slows across the entire organization.

The HPE Aruba CX 6100 48G 4SFP+ Switch JL676A delivers reliable enterprise connectivity for modern networks. Built on Aruba’s advanced ASIC architecture and powered by the AOS-CX operating system, it provides consistent performance, security, and simplified management. With forty-eight Gigabit access ports and high-speed SFP+ uplinks, this switch supports cloud services, mobile users, and IoT infrastructure across branch and enterprise environments.

Key Features

• 48 × Gigabit Ethernet access ports for reliable connectivity
• 4 × SFP+ uplink ports supporting 1G and 10G speeds
• Aruba AOS-CX operating system for modern network automation
• Enterprise-grade Layer 2 switching and Layer 3 Lite routing
• Built-in security, access control, and traffic prioritization
• Energy-efficient architecture for lower operating costs
• Scalable design ideal for enterprise and branch deployments
• Lifetime warranty support from HPE

Technical Specifications

Brand: HPE Aruba
Model: Aruba CX 6100
Part Number: JL676A
Product Type: Managed Switch

Switch Type
Layer 2 / Layer 3 Lite Managed Switch
Enterprise Access Switch

Ports
48 × 10/100/1000Base-T Gigabit Ethernet ports
4 × SFP+ uplink ports supporting 1G / 10G Ethernet

Performance

Switching Capacity: 176 Gbps
Throughput: 98.6 Mpps

Latency

1 Gbps: 1.9 µs
10 Gbps: 1.8 µs

Capacity

Switched Virtual Interfaces: 16
ARP Table Entries: 1024

Routing Table Capacity

IPv4 Routes: 512
IPv6 Routes: 512

Multicast Capacity

IGMP Groups: 512
MLD Groups: 512

Access Control Lists

IPv4 ACL Entries: 256
IPv6 ACL Entries: 128
MAC ACL Entries: 256

Processor

Processor Type: ARM A9
Clock Speed: 1.016 GHz

Memory

RAM: 4 GB DDR3 SDRAM
Flash Memory: 16 GB

Network Features

VLAN segmentation
Quality of Service (QoS) traffic management
IPv4 and IPv6 support
Energy Efficient Ethernet
Link aggregation support
Multicast traffic optimization

Management Protocols

SNMP
CLI
TFTP
Network monitoring through the Aruba ecosystem tools

Additional Network Features

Flow control
BOOTP support
ARP support
DiffServ traffic management
SNTP time synchronization
sFlow traffic monitoring
Multiple Spanning Tree Protocol (MSTP)
Rapid Spanning Tree Protocol (RSTP)
Link Aggregation Control Protocol (LACP)
LLDP and LLDP-MED support
Neighbor Discovery Protocol (NDP)
Network Access Control (NAC)

Interfaces

48 × Gigabit Ethernet RJ-45 ports
4 × 1G / 10G SFP+ uplink ports
1 × USB-C console port
1 × USB Type-A port

Physical Specifications

Form Factor: Rack-mountable
Rack Height: 1U
Airflow: Side-to-side airflow

Warranty

Limited Lifetime Warranty from HPE

Use Cases

The Aruba CX 6100 JL676A switch supports modern enterprise access networks where reliable connectivity and simple management matter most. Organizations deploy it in branch offices, enterprise campuses, and mid-market networks. It also powers environments with wireless access points, surveillance cameras, and connected IoT devices.

Why Choose HPE Aruba CX 6100 JL676A

• Forty-eight Gigabit ports support high-density access networks
• Four SFP+ uplinks deliver fast aggregation connectivity
• The AOS-CX operating system provides modern automation and visibility
• Reliable switching architecture designed for enterprise environments
• Built-in security and network monitoring features
• Energy-efficient design reduces operational costs
• Ideal for branch offices, SMB networks, and enterprise access layers
• Brand new hardware backed by a full HPE warranty from Chicago Computer Supply

FAQs

What is the Aruba CX 6100 JL676A switch used for?

It is an enterprise access switch designed for branch offices, campus networks, and SMB environments.

How many ports does the switch provide?

The switch includes forty-eight Gigabit Ethernet ports and four high-speed SFP+ uplink ports.

What speeds do the SFP+ ports support?

The SFP+ ports support 1 Gigabit and 10 Gigabit Ethernet connectivity.

Does the switch support Layer 3 routing?

Yes. It supports Layer 3 Lite routing features, including static routing.

Which operating system runs on this switch?

It runs Aruba’s AOS-CX operating system, designed for automation and modern network management.

Does the warranty cover the switch?

Yes. The switch is brand new, factory-sealed, retail-boxed, and includes the full HPE warranty from Chicago Computer Supply.
