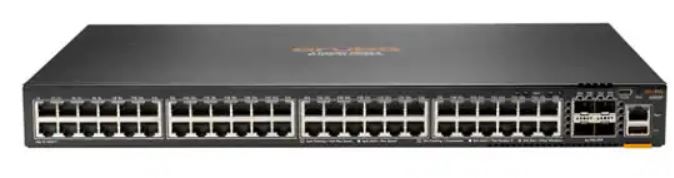

HPE Aruba CX 6300F 48-Port Managed Switch JL667A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. AVAILABLE FROM CHICAGO COMPUTER SUPPLY.

Overview

Modern enterprise networks handle cloud apps, video traffic, wireless devices, and large data transfers every second. As organizations adopt Wi-Fi 6, IoT, and edge computing, the access layer must support higher performance and intelligent monitoring. Traditional switching platforms struggle to deliver this flexibility.

The HPE Aruba CX 6300F 48-Port Managed Switch JL667A is best for modern enterprise access and aggregation networks. It runs the powerful AOS-CX operating system and integrates the Aruba Network Analytics Engine for real-time monitoring and troubleshooting. With high-speed uplinks, advanced Layer 3 routing, and stacking capabilities, this switch delivers scalable performance for enterprise campuses and branch networks.

Key Features

• 48 × Gigabit Ethernet access ports for high-density connectivity
• 4 × SFP56 uplink ports supporting 1G / 10G / 25G / 50G Ethernet
• Enterprise-grade Layer 3 routing and switching
• Aruba Virtual Switching Framework (VSF) stacking support
• Aruba Network Analytics Engine for intelligent monitoring
• Cloud-ready architecture with AOS-CX operating system
• Advanced QoS, security, and traffic management features
• Zero-Touch Provisioning for rapid deployment

Technical Specifications

Brand: HPE Aruba
Model: Aruba CX 6300F
Part Number: JL667A
Product Type: Managed Switch

Switch Type
Layer 3 Managed Switch
Stackable Enterprise Access Switch

Ports
48 × 10/100/1000Base-T Gigabit Ethernet ports
4 × SFP56 uplink ports supporting 1G / 10G / 25G / 50G

Performance
Switching Capacity: 496 Gbps
Throughput: 369 Mpps

Latency
1 Gbps: 2.28 µs
10 Gbps: 1.46 µs
25 Gbps: 1.9 µs
50 Gbps: 3.49 µs

Stacking Bandwidth
Up to 200 Gbps

Capacity

Switched Virtual Interfaces: 1000
IPv4 Host Table: 32,000
IPv6 Host Table: 32,000

Routing Table Capacity
IPv4 Routes: 64,000
IPv6 Routes: 32,000
Multicast Routes: 8,000

Access Control Lists

IPv4 ACL Entries (Ingress): 5000
IPv6 ACL Entries (Ingress): 1250
MAC ACL Entries (Ingress): 5000

MAC Address Table Size
32,000 entries

Jumbo Frame Support
Up to 9198 bytes

Processor
ARM Cortex-A72 Processor
Clock Speed: 1.78 GHz

Memory
RAM: 8 GB DDR4 SDRAM
Flash Storage: 32 GB

Network Features

Advanced Layer 3 routing
VXLAN support for virtualized networks
Dual IPv4 and IPv6 stack support
Aruba Virtual Switching Framework (VSF) stacking.
Dynamic network monitoring and analytics
High-availability architecture

Routing Protocols

BGP-4
OSPFv2 and OSPFv3
VRRP
IGMPv2 and IGMPv3
Static IPv6 routing
ECMP
MLD

Security and Management

Remote Management Protocols

SNMP 1 / 2c / 3
CLI
SSH
HTTPS
Telnet
SFTP
RMON

Authentication

Secure Shell (SSH)
RADIUS
TACACS+

Additional Network Features

VLAN tagging
DHCP protection
ARP protection
IGMP snooping
Spanning Tree Protocol support
Rapid Spanning Tree Protocol
Multiple Spanning Tree Protocol
Access Control Lists
Quality of Service (QoS)
Network Time Protocol
Packet storm protection
Dynamic IPv6 lockdown
Zero-Touch Provisioning (ZTP)

Interfaces

48 × Gigabit Ethernet RJ-45 ports
4 × SFP56 high-speed uplink ports
1 × USB-C console port
1 × management port
1 × USB Type-A port

Physical Specifications

Form Factor: Rack-mountable
Rack Height: 1U

Dimensions

Width: 17.4 inches
Depth: 12.9 inches
Height: 1.7 inches

Weight
9.83 lbs

Compliance

FCC Class A
RoHS
WEEE
CISPR 32 Class A
IEC and EN safety standards

Warranty

Limited Lifetime Warranty from HPE

Use Cases

The Aruba CX 6300F JL667A switch supports modern enterprise networks that require high bandwidth and reliability. Organizations deploy it in campus networks, corporate offices, and high-density wireless environments. It also supports cloud-connected infrastructure, data-intensive applications, and distributed enterprise networks.

Why Choose HPE Aruba CX 6300F JL667A

• High-performance Layer 3 switching for enterprise access networks
• Four high-speed SFP56 uplinks support up to 50G connectivity
• Intelligent monitoring with Aruba Network Analytics Engine
• Scalable stacking architecture with VSF technology
• Powerful AOS-CX operating system for automation and programmability
• Enterprise-grade security and traffic management features
• Ideal for campus networks, branch offices, and high-density deployments
• Brand new hardware with a full HPE warranty from Chicago Computer Supply

FAQs

What is the Aruba CX 6300F JL667A switch used for?

It is an enterprise Layer 3 access and aggregation switch designed for modern campus and enterprise networks.

How many ports does the switch provide?

It includes 48 Gigabit Ethernet ports and 4 high-speed SFP56 uplink ports.

What speeds do the SFP56 uplink ports support?

The uplink ports support 1G, 10G, 25G, and 50G Ethernet connectivity.

Does the switch support stacking?

Yes. It supports the Aruba Virtual Switching Framework (VSF) for stacking multiple switches.

Which operating system does the switch use?

It runs the Aruba AOS-CX operating system, designed for automation and advanced analytics.

Does the warranty cover the switch?

Yes. The switch is brand new, factory-sealed, retail-boxed, and includes the full HPE warranty from Chicago Computer Supply.
