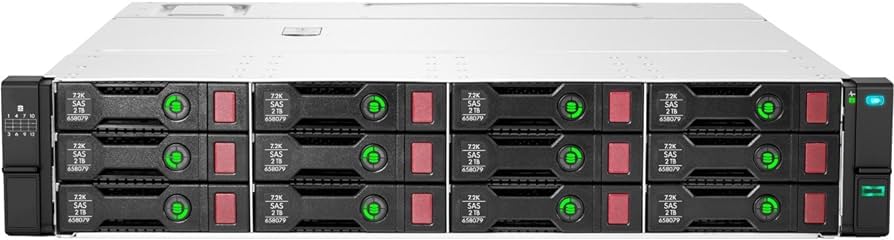

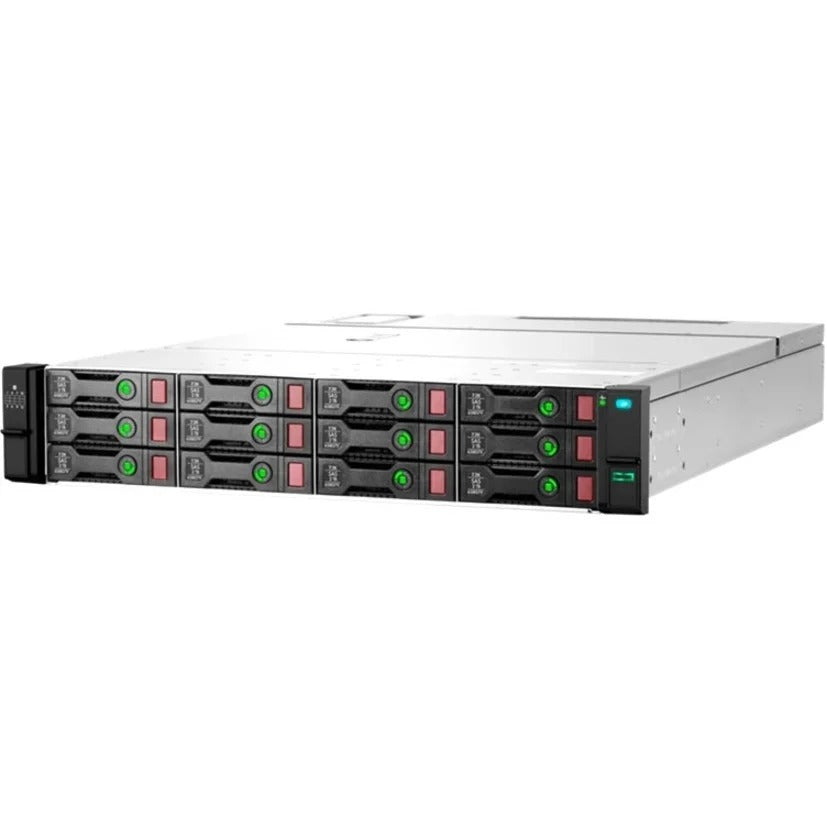

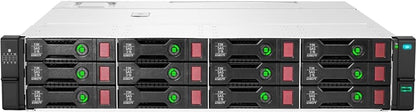

HPE D3610 12-Bay Storage Enclosure – Q1J09B

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY INCLUDED.

Overview

The HPE D3610 12-Bay Storage Enclosure (Q1J09B) is a scalable external storage expansion platform designed for small and midrange business environments requiring affordable, high-capacity, and flexible storage growth. Part of the HPE D3000 enclosure family, the D3610 provides enterprise-class 12Gb SAS storage expansion for HPE ProLiant and BladeSystem deployments.

Built for application environments, remote offices, backup infrastructures, and departmental storage, the HPE D3610 enables organizations to expand storage capacity without transitioning to a full SAN or NAS architecture. Its modular design allows businesses to deploy storage incrementally while supporting future scalability as data requirements grow.

Featuring 12 hot-swappable large form factor drive bays, redundant hot-plug power supplies, and support for both SAS and SATA drives, the HPE D3610 delivers dependable and cost-effective enterprise storage expansion.

Key Features

• 12-bay external storage enclosure
• 12Gb SAS enterprise connectivity
• Supports SAS and SATA drives
• Hot-swappable 3.5-inch LFF drive bays
• Redundant hot-plug power supplies
• Rack-mountable 2U design
• Scalable modular storage architecture
• Optimized for HPE ProLiant environments

Technical Specifications

Brand: HPE
Manufacturer: Hewlett-Packard
Product Line: HPE D3000 Storage Enclosures
Model: D3610
Part Number: Q1J09B
Condition: Brand New
Warranty: Full HPE Warranty

Storage Enclosure

• External storage enclosure
• Rack-mountable 2U chassis
• 12-bay large form factor configuration

Drive Support

• Supports SATA-600 and SAS 3 drives
• 12 x 3.5-inch LFF hot-swappable bays
• 12 total bays / 12 free bays
• Maximum supported storage capacity: 120TB

Connectivity

• 1 x SAS 12Gb/s interface
• Enterprise 12Gb SAS connectivity

Power Supply

• 2 x internal hot-plug power supplies
• Redundant 1+1 power configuration
• 460W power supplies
• 92% efficiency power supplies
• 80 PLUS Gold certification

Cooling Features

Redundant cooling fans

Electrical Requirements

• AC 120/230V
• 50/60 Hz frequency

Included Accessories

• Rack mounting kit
• 2 x PDU interconnect cords

Physical Dimensions

• Rack Height: 2U
• Width: 17.6 inches
• Depth: 23.5 inches
• Height: 3.4 inches
• Weight: 37.92 lbs

Ideal Applications

• SMB storage expansion
• Departmental storage infrastructure
• Backup and archival environments
• Remote office storage deployments
• HPE ProLiant storage expansion
• File and application storage
• Tiered external storage environments

Why Choose the HPE D3610

• Affordable enterprise storage expansion
• Flexible modular scalability
• High-speed 12Gb SAS performance
• Enterprise-grade reliability
• Redundant power and cooling protection
• Hot-swappable serviceable components
• Seamless HPE ecosystem compatibility

FAQs

Is the HPE D3610 brand new?
Yes. The Q1J09B enclosure is brand new factory sealed and includes the full HPE warranty.

How many drive bays are included?
The enclosure provides 12 hot-swappable 3.5-inch LFF drive bays.

Does the enclosure include drives?
No. This configuration includes 12 free drive bays with no drives pre-installed.

What storage interfaces are supported?
The D3610 supports SATA-600 and SAS 3 drives with 12Gb SAS connectivity.

Does the system support redundant power?
Yes. The enclosure includes dual hot-plug redundant power supplies in a 1+1 configuration.
