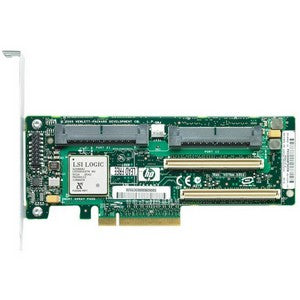

HP Smart Array P400/256MB 8-Port Internal SAS RAID Controller – 405132-B21

HP Smart Array P400/256MB 8-Port Internal SAS RAID Controller – 405132-B21

Regular price $272.99 USD
Regular price $589.99 USD Sale price $272.99 USD
Sale Sold out

You save $317.00 (53%)

Part Number : 405132-B21

UPC: 882780410329

Availability: In stock

Shipping calculated at checkout.
View full details

Description: HP Smart Array P400/256MB 8-Port Internal SAS RAID Controller – 405132-B21

BRAND NEW WITH FULL HP WARRANTY!!!

Overview

The HP Smart Array P400/256MB 8-Port Internal SAS RAID Controller (405132-B21) is an enterprise storage controller designed for compatible HP ProLiant servers. It features a PCI Express x8 host interface, eight internal SAS physical links and 256MB of ECC-protected DDR2-533MHz cache, delivering dependable hardware RAID management for legacy business server environments.

Supporting 3Gb/s SAS and 1.5Gb/s SATA drives, the P400 provides flexible internal storage connectivity through two x4 wide-port SAS connectors. Its RAID capabilities include RAID 0, RAID 1+0 and RAID 5. The controller's modular design also supports an optional 512MB battery-backed write cache upgrade, which enables additional capabilities such as RAID 6, online array expansion and RAID-level migration.

The low-profile PCIe card includes a full-height mounting bracket for installation in compatible server expansion slots. It is a practical option for businesses maintaining legacy ProLiant infrastructure, replacing existing storage controllers or extending the service life of established SAS and SATA storage configurations.

Key Features – HP Smart Array P400/256MB Controller

  • Processor: 440 PowerPC processor.
  • Memory: 256MB 40-bit ECC-protected DDR2-533MHz cache; upgradeable to 512MB 72-bit battery-backed write cache.
  • Storage: Supports 3Gb/s SAS and 1.5Gb/s SATA drives.
  • Controller: HP Smart Array P400 hardware RAID controller.
  • Networking / Ports: Two internal x4 wide-port SAS connectors providing eight physical SAS links.
  • Power & Cooling: Server-powered PCIe controller; optional battery-backed cache upgrade provides cache-data retention during power interruption.
  • Management: HP Array Configuration Utility (ACU), Option ROM Configuration for Arrays (ORCA), Array Diagnostic Utility (ADU) and Systems Insight Manager.
  • Security: ECC-protected cache memory and Recovery ROM firmware protection.
  • Form Factor: Low-profile PCI Express plug-in card with full-height bracket included.

Technical Specifications

  • Processor Type: 440 PowerPC.
  • Chipset / Platform: HP Smart Array P400.
  • Memory Technology: 256MB 40-bit ECC-protected DDR2-533MHz cache.
  • Storage Interface: 3Gb/s SAS and 1.5Gb/s SATA.
  • RAID Support: RAID 0, RAID 1+0 and RAID 5; RAID 6 with the optional battery-backed write cache upgrade.
  • Expansion Slots: PCI Express x8, 2.5G host interface.
  • Networking: Not applicable; this is a storage RAID controller.
  • I/O Ports:
    • 2 × internal x4 wide-port SAS connectors (SFF-8484)
    • 8 physical SAS links
  • Maximum Drive Support: Up to 18 drives, depending on the server implementation.
  • Logical Drives: Up to 32 logical drives.
  • Maximum Logical Drive Capacity: Greater than 2TB.
  • Operating System Compatibility: Supported legacy operating systems include Windows 2000 Server, Windows Server 2003, Windows Server 2008, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Novell NetWare 6.5, Solaris 10 and VMware ESX 3.0. Verify the exact server and OS version before deployment.

Physical Specifications

  • Form Factor: Low-profile PCI Express plug-in card; full-height bracket included.
  • Weight:
    • 0.363 kg
    • 0.80 lbs
  • Dimensions (L × W × H):
    • 167.9 × 69.9 × 17.8 mm
    • 6.61 × 2.75 × 0.70 inches
  • Rack Compatibility: Installs inside a compatible HP ProLiant server. It is not a standalone rack-mounted device.

Ideal For

  • Maintaining legacy HP ProLiant server infrastructure.
  • Replacing an existing Smart Array P400 controller.
  • Adding internal SAS and SATA RAID functionality.
  • Business database and file-server storage configurations.
  • Organizations requiring RAID 5 protection on supported legacy hardware.
  • Extending the useful life of existing HP server investments.

Warranty & Support

  • Standard Manufacturer Warranty: HP QuickSpecs specify a three-year parts-only warranty for the P400 controller.
  • Support Contract Compatibility: HP Care Pack service upgrades may be available at the supported server-system level. Confirm eligibility for the specific legacy server and controller.
  • Management Support: HP Array Configuration Utility, Array Diagnostic Utility and Systems Insight Manager provide supported storage configuration, monitoring and diagnostics.

FAQs – HP Smart Array P400/256MB Controller

1. Can the HP Smart Array P400 cache be upgraded?
Yes. The 256MB cache can be upgraded to a 512MB 72-bit battery-backed write cache using the supported HP upgrade option.

2. Which RAID levels does the 405132-B21 support?
The standard 256MB configuration supports RAID 0, RAID 1+0 and RAID 5. RAID 6 with Advanced Data Guarding requires the optional battery-backed cache upgrade.

3. Does this controller support both SAS and SATA drives?
Yes. It supports 3Gb/s SAS and 1.5Gb/s SATA drives through its two internal x4 SAS connectors.

4. Is a battery included with the 256MB controller?
The 405132-B21 is the standard 256MB cache model and does not include the battery-backed cache upgrade. The compatible battery and cache upgrade components must be purchased separately.

5. How many drives can the P400 support?
The controller supports up to 18 drives, depending on the server implementation and storage configuration.

6. Which management tools are available?
Supported management tools include HP Array Configuration Utility (ACU), Option ROM Configuration for Arrays (ORCA), Array Diagnostic Utility (ADU) and Systems Insight Manager.
