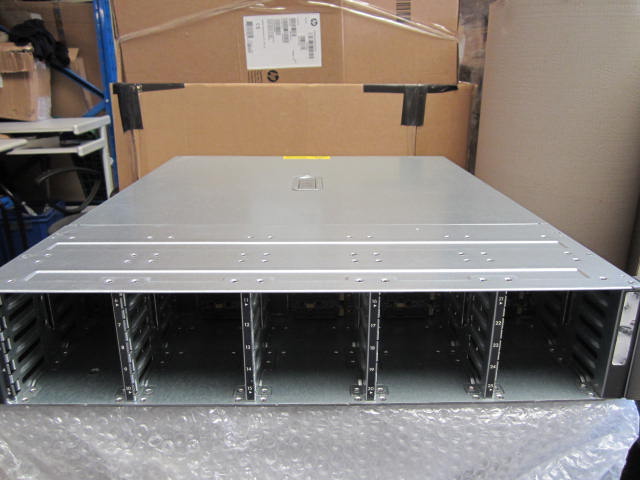

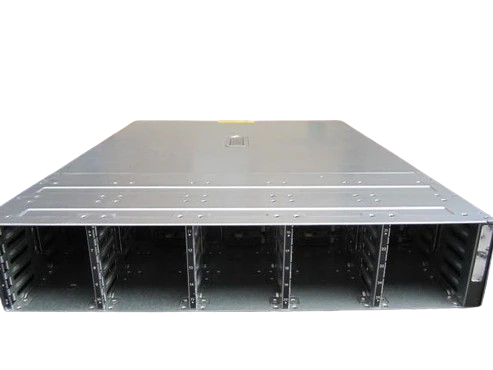

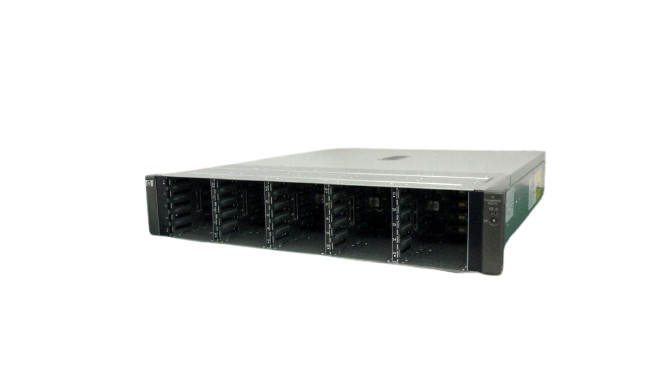

HP StorageWorks Modular Smart Array 70 Storage Enclosure REFURB – 418800-B21-RFB

REFURBISHED WITH A 90 DAY CCS WARRANTY — EXCELLENT CONDITION & COMPLETE WITH RAIL KIT.

Overview

The HP StorageWorks Modular Smart Array 70 (MSA70) is a high-density 2U SAS storage enclosure designed to provide scalable, high-performance external storage for HP ProLiant server environments. Supporting both 2.5-inch SAS and SATA drives, the MSA70 delivers excellent storage flexibility, availability, and upgradeability for growing business infrastructures.

Designed for demanding enterprise workloads, the MSA70 enclosure offers industry-leading storage density with support for up to 25 hot-swappable drives in a compact 2U rack-mount design. The enclosure is ideal for businesses seeking cost-effective storage expansion while maintaining reliability and performance.

This refurbished HP MSA70 includes rack rails, mini-SAS cable, power cords, and a 90-day CCS warranty.

Key Features

• Supports 25 hot-swappable 2.5-inch drives
• Compatible with SAS and SATA hard drives
• 2U rack-mount storage enclosure
• High-density external storage expansion
• SAS connectivity for enterprise performance
• Modular scalable storage platform
• Supports cascading expansion
• Excellent compatibility with HP ProLiant servers

Technical Specifications

Brand: HP
Product Line: StorageWorks
Model: Modular Smart Array 70 (MSA70)
Part Number: 418800-B21-RFB
Condition: Refurbished

Drive Support

• 25 × 2.5-inch hot-swappable drive bays
• Supports SAS hard drives
• Supports SATA hard drives

Storage Capacity

• Up to 7.5TB maximum capacity
• Capacity dependent on installed drives

Expansion

Supports 1+1 cascading off single x4 SAS port

Form Factor

• Rack-mountable
• 2U enclosure

Dimensions

• Width: 44.81 cm
• Depth: 59.06 cm
• Height: 8.81 cm

Included Accessories

The package includes:

• HP MSA70 base enclosure
• Rack mounting hardware kit
• 0.5m mini-SAS cable
• Two AC power cords
• Two PDU interconnect cords

Compatibility

The HP StorageWorks MSA70 is compatible with numerous HP ProLiant servers, including:

• HP ProLiant DL Series servers
• HP ProLiant ML Series servers
• HP ProLiant G5, G6, and G7 platforms

Popular supported models include:

• DL360 G6 / G7
• DL380 G5 / G6
• DL385 G5 / G6 / G7
• DL580 G7
• ML350 G5 / G6
• ML370 G5 / G6

And many additional HP ProLiant configurations.

Benefits of the HP MSA70

• High-density 25-drive storage expansion
• Flexible SAS and SATA drive support
• Enterprise-grade reliability
• Scalable modular architecture
• Space-saving 2U rack design
• Easy deployment with included rails and cables
• Ideal for virtualization and backup environments
• Cost-effective refurbished enterprise storage

Ideal Use Cases

• Storage expansion
• Backup and archive storage
• Virtualization environments
• File servers
• Database storage
• SMB infrastructure
• Departmental storage
• Data center deployments

Why Buy This Refurbished MSA70

• Professionally refurbished
• Excellent cosmetic and working condition
• Includes rack kit and cables
• Tested for reliability and performance
• Backed by 90-day CCS warranty
• Cost-effective enterprise storage solution

FAQs

What drives are supported in the MSA70?
The enclosure supports both 2.5-inch SAS and SATA hard drives.

How many drives can the MSA70 support?
It supports up to 25 hot-swappable drives.

Is the rack mounting kit included?
Yes. Rack rails and mounting hardware are included.

Can the MSA70 be expanded further?
Yes. The enclosure supports cascading expansion through the SAS interface.

Is this unit new or refurbished?
This is a refurbished unit in excellent condition with a 90-day CCS warranty.

Which servers are compatible with the MSA70?
The enclosure supports a wide range of HP ProLiant G5, G6, and G7 servers.
