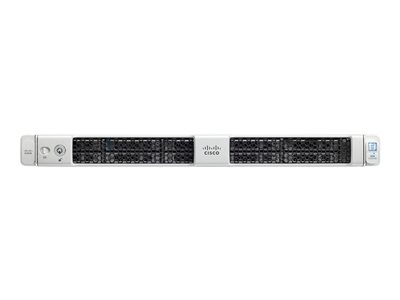

Cisco UCS C220 M5SX SFF Rack-mountable NO CPU REFURB HX-C220-M5SX

REFURBISHED WITH A 90 DAY CCS WARRANTY!!! The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and capacity points up to 128GB, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card. The HX-Series unifies compute, storage, and networking for your core to the edge. The HyperFlex HX Data Platform is a high-performance, distributed file system that supports multiple hypervisors with a wide range of enterprise-grade data management and optimization services. And HyperFlex can be managed from anywhere with the intelligent, cloud-based Cisco Intersight. Specifications

• Brand: Cisco
• SKU # HX-C220-M5SX

General Information
• Product Name: Ucs C220 M5 SFF 10 HD without CPU Memory PCIE
• Product Series: C220 M5
• Product Type: Barebone System

Interfaces/Ports
• Total Number of USB Ports: 2
• Number of USB 3.0 Ports: 2

Controllers
• Controller Type: 12Gb/s SAS
• RAID Supported: Yes

Display & Graphics
• Graphics Controller Manufacturer: Matrox
• Graphics Controller Model: G200e
• Graphics Memory Capacity: 8 MB

I/O Expansions
• Number of Total Expansion Bays: 10
• Number of Internal 2.5" Bays: 10

Memory
• Maximum Memory Supported: 3 TB
• Memory Technology: DDR4 SDRAM
• Memory Standard: DDR4-2666/PC4-21300
• Number of Total Memory Slots: 24

Network & Communication
• Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet

Power Description
• Input Voltage: 120 V AC, 230 V AC

Storage
• Optical Drive Type: No

Processor & Chipset
• Number of Processors Supported: 2
• Processor Supported: Xeon Platinum Xeon Gold, Xeon Silver, Xeon Bronze
• 64-bit Processing: Yes
• Chipset Manufacturer: Intel
• Chipset Model: C620

Physical Characteristics
• Color: Silver
• Form Factor: Rack-mountable
• Rack Height: 1U

UPC : 00889728014168
