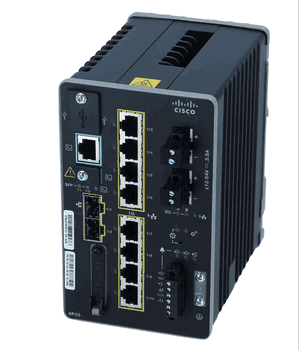

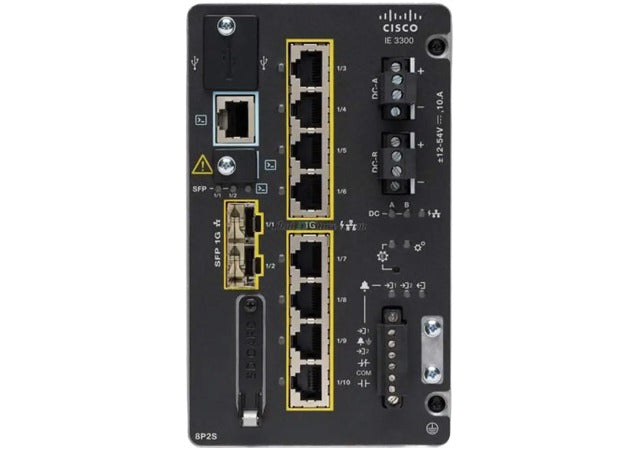

IE-3300-8P2S-A Cisco Catalyst IE3300 Rugged Managed Switch

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER’S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The IE-3300-8P2S-A is a rugged Cisco Catalyst industrial switch designed to deliver reliable Gigabit Ethernet connectivity with integrated PoE+ for demanding industrial and extended enterprise environments. It combines powered access ports with fiber expansion, enabling flexible network design at the industrial edge.

Running Cisco Network Advantage software, this switch supports secure, scalable networking with advanced control features. Its compact DIN rail–mountable form factor and wide operating temperature range make it suitable for continuous operation in harsh conditions.

Key Features

·         Eight Gigabit Ethernet PoE+ ports with a high 360W PoE budget

·         Two SFP fiber ports for extended-distance uplinks

·         Cisco Network Advantage software for secure, managed networking

·         Rugged DIN rail–mountable design for industrial installations

·         Supports Layer 2 and essential Layer 3 networking features

·         Built for long-term operation in extreme temperature environments

Technical Specifications

Manufacturer: Cisco Systems
Brand: Cisco
Product Line: Cisco Catalyst
Product Series: IE3300
Model: IE-3300-8P2S-A
Product Type: Managed Industrial Ethernet Switch
Subcategory: Network Hubs and Switches
Packaged Quantity: 1 Unit

Form Factor: DIN rail mountable
Manageable: Yes

Memory & Storage:

·         RAM: 2 GB

·         Flash Memory: 1.5 GB

·         Built-in Devices: SD card reader

Ports & Interfaces:

·         8 × 10/100/1000 Base-T RJ-45 ports (PoE+)

·         2 × SFP (mini-GBIC) fiber ports

·         Console (mini-USB)

·         Serial (RS-232) RJ-45 console

·         Alarm interfaces

Switching & Performance:

·         Switching Type: Gigabit Ethernet

·         Power Consumption (Operational): 35 W

·         PoE Budget: 360 W

Routing & Protocols:

·         Routing Protocols: IGMP, IGMPv2, IGMPv3

Security & Management:

·         Authentication: RADIUS, TACACS+

·         Remote Management: DHCP, NTP, SCP, SNMP, SNMPv3, SSH

Environmental Ratings:

·         Operating Temperature: -40°F to 140°F

·         Storage Temperature: -40°F to 185°F

·         MTBF: 611,350 hours

Capacity:

·         IGMP Multicast Groups: 1000

·         VLAN IDs: 256

·         STP Instances: 128

·         Queues: 8

Power:

·         Device Type: Internal power supply

Use Cases

The IE-3300-8P2S-A works best for industrial automation, smart manufacturing, transportation systems, utilities, and outdoor enterprise deployments. It powers PoE-enabled devices, such as cameras, access points, sensors, and controllers, while supporting fibre uplinks for resilient network design.

Why Choose IE-3300-8P2S-A

·         Delivers high PoE+ power capacity for multiple industrial devices

·         Combines copper access and fiber uplinks in a compact, rugged switch

·         Supports secure, managed networking with Cisco Network Advantage

·         Designed for reliable operation in harsh industrial environments

·         Trusted Cisco Catalyst platform with full manufacturer warranty

FAQs

What is the IE-3300-8P2S-A used for?

The IE-3300-8P2S-A provides Gigabit Ethernet and PoE+ connectivity for industrial devices while supporting fiber uplinks for extended-distance and resilient network designs.

How much PoE power does this switch support?

The switch supports a total PoE budget of 360 watts, allowing it to power multiple PoE-enabled devices such as cameras, access points, and sensors.

Does the IE-3300-8P2S-A support fiber connections?

Yes. It includes two SFP ports that support fiber connectivity for longer distances and improved noise immunity in industrial environments.

Is this switch suitable for harsh industrial conditions?

Yes. It comes with a rugged DIN rail–mountable form factor and wide temperature tolerance for continuous operation in demanding environments.

Does the IE-3300-8P2S-A include Cisco warranty coverage?

Yes. The switch is brand new, factory-sealed, and includes a full Cisco manufacturer's warranty when purchased from Chicago Computer Supply.
