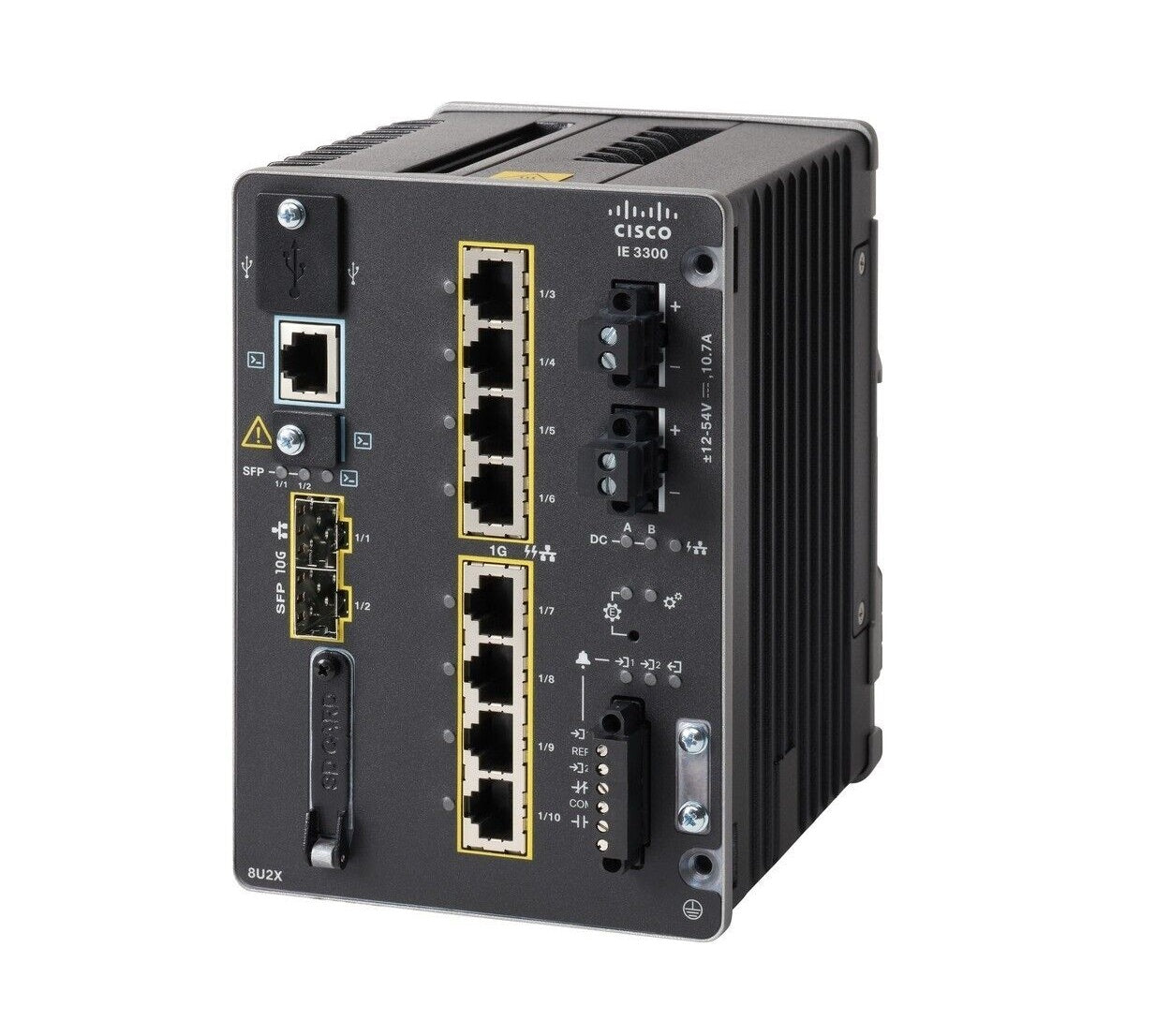

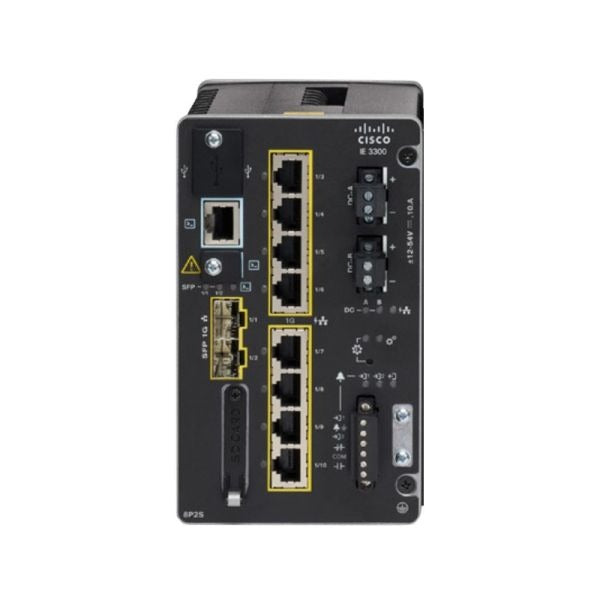

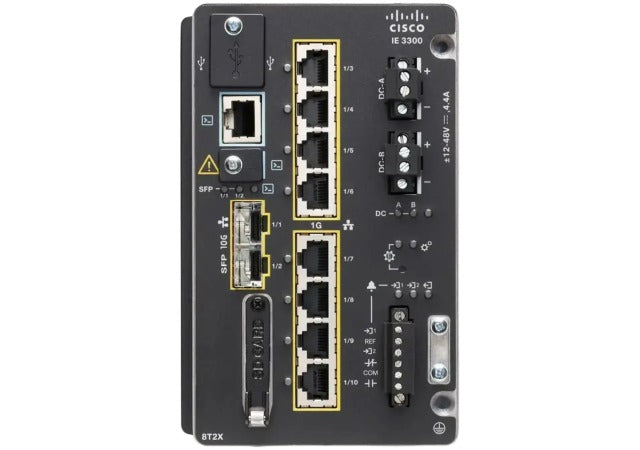

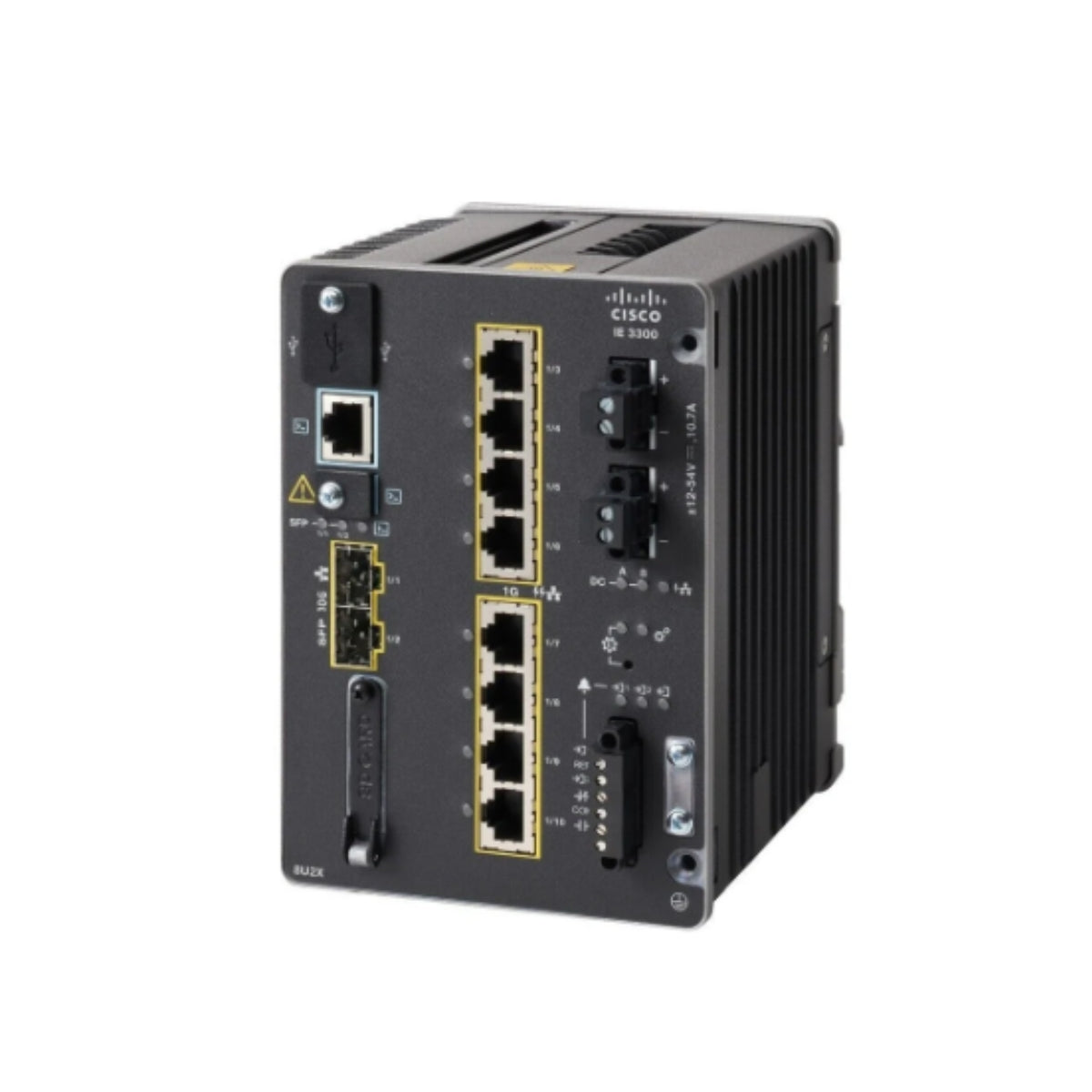

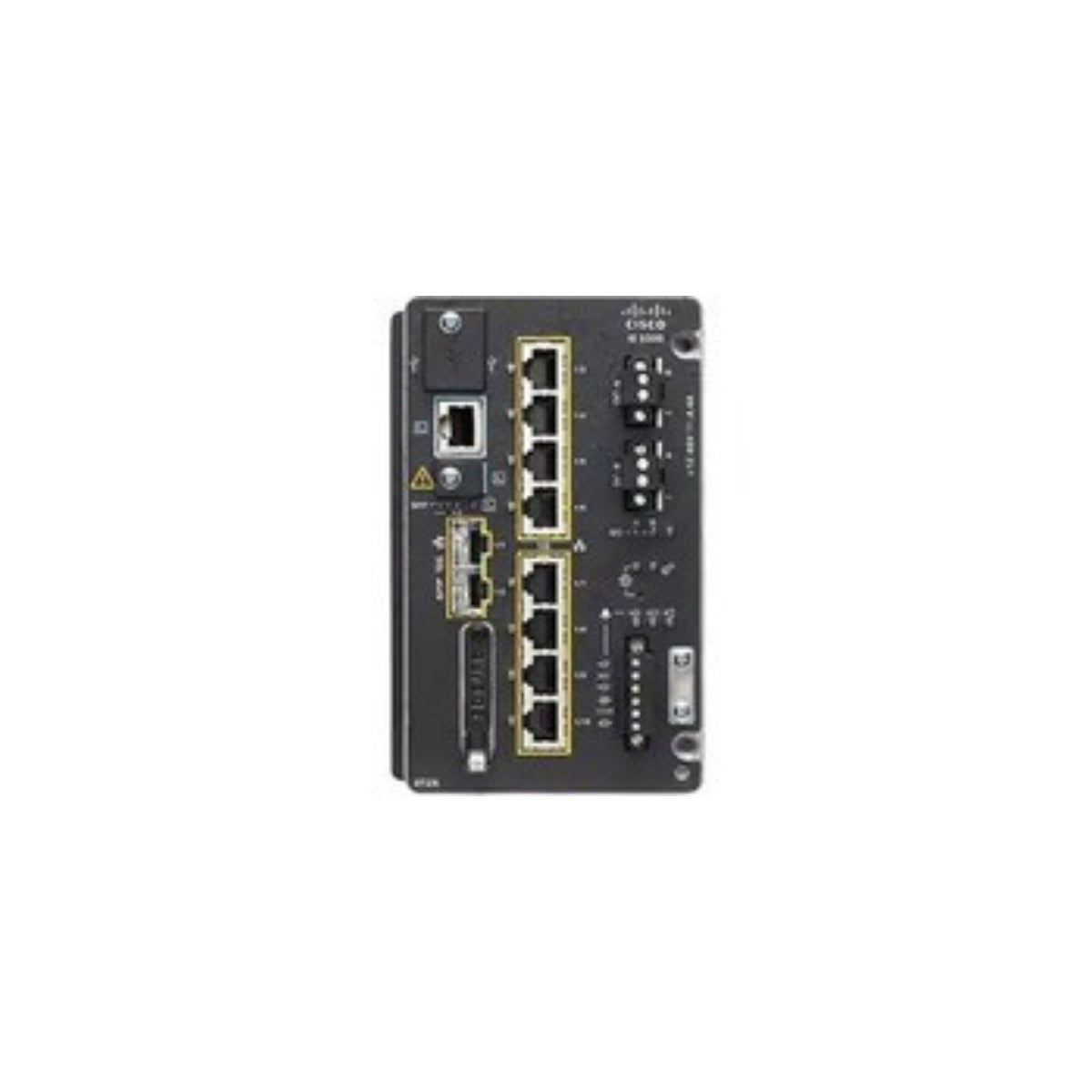

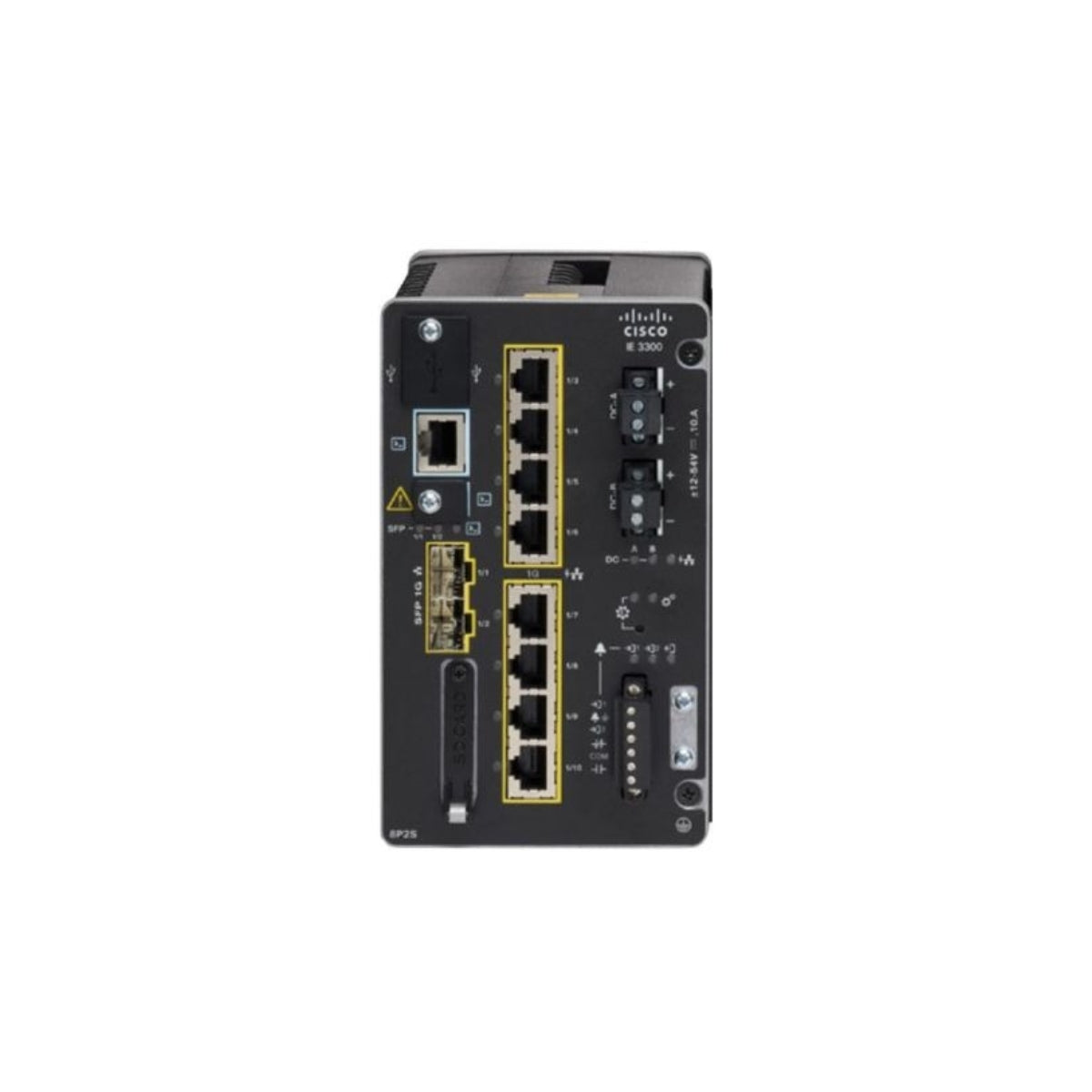

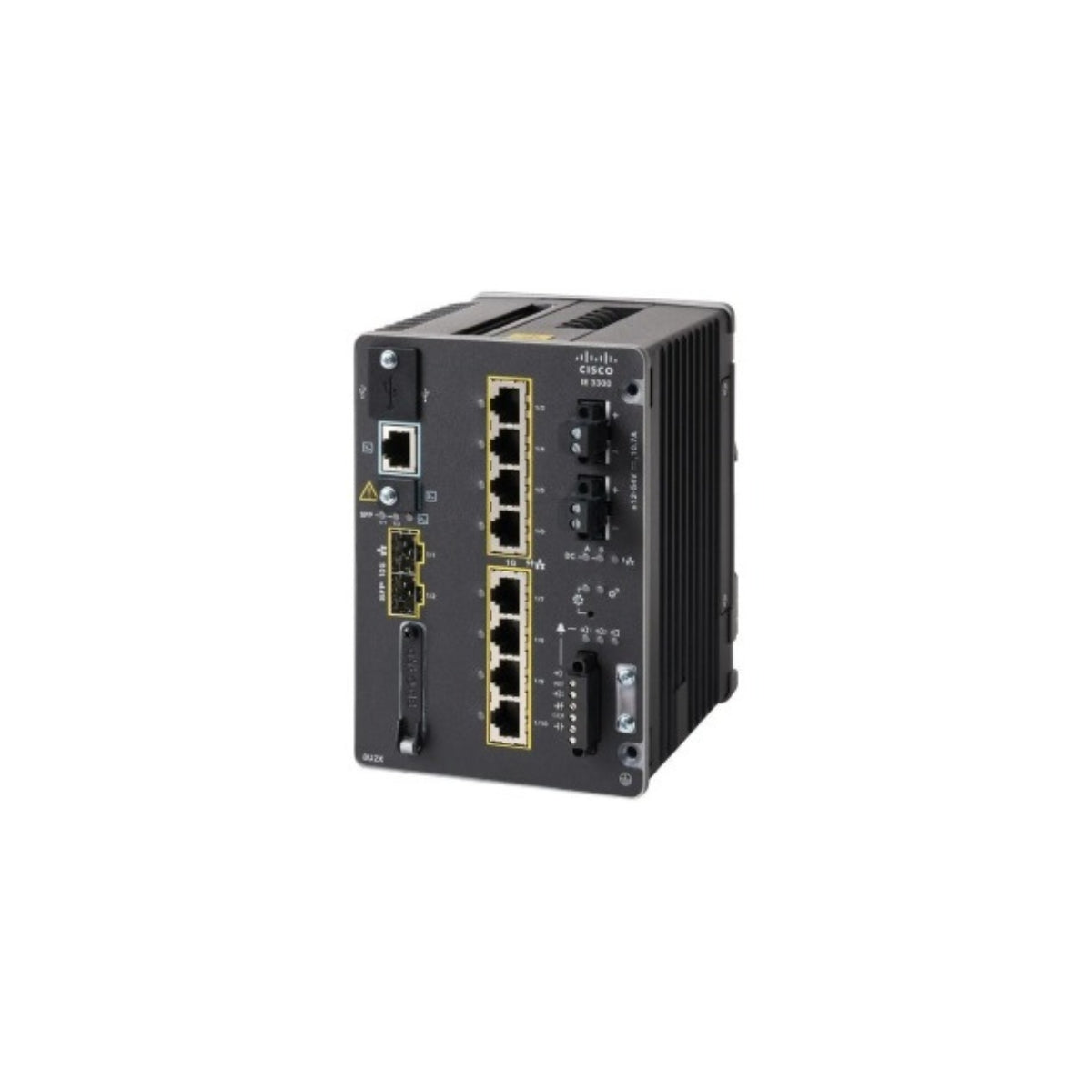

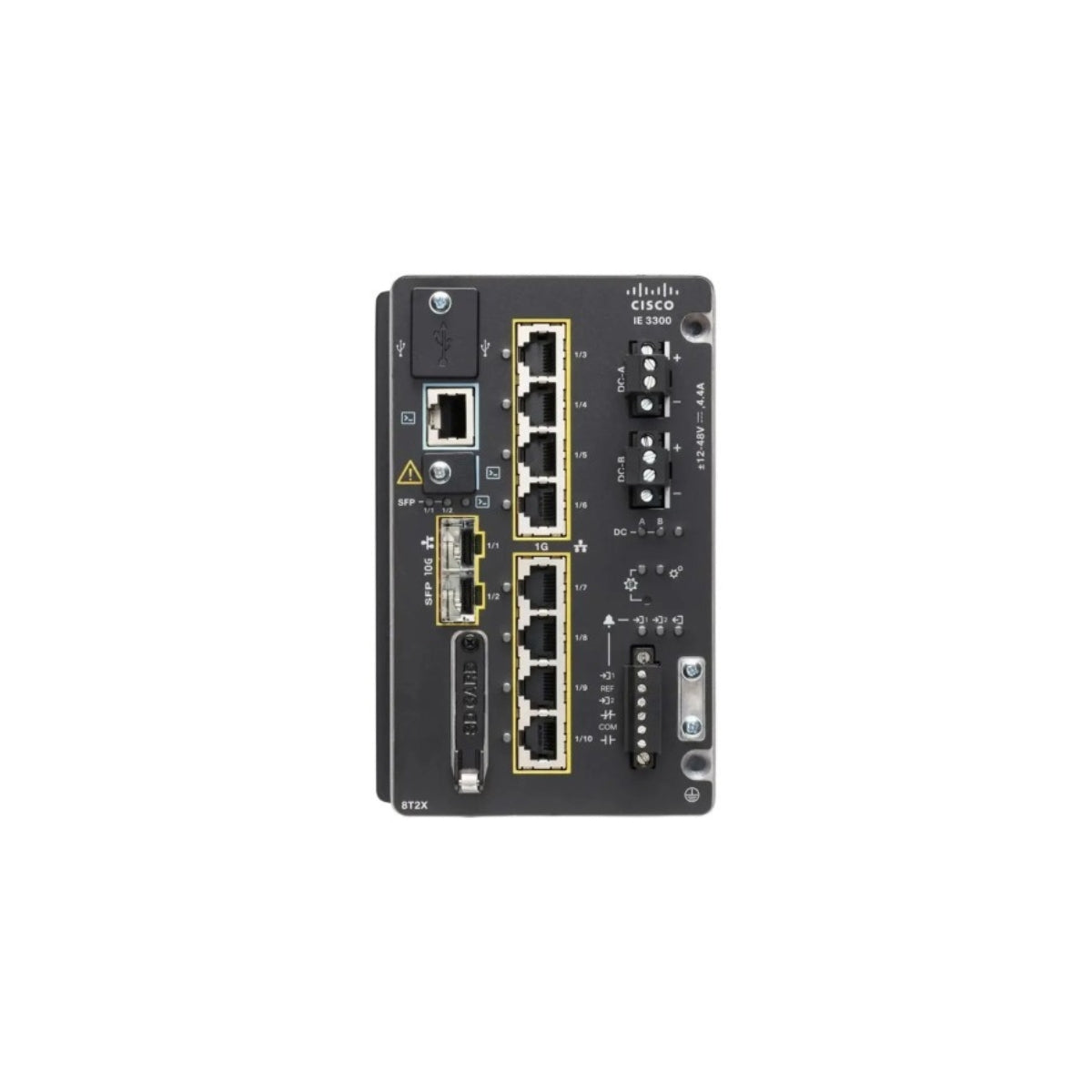

IE-3300-8T2X-A Cisco Catalyst IE3300 Rugged Managed Switch

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER'S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The IE-3300-8T2X-A is a compact, rugged Cisco Catalyst industrial switch built for high-performance edge networking in harsh environments. It delivers eight Gigabit Ethernet copper ports paired with high-speed uplinks, making it ideal for aggregation, control networks, and extended enterprise deployments.

Running Cisco Network Advantage software, this switch supports advanced routing, automation, and security features. Its DIN rail–mountable design and wide temperature tolerance ensure reliable, continuous operation in demanding industrial conditions.

Key Features

·         Eight Gigabit Ethernet copper ports for industrial device connectivity

·         Two 1G/10G SFP+ uplinks for high-speed aggregation and backbone links

·         Rugged DIN rail–mountable design for industrial cabinets and panels

·         Advanced Layer 2 and Layer 3 routing with Cisco Network Advantage

·         High MAC table capacity and jumbo frame support

·         Built for continuous operation in harsh temperature environments

Technical Specifications

Manufacturer: Cisco Systems
Brand: Cisco
Model: IE-3300-8T2X-A
Product Type: Managed Industrial Ethernet Switch
Subcategory: Network Hubs and Switches
Packaged Quantity: 1 Unit

Form Factor: DIN rail mountable
Manageable: Yes

Memory & Storage:

·         RAM: 4 GB

·         Flash Memory: 1.5 GB

·         Built-in Devices: SD card reader

Ports & Interfaces:

·         8 × 10/100/1000 Base-T RJ-45 ports

·         2 × 1G/10G SFP+ uplink ports

·         Console (mini-USB Type B)

·         Serial (RS-232) RJ-45

·         Alarm input and output interfaces

Switching & Performance:

·         Switching Type: Gigabit Ethernet

·         Jumbo Frame Support: Up to 8996 bytes

·         MAC Address Table: 8000 entries

Routing Protocols:
BGP, BGP for IPv6, EIGRP, EIGRP for IPv6, OSPF, IS-IS (IPv4/IPv6), RIP, PIM, VRRP, HSRP, Static IP routing

Security & Management:

·         Authentication: RADIUS, TACACS+, SSH

·         Remote Management: SNMP v1/v2/v3, NETCONF, RESTCONF, YANG, HTTPS, Telnet, SCP, TFTP, NTP, RMON

Power:

·         Supports dual power supplies

·         Redundant Power Supply: Optional

Environmental Ratings:

·         Operating Temperature: -40°F to 140°F

·         Storage Temperature: -40°F to 185°F

·         MTBF: 463,629 hours

Capacity:

·         ACLs (PACL/VACL/RACL): 1500

·         IGMP Multicast Groups: 1000

·         VLANs Supported: 256

·         STP Instances: 128

·         Queues: 8

Use Cases

The IE-3300-8T2X-A is for industrial automation, smart manufacturing, transportation networks, utilities, and critical infrastructure. It supports reliable copper connectivity for controllers, sensors, and PLCs while providing high-speed uplinks to aggregation or core layers.

Why Choose IE-3300-8T2X-A

·         Combines rugged Gigabit access with high-speed 10G uplinks

·         Supports advanced routing and automation at the industrial edge

·         Designed for reliable operation in harsh environments

·         Enables scalable and future-ready network architectures

·         Trusted Cisco Catalyst platform with full manufacturer warranty

FAQs

What is the IE-3300-8T2X-A used for?

The IE-3300-8T2X-A is used to provide reliable Gigabit Ethernet connectivity and high-speed uplinks in industrial and extended enterprise networks.

Does this switch support 10G uplinks?

Yes. It includes two SFP+ ports that support 1G or 10G Ethernet for aggregation and backbone connections.

Is the IE-3300-8T2X-A suitable for harsh environments?

Yes. It is for industrial use with wide temperature tolerance and a rugged DIN rail–mountable form factor.

What routing capabilities does this switch support?

It supports advanced Layer 3 routing protocols, including OSPF, BGP, EIGRP, and static routing, using Cisco Network Advantage software.

Does the IE-3300-8T2X-A include Cisco warranty coverage?

Yes. The switch is brand new, factory-sealed, and includes a full Cisco manufacturer's warranty when purchased from Chicago Computer Supply.
