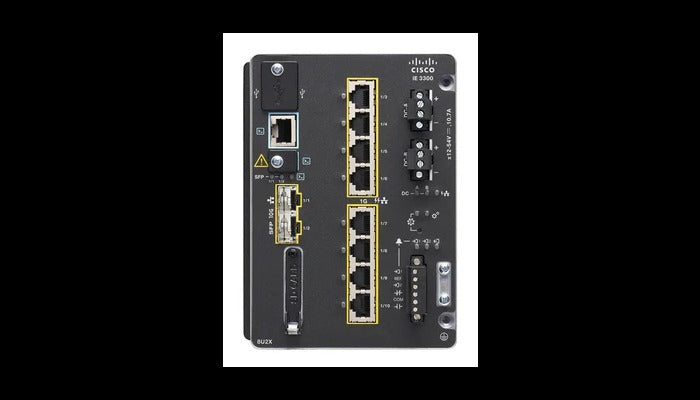

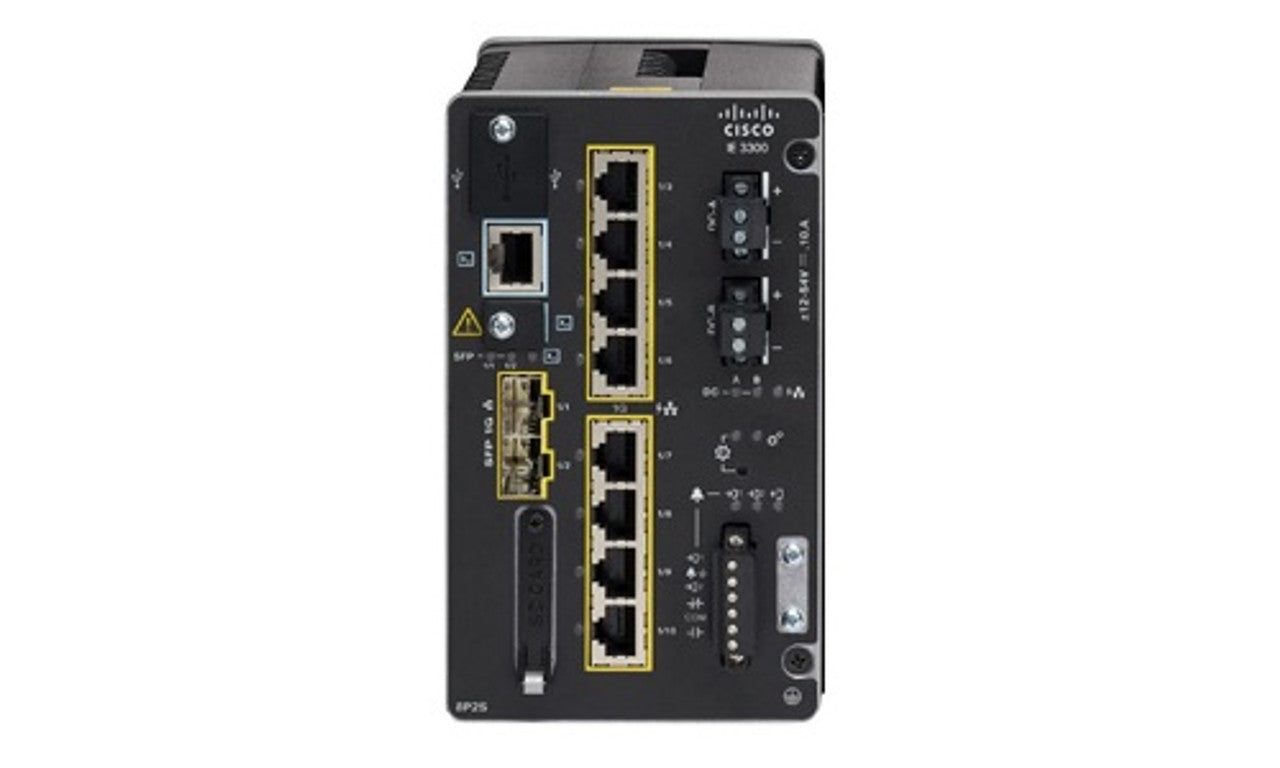

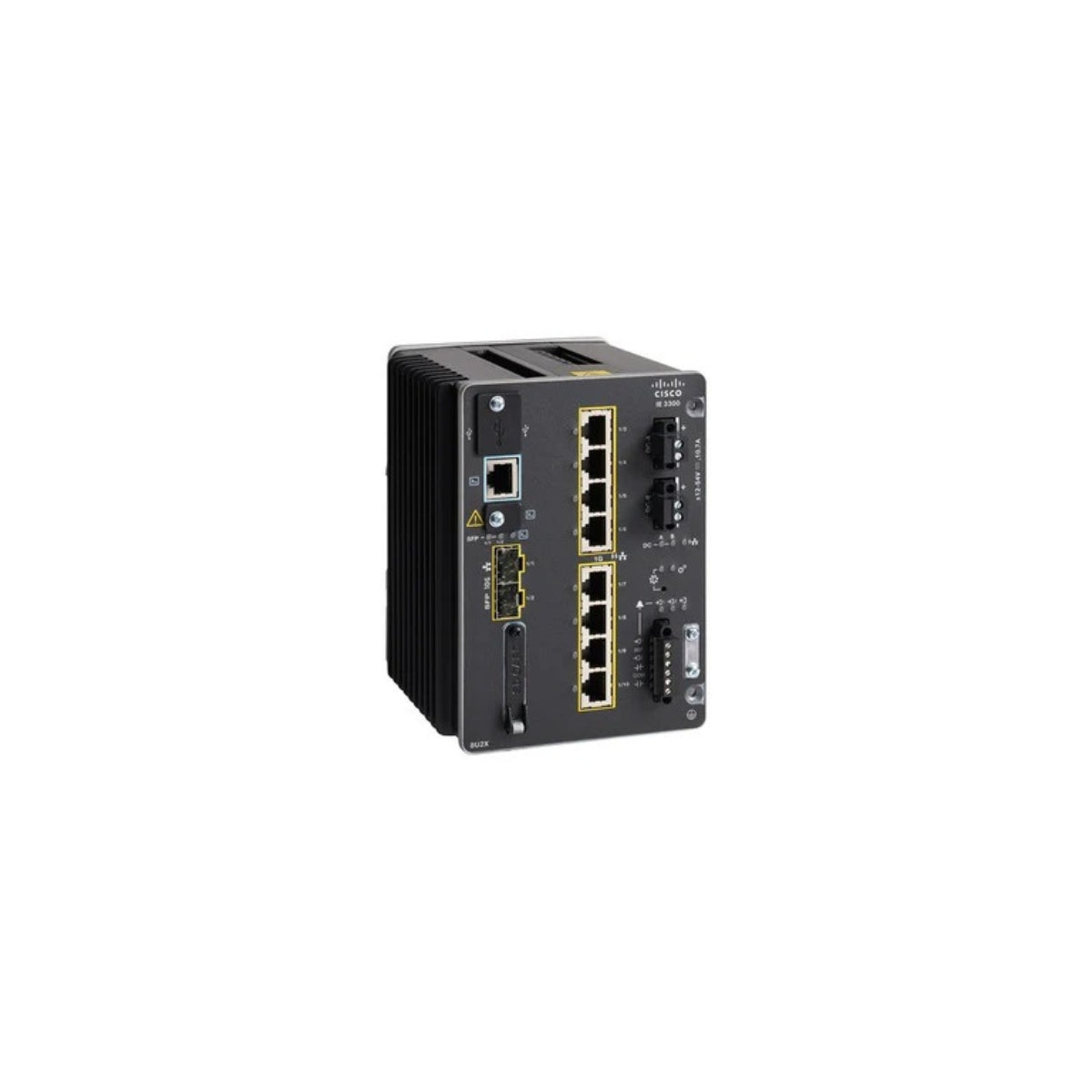

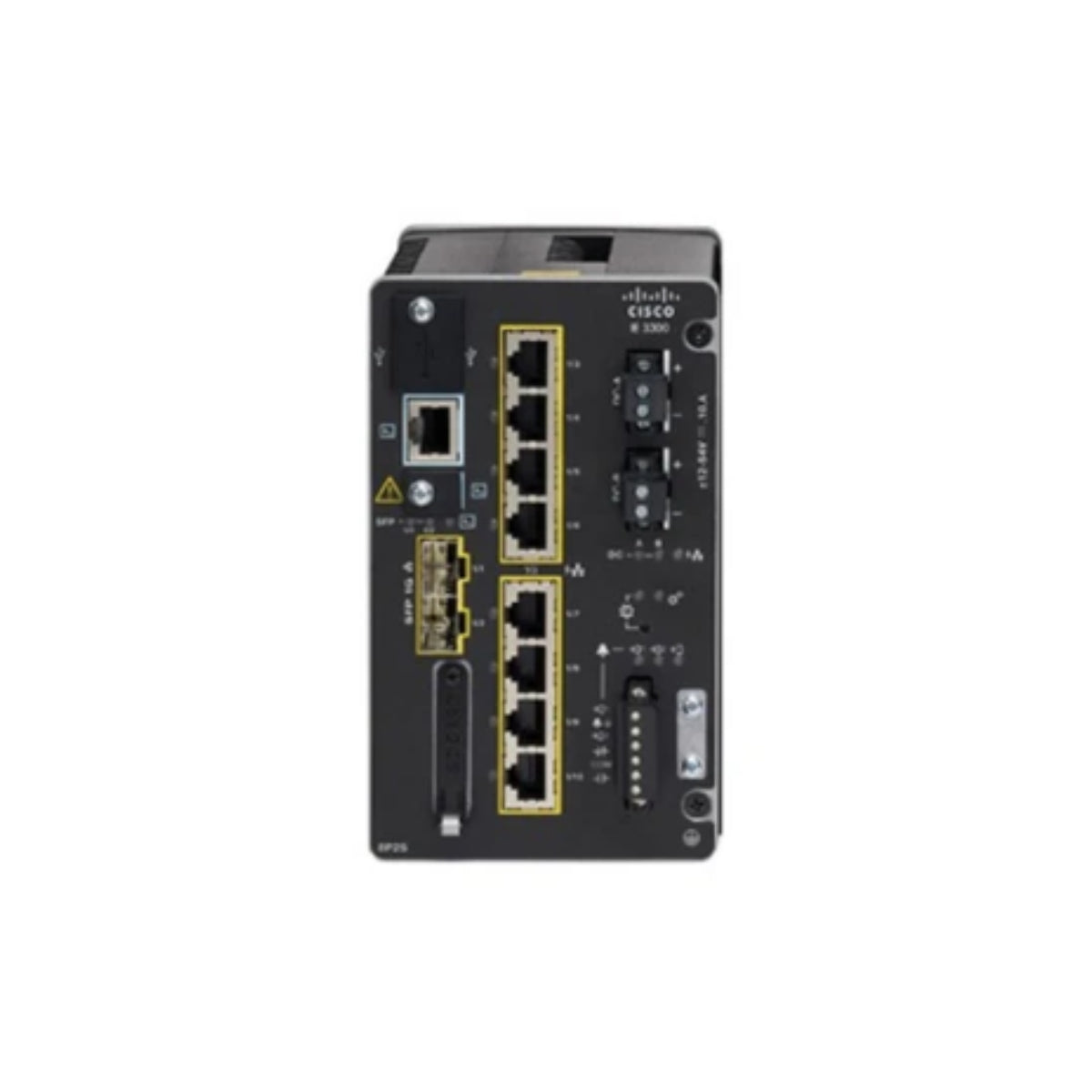

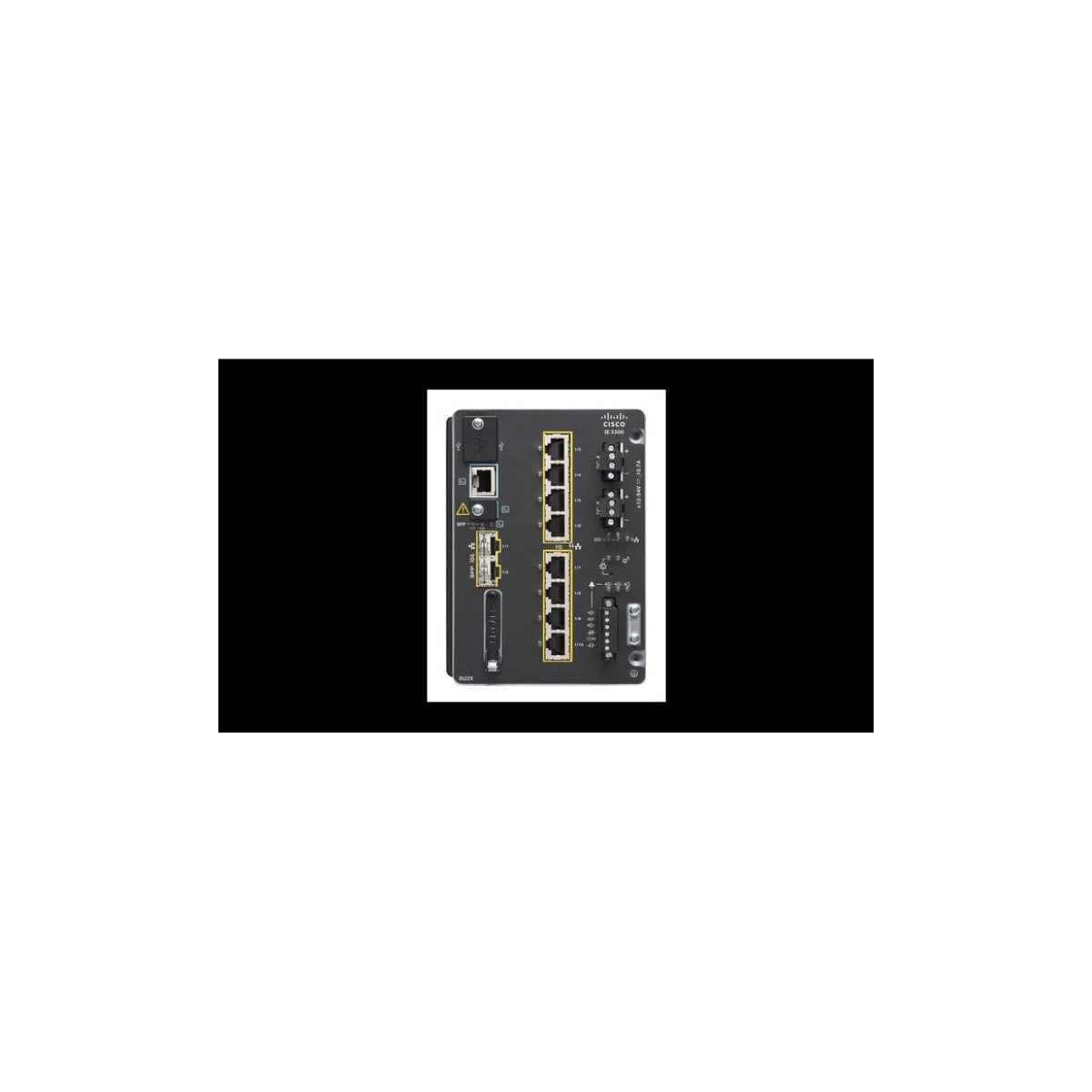

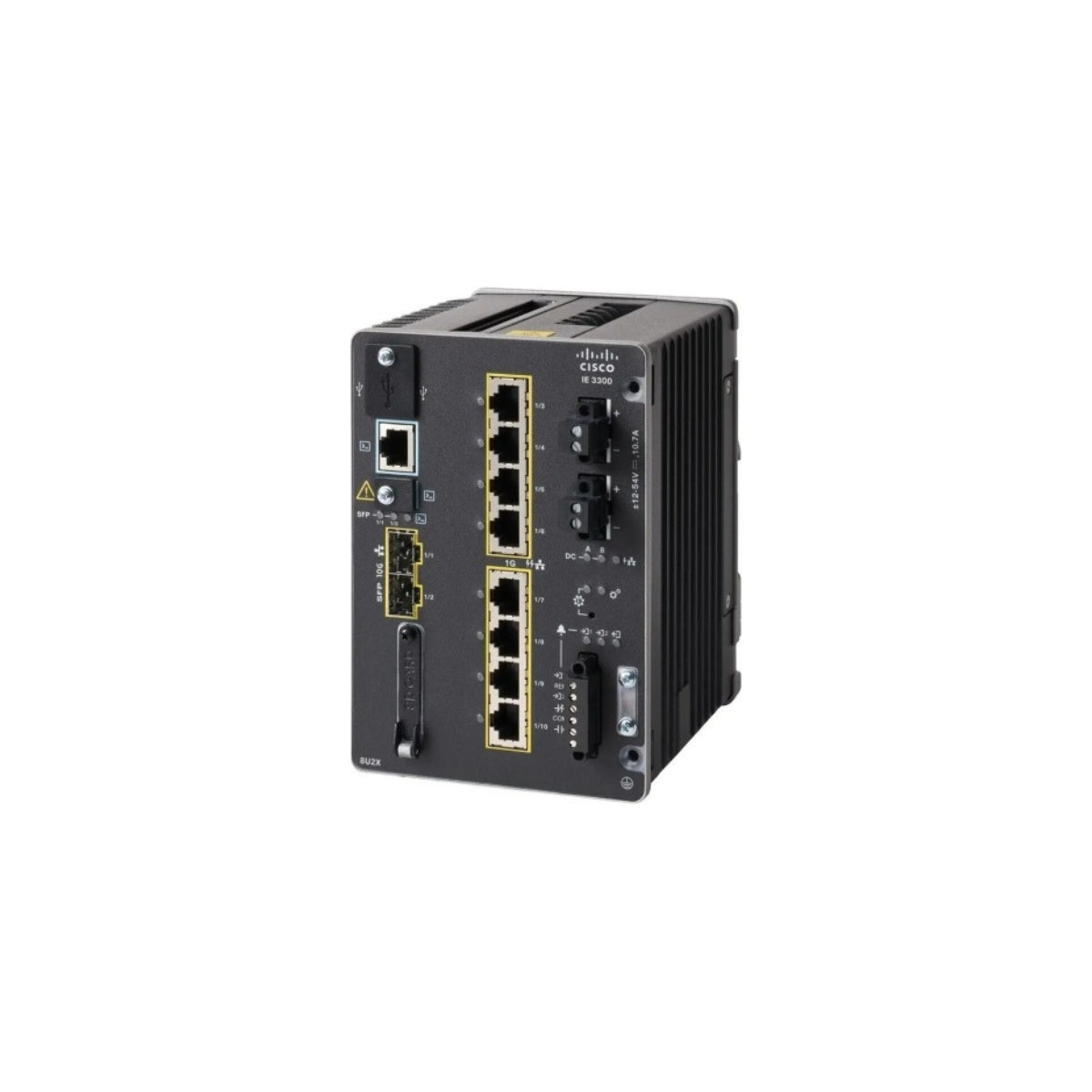

IE-3300-8U2X-A Cisco Catalyst IE3300 Rugged Managed Switch

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER’S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The IE-3300-8U2X-A is a high-performance Cisco Catalyst IE3300 rugged industrial switch designed for advanced industrial and extended enterprise networks. It combines high-density PoE++ access with high-speed uplinks, making it ideal for powering and connecting modern industrial devices at the network edge.

Built on Cisco Network Advantage software, this switch supports advanced routing, automation, and security features. Its compact DIN rail–mountable design ensures reliable operation in harsh industrial environments where performance, resiliency, and manageability are critical.

Key Features

·         Eight Gigabit Ethernet PoE++ ports for high-power industrial endpoints

·         Two 1G/10G SFP+ uplinks for high-speed aggregation and backbone connectivity

·         Rugged DIN rail–mountable design for harsh industrial environments

·         Supports advanced Layer 2 and Layer 3 routing capabilities

·         Cisco Network Advantage software with automation and security features

·         Designed for continuous operation in extreme temperature conditions

Technical Specifications

Manufacturer: Cisco Systems
Brand: Cisco
Model: IE-3300-8U2X-A
Product Type: Managed Industrial Ethernet Switch
Subcategory: Network Hubs and Switches
Packaged Quantity: 1 Unit

Form Factor: DIN rail mountable
Manageable: Yes

Memory & Storage:

·         RAM: 4 GB

·         Flash Memory: 1.5 GB

·         Built-in Devices: SD card reader

Ports & Interfaces:

·         8 × 10/100/1000 Base-T RJ-45 PoE++ ports

·         2 × 1G/10G SFP+ uplink ports

·         Console (mini-USB Type B)

·         Serial (RS-232) RJ-45

·         Alarm input and output interfaces

Switching & Routing:

·         Switching Type: Gigabit Ethernet

·         Jumbo Frame Support: Up to 8996 bytes

·         MAC Address Table: 8000 entries

Routing Protocols:
BGP, BGP for IPv6, EIGRP, EIGRP for IPv6, OSPF, IS-IS (IPv4/IPv6), RIP, PIM, VRRP, HSRP, Static IP routing

Security & Management:

·         Authentication: RADIUS, TACACS+, SSH

·         Remote Management: SNMP v1/v2/v3, NETCONF, RESTCONF, YANG, HTTPS, Telnet, SCP, TFTP, NTP, RMON

Power:

·         Supports dual power supplies

·         Redundant Power Supply: Optional

Environmental Ratings:

·         Operating Temperature: -40°F to 140°F

·         Storage Temperature: -40°F to 185°F

·         MTBF: 436,034 hours

Capacity:

·         ACLs (PACL/VACL/RACL): 1500

·         IGMP Multicast Groups: 1000

·         VLANs Supported: 256

·         STP Instances: 128

Queues: 8

Use Cases

The IE-3300-8U2X-A is for industrial automation, smart manufacturing, transportation systems, utilities, and critical infrastructure. It supports high-power devices such as industrial cameras, access points, sensors, and controllers while providing high-speed uplink connectivity.

Why Choose IE-3300-8U2X-A

·         Combines PoE++ access and high-speed 10G uplinks in one rugged switch

·         Supports advanced routing and automation for modern industrial networks

·         Designed for reliable operation in harsh environments

·         Enables scalable edge and aggregation deployments

·         Trusted Cisco Catalyst platform with full manufacturer warranty

FAQs

What is the IE-3300-8U2X-A used for?

The IE-3300-8U2X-A is used to connect and power industrial devices using PoE++ while providing high-speed uplink connectivity in rugged industrial and extended enterprise environments.

Does the IE-3300-8U2X-A support PoE++?

Yes. It includes eight PoE++ Gigabit Ethernet ports capable of delivering higher power to industrial endpoints such as cameras, access points, and controllers.

What uplink options does this switch provide?

The switch includes two SFP+ ports supporting 1G or 10G Ethernet, allowing high-speed aggregation or backbone connections.

Is the IE-3300-8U2X-A suitable for harsh environments?

Yes. It is for industrial conditions with wide temperature tolerance and a rugged DIN rail–mountable form factor.

Does this switch include Cisco warranty coverage?

Yes. The IE-3300-8U2X-A is brand new, factory-sealed, and includes a full Cisco manufacturer warranty when purchased from Chicago Computer Supply.
