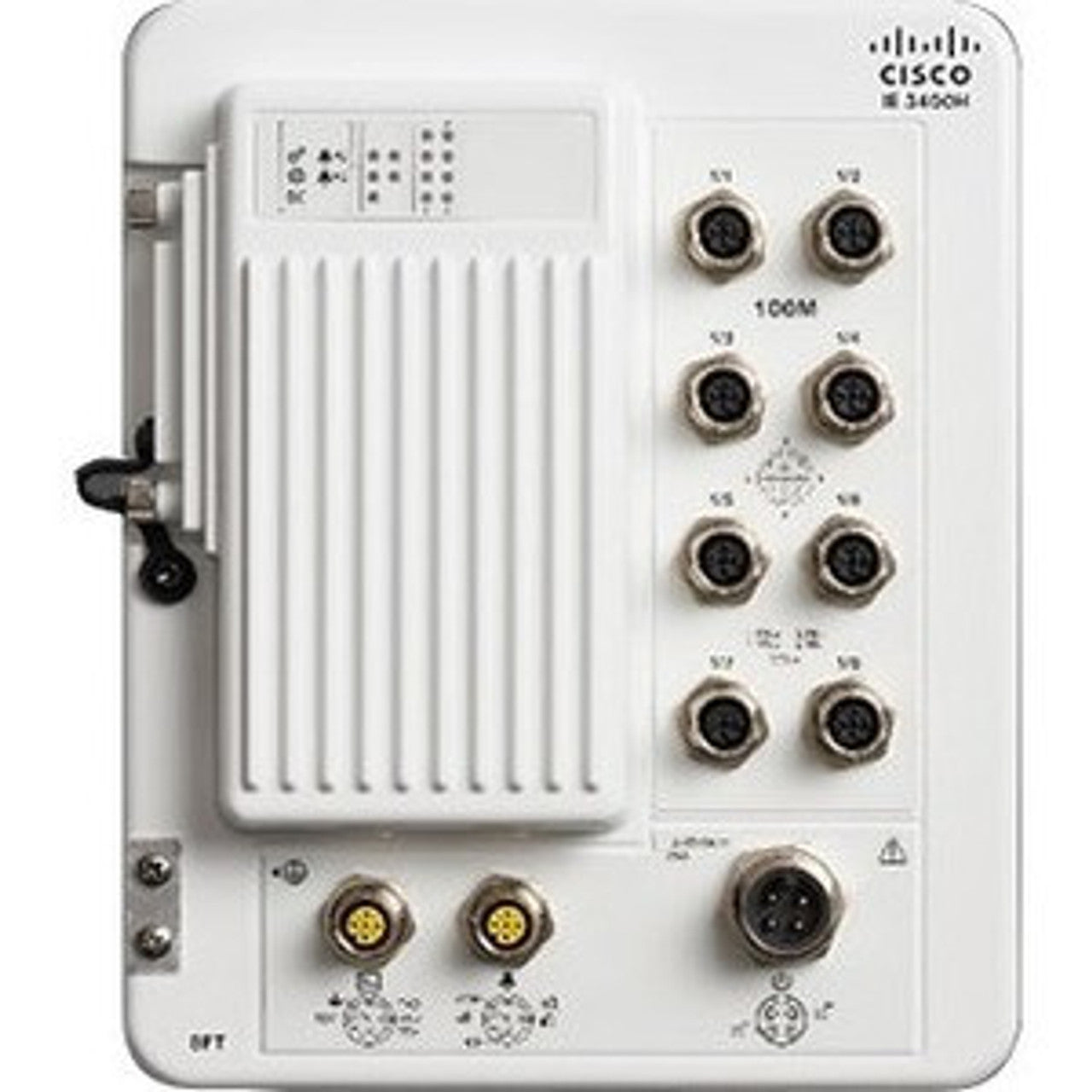

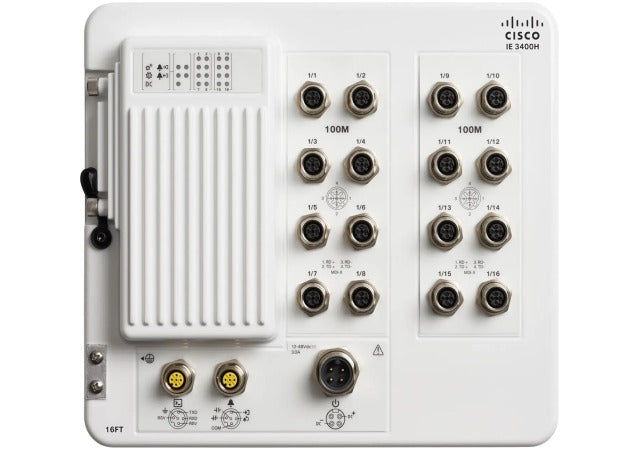

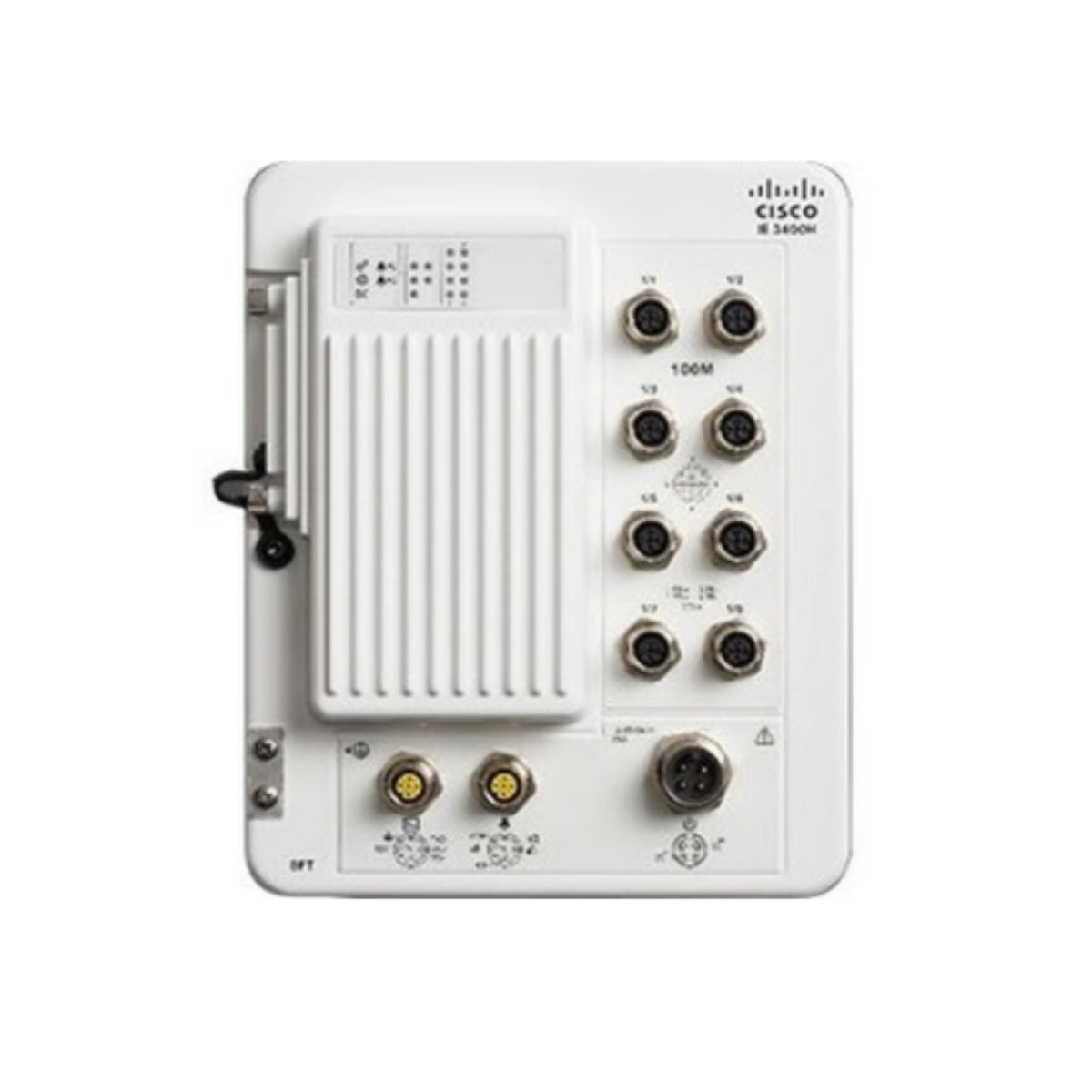

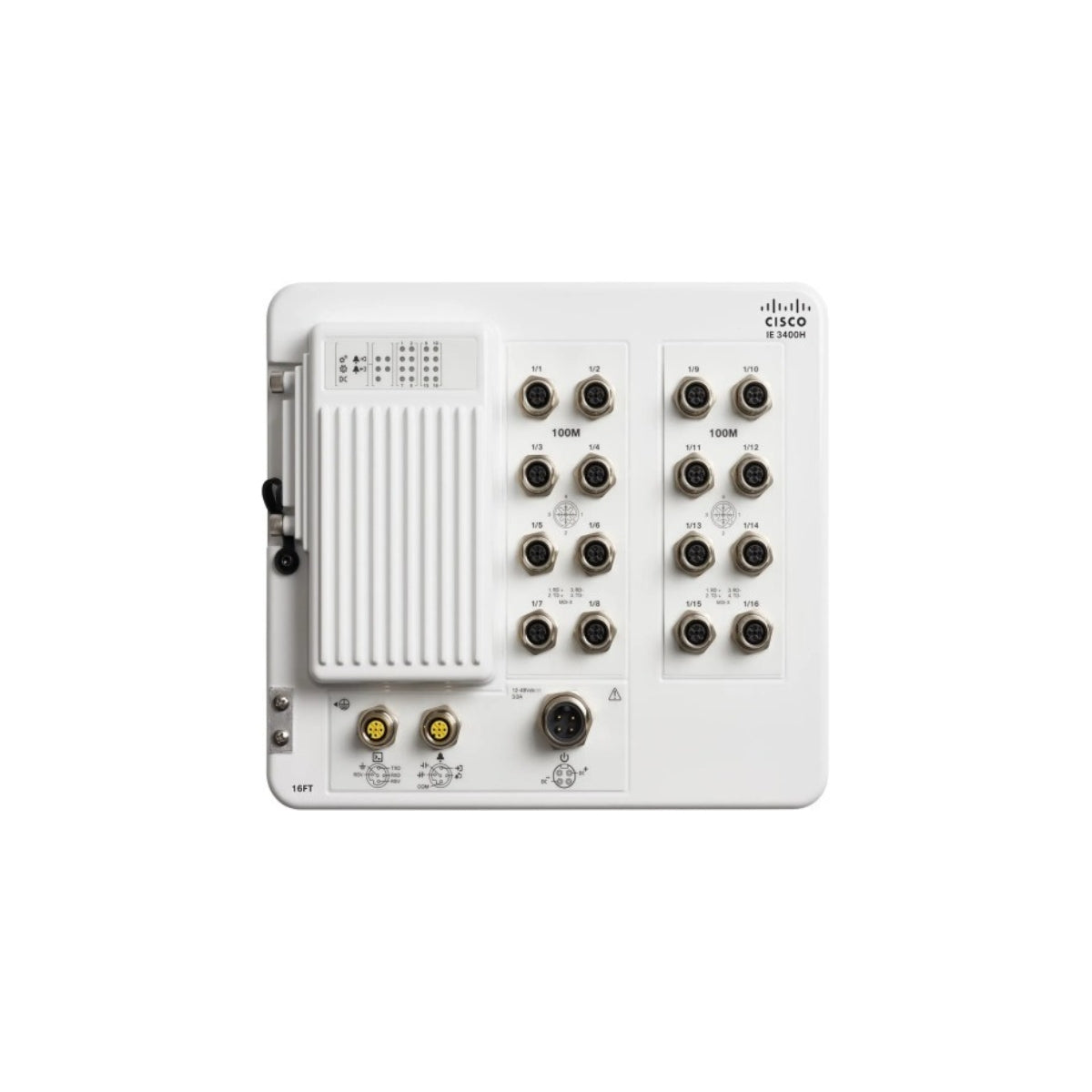

IE-3400H-16FT-A Cisco Catalyst IE3400 Heavy Duty Industrial Switch

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER'S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The IE-3400H-16FT-A is a heavy-duty Cisco Catalyst industrial switch engineered for extreme environments where dust, moisture, vibration, and temperature fluctuations are constant challenges. Built with an IP67-rated enclosure, it enables secure Ethernet connectivity directly at the industrial edge without the need for protective cabinets.

Powered by Cisco IOS XE, this switch extends intent-based networking to harsh OT environments. It delivers advanced security, segmentation, and visibility while supporting modern industrial networking, IoT edge deployments, and mission-critical automation systems.

Key Features

·         IP67-rated heavy-duty industrial switch for extreme environments

·         Sixteen Fast Ethernet M12 ports for secure industrial device connectivity

·         Wall-mountable design enabling cabinet-free deployment

·         Powered by Cisco IOS XE with secure boot and image signing

·         Supports advanced network segmentation, monitoring, and automation

·         Designed for continuous operation in dust- and water-exposed locations

Technical Specifications

Manufacturer: Cisco Systems
Brand: Cisco
Model: IE-3400H-16FT-A
Product Type: Managed Industrial Ethernet Switch
Subcategory: Network Hubs and Switches
Packaged Quantity: 1 Unit

Form Factor: Wall-mountable
Manageable: Yes

Memory & Storage:

·         RAM: 4 GB

·         Flash Memory: 1.5 GB

·         Built-in Devices: SD card reader

·         Expansion Slots: 1 × SD Memory Card

Ports & Interfaces:

·         16 × Fast Ethernet M12 ports (10/100)

·         Console port

·         2 × Alarm interfaces

Switching & Routing:

·         Switching Type: Fast Ethernet

·         Routing Protocols: IGMP, IGMPv2, IGMPv3

·         Spanning Tree: STP, RSTP, MSTP

Security & Management:

·         Encryption: 256-bit AES

·         Authentication: RADIUS, TACACS+, SSH

·         Remote Management: HTTP, SNMP v1/v2/v3, SSH, Telnet, SCP, TFTP, RMON, NTP

Capacity:

·         ACLs: 1500

·         IGMP Groups: 1000

·         VLAN IDs: 256

·         STP Instances: 128

·         Queues: 8

Environmental Ratings:

·         Operating Temperature: -40°F to 167°F

·         Storage Temperature: -40°F to 185°F

·         Operating Humidity: 5–95% non-condensing

·         MTBF: 489,458 hours

Power:

External power adapter supported (not included)

Use Cases

The IE-3400H-16FT-A is for heavy-duty industrial environments, including manufacturing floors, outdoor installations, transportation systems, utilities, and oil and gas facilities. It supports cabinet-free installations where reliability, security, and environmental resistance are critical.

Why Choose IE-3400H-16FT-A

·         Designed for direct deployment in dust- and water-exposed environments

·         Eliminates the need for protective enclosures with IP67-rated construction

·         Delivers enterprise-grade Cisco security at the industrial edge

·         Supports modern OT and IoT networking with Cisco IOS XE

·         Trusted Cisco platform backed by a full manufacturer's warranty

FAQs

What is the IE-3400H-16FT-A used for?

The IE-3400H-16FT-A provides secure, managed Ethernet connectivity in extreme industrial environments where traditional switches cannot operate reliably.

Is this switch suitable for outdoor or exposed locations?

Yes. Its IP67-rated design allows deployment in locations exposed to dust, moisture, and vibration without the need for a protective cabinet.

Which ports does the IE-3400H-16FT-A offer?

It includes sixteen Fast Ethernet M12 ports designed for secure, vibration-resistant industrial connections.

Does this switch support advanced security features?

Yes. It runs Cisco IOS XE and supports secure boot, encryption, authentication protocols, and advanced network segmentation.

Does the IE-3400H-16FT-A include Cisco warranty coverage?

Yes. The switch is brand new, factory-sealed, and includes a full Cisco manufacturer's warranty when purchased from Chicago Computer Supply.
