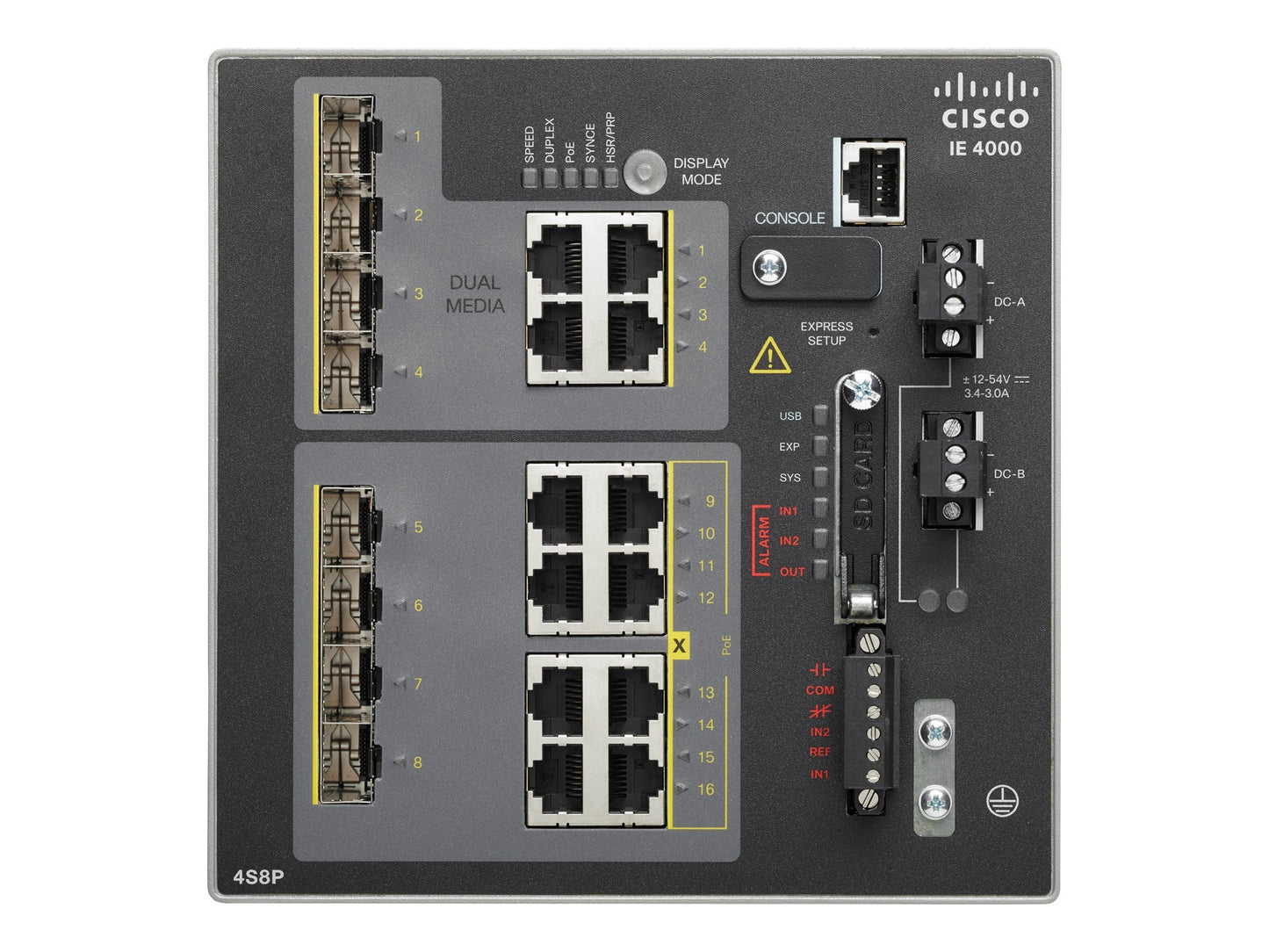

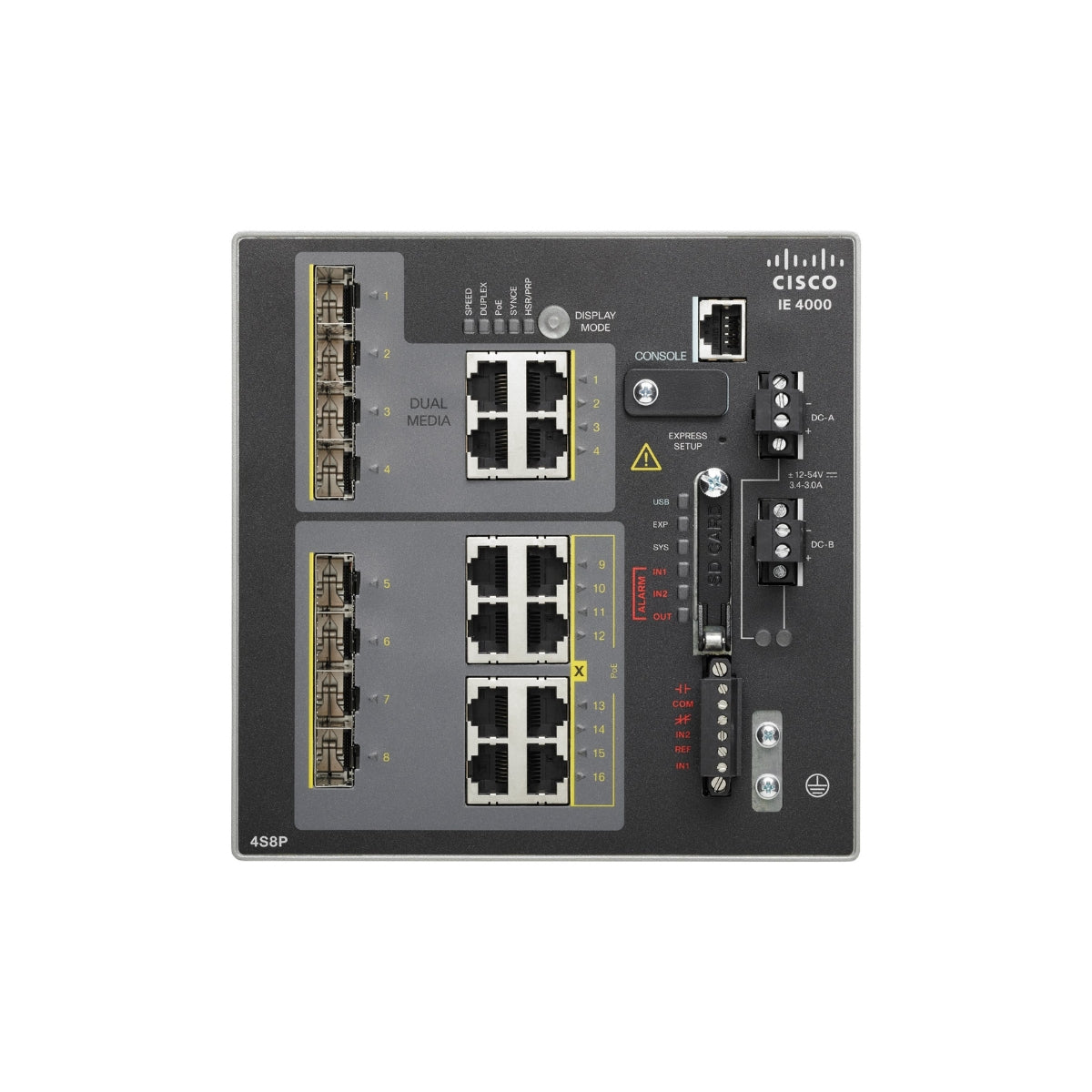

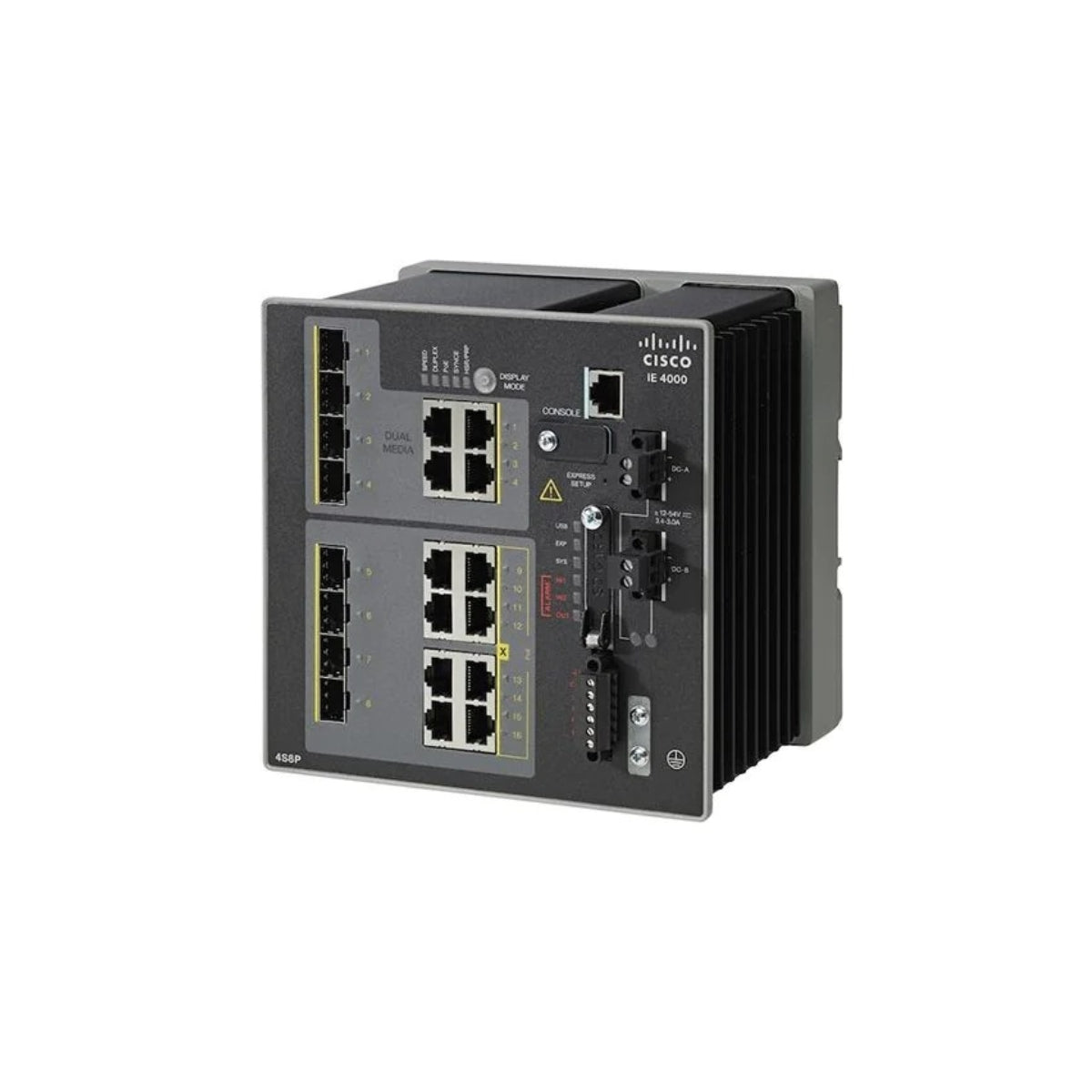

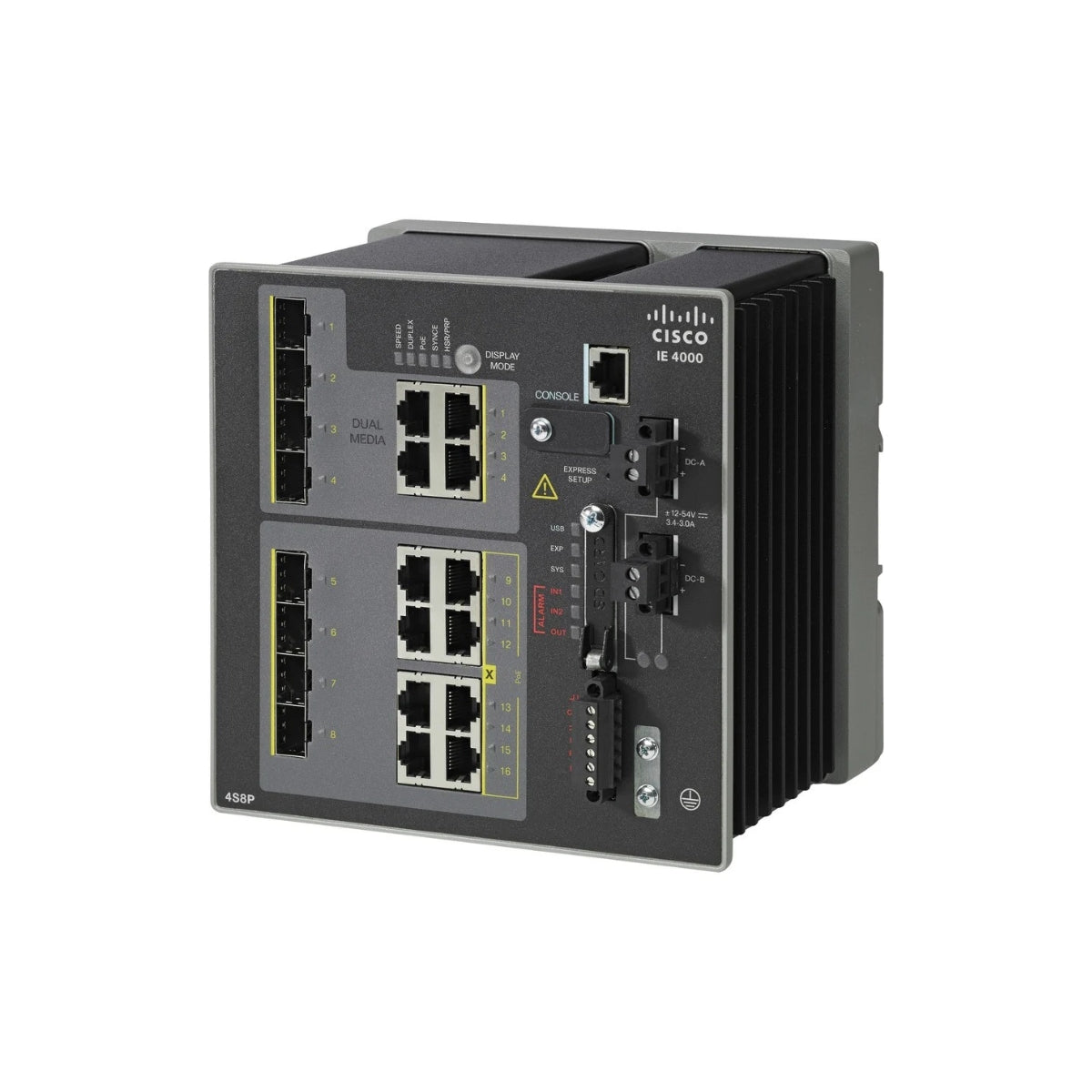

IE-4000-4S8P4G-E Cisco Industrial Ethernet 4000 Managed Switch

BRAND NEW, FACTORY-SEALED, AND BACKED BY A FULL CISCO MANUFACTURER'S WARRANTY. SUPPLIED BY CHICAGO COMPUTER SUPPLY.

Overview

The IE-4000-4S8P4G-E is a rugged Cisco Industrial Ethernet 4000 Series managed switch designed for secure, mixed-media industrial networking. It combines fiber uplinks with PoE-enabled Ethernet access ports, making it ideal for industrial environments that require both powered edge connectivity and resilient backbone links.

Built on Cisco IOS Software, this switch delivers reliable Layer 2 and Layer 3 capabilities for operational technology networks. It supports safe IT and OT convergence while maintaining performance, security, and uptime in harsh industrial conditions.

Key Features

·         Industrial-grade managed switch built for harsh operating environments

·         Eight PoE+ Ethernet ports for powering industrial edge devices

·         Four SFP fiber ports for long-distance and noise-resistant connectivity

·         Four Gigabit uplink ports for aggregation and backbone networking

·         Cisco IOS Software-based switching and routing capabilities

·         DIN rail mountable design for industrial cabinets and control panels

Technical Specifications

Manufacturer: Cisco Systems
Brand: Cisco
Model: IE-4000-4S8P4G-E
Product Type: Managed Industrial Ethernet Switch
Subcategory: Network Hubs and Switches
Packaged Quantity: 1 Unit

Form Factor: DIN rail mountable
Manageable: Yes

Memory:

·         Flash: 128 MB

·         RAM: 512 MB

Ports & Interfaces:

·         8 × 100Base-TX RJ-45 (PoE+)

·         4 × SFP (mini-GBIC) ports

·         4 × Gigabit Ethernet uplink ports

·         Console RJ-45

·         Mini-USB Type B

Power:

·         Electric Current Required: 4.3 A

·         Operational Power Consumption: 40 W

MAC Address Table Size: 16K entries

Routing & Management:

·         Routing Protocol: Static IPv4

·         Remote Management: CLI, HTTP, RMON, SNMP v1/v2/v3, SSH, Telnet

·         Authentication: RADIUS, TACACS+

Capacity:

·         VLANs: Up to 1000

·         IGMP Groups: Up to 1000

Environmental Specifications:

·         Operating Temperature: -40°F to 167°F

·         Storage Temperature: -40°F to 185°F

·         Operating Humidity: 5–95% non-condensing

·         MTBF: 535,880 hours

Use Cases

The IE-4000-4S8P4G-E is for industrial Ethernet networks supporting factory automation, transportation systems, utilities, oil and gas facilities, and smart infrastructure. It powers edge devices while providing reliable fiber and copper uplinks for resilient industrial connectivity.

Why Choose IE-4000-4S8P4G-E

·         Combines PoE+ access ports with fiber and copper uplink flexibility

·         Supports secure IT and OT convergence using Cisco IOS Software

·         Designed for continuous operation in extreme industrial conditions

·         Enables resilient network architectures for mission-critical deployments

·         Trusted Cisco industrial platform with full manufacturer's warranty

FAQs

What is the IE-4000-4S8P4G-E used for?

The IE-4000-4S8P4G-E is used to provide secure, managed Ethernet switching in industrial networks that require PoE-powered edge devices and reliable fiber and copper uplinks.

Does this switch support Power over Ethernet?

Yes. The switch includes eight PoE+ Ethernet ports, allowing it to deliver both power and data to industrial devices such as cameras, access points, and sensors.

Is the IE-4000-4S8P4G-E suitable for harsh industrial environments?

Yes. It can operate in extreme temperatures and demanding conditions commonly found in factories, utilities, transportation systems, and outdoor industrial deployments.

What uplink options are available on this switch?

The switch provides a combination of Gigabit Ethernet uplinks and SFP fiber ports, enabling flexible aggregation and long-distance industrial network connections.

Does the IE-4000-4S8P4G-E include Cisco warranty coverage?

Yes. The product is brand new, factory-sealed, and includes a full Cisco manufacturer's warranty when purchased from Chicago Computer Supply.
