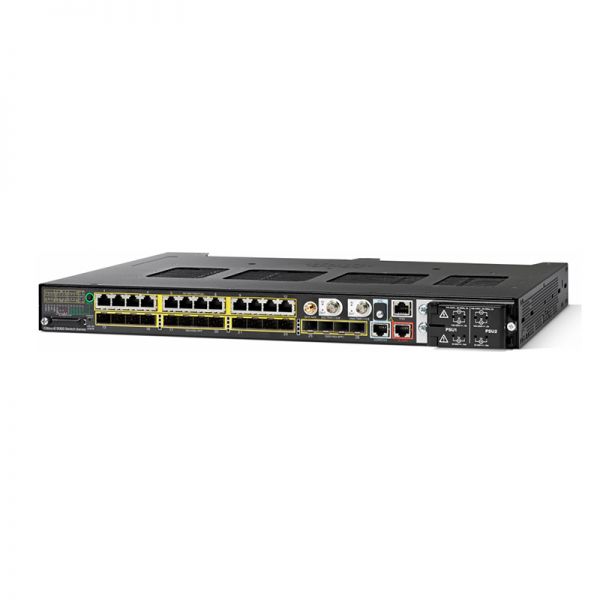

Cisco Industrial Ethernet 5000 Series 28 Ports TAA Compliant Managed Switch IE-5000-16S12P

The Cisco Industrial Ethernet (IE) 5000 Series switches with four 10 Gigabit or four 1 Gigabit Ethernet uplinks and 24 Gigabit Ethernet downlinks is a rack mount, ruggedized switch that provides Layer 2 and Layer 3 line rate aggregation and copper Power over Ethernet (PoE) connectivity in harsh industrial environments.

• Brand: CISCO
• SKU:ISA-3000-4C-K9
• Flash Memory Installed:256 megabyte
• RAM Installed:1 GB
• Form Factor (Hubs & Switches):Rack-mountable
• MAC Address Table Size:16K entries
• Manageable:Yes
• Ports:28
• Power Over Ethernet (PoE):PoE+
• Product Type:Switch
• Remote Management:CLI, HTTP, RMON, SCP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
• Routing Protocol:BGP-4, Bidirectional Forwarding Detection (BFD), EIGRP, EIGRP for IPv6, HSRP, IGMP, IGMPv2, IGMPv3, IS-IS, OSPF, OSPF for IPv6, PIM-DM, PIM-SM, Policy-based routing (PBR), RIP-2, RIPng, Static IPv4 routing
• Subcategory:Network hubs and switches
• Switching Type:Gigabit Ethernet
• Expansion Slots:1 (total) / 0 (free) x SD Memory Card
• Interface Provided:1 x antenna input, 1 x console RJ-45, 1 x mini-USB Type B, 12 x 1000Base-T RJ-45 PoE+, 12 x 1000Base-X SFP, 4 x SFP uplink
• Port Quantity:16
• Port Type:Gigabit SFP
• Ports Type (2nd):10/100/1000 (PoE+)
• Power Consumption Operational:90 watt
• Redundant Power Supply:Yes
• Redundant Power Supply Supported:1+1
• Software Type:Cisco IOS LAN Base
• Built-in Devices:SD card reader
• Humidity Range Storage:5 - 95% (non-condensing)
• Max Operating Temperature:165.2 degree Fahrenheit
M
• ax Storage Temperature:185 degree Fahrenheit
• Min Operating Temperature:-40 degree Fahrenheit
• Min Storage Temperature:-40 degree Fahrenheit
• MTBF:390,190 Hours
• Operating Humidity:5 - 95% (non-condensing)
• Authentication Method:RADIUS, Secure Shell (SSH), TACACS+
• Capacity:IGMP groups: 1000, NAT entries: 128, Virtual interfaces (VLANs): 1005
• Packaged Quantity:1
• Ports (2nd) Quantity:12
