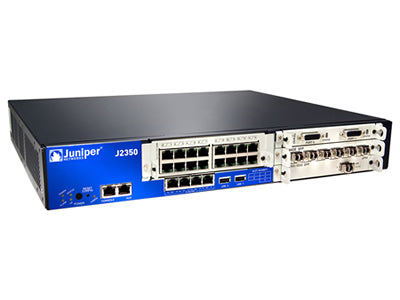

Juniper Networks J2350 Router REFURB J2350-JB-SC

REFURBISHED WITH A 90 DAY CCS WARRANTY!!! The Juniper Networks J2350 is a modular router, that supports Juniper Physical Interface Modules (PIMs), which provide a wide variety of common WAN and LAN interfaces, including Gigabit Ethernet. EN, Fast EN, Gigabit EN, HDLC, Frame Relay, RS-232, PPP, RS-530, X.21, V.35, RS-449, MLPPP, FRF.15, FRF.16, FRF.12 Modular design, firewall protection, 56-bit encryption, 168-bit encryption, DHCP support, NAT support, VPN support, MPLS support, LDAP support, VLAN support

Specification:

Maximum Performance and Capacity

• Junos OS version tested : Junos OS 9.6
• Firewall performance (large packets) : 750 Mbps
• Firewall performance (IMIX) : 500 Mbps
• Firewall + routing PPS (64 Byte) : 175 Kpps
• VPN Performance : 150 Mbps
• IPsec VPN Tunnels : 256
• IPS (intrusion prevention system) : 130 Mbps
• Antivirus : 30 Mbps
• Connections per second : 5,000
• Maximum concurrent sessions : 64 K
• Maximum security policies : 2048 (1 GB DRAM)
• Maximum users supported : Unrestricted

Network Connectivity

• Fixed I/O : 4 x 10/100/1000BASE-T
• I/O slots : 5 x PIM
• Services and Routing Engine slots : N/A
• ExpressCard slot (3G WAN) : N/A
• WAN/LAN interface options : See ordering information
• Optional maximum number of PoE ports : N/A
• USB : 2
• Routing : 32
• BGP instances : 512 MB / 1 GB DRAM64 / 64
• BGP peers : 512 MB / 1 GB DRAM64 K / 400 K
• BGP routes : 512 MB / 1 GB DRAM32 / 32
• OSPF instances : 512 MB / 1 GB DRAM5 K / 10 K
• OSPF routes : 512 MB / 1 GB DRAM32 / 32

Virtualization

• Maximum number of security zones : 40
• Maximum number of virtual routers : 25
• Maximum number of VLANs : 256

Flash and Memory

• Memory minimum and maximum (DRAM) : 512 MB, 1 GB
• Memory slots : 4 DIMM
• Standard and Maximum Flash memory : 512 MB / 1 GB
• USB port for external storage : Yes

Dimensions & Power

• Dimensions (W x H x D) : 44.5 x 4.4 x 38.3 cm
• Rack mountable : Yes, 1.5 RU
• Power supply (AC) : 100-240 VAC, 300 W
• Average power consumption : 80 W
• Input frequency : 47-63 Hz
• Maximum current consumption : 3.5 A @ 100 VAC
• Maximum inrush current : 32 A

Juniper Part Numbers : J2350-JB-SC, J2350-JB-SC-DC, J2350-JB-SC-DC-N-TAA, J2350-JB-SC-TAA, J2350-JH, J2350-JH-DC, J2350-JH-DC-N-TAA, J2350-JH-TAA UPC : 00832938036154
