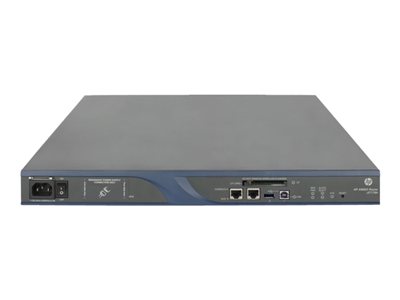

HP A6602 Multi-Core Router Chassis JC176A#ABA
HP A6602 Multi-Core Router Chassis JC176A#ABA
Regular price
$11,399.99 USD
Regular price
$16,459.00 USD
Sale price
$11,399.99 USD
Unit price
/
per
You save $5,059.01 (30%)
Part Number : JC176A
Availability: In stock
Shipping calculated at checkout.
Couldn't load pickup availability
Description: HP A6602 Multi-Core Router Chassis JC176A#ABA
BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!
The HP A6600 series routers dramatically enhance service processing capacity. Distributed processing architecture, isolated routing, and service engines, as well as isolated control and service panels, provide higher reliability and continual services. Different software service engines can handle different services such as network address translation (NAT), quality of service (QoS), IPSec, and NetStream, with no further cost from additional hardware service modules.
Dimensions & Weight
| Width | 17.4 in |
| Depth | 18.1 in |
| Height | 1.7 in |
| Weight | 16.53 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
| Service & Support Details | Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
General
| Device Type | Modular expansion base |
| Enclosure Type | Rack-mountable - 1U |
| Connectivity Technology | Wired |
| Network / Transport Protocol | TCP/IP, L2TP, RSVP, NTP, PPPoE |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, FTP, SSH, CLI |
| Encryption Algorithm | MD5, SSL, TLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | DHCP support, NAT support, VPN support, NAPT support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, FCC Part 68, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, WEEE, EN 60825-1 |
| Processor | 1 x 1000 MHz |
Expansion / Connectivity
| Interfaces | Management: 1 x |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 2 (max) |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
