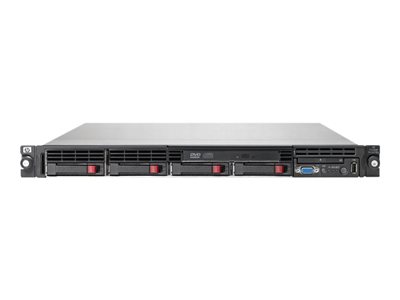

HPE VCX V7205 Unified Communications Server VoIP Gateway JC517A#ABA

HP VCX V7000 Unified Communications series is engineered for businesses to efficiently scale and support the most varied, collaborative work environments. From a single campus to a network of distributed users and sites, the VCX V7000's highly flexible, resilient architecture provides a wealth of dependable deployment options that can support instant unified communications and productivity requirements of thousands of users in order to drive down costs and improve overall operating efficiencies.

• Key Points
• Enhanced high availability
• Standard RAID disk
• Standard redundant power supply
• Media gateway support
• Analog phone support
• Flexible architecture for end-to-end survivability

Specifications

• VoIP Protocols: SIP
• Voice Codecs: G.711, G.729, G.729ab
• Rack Mounting Kit: Included
• Compliant Standards: EN 61000-3-2, EN 61000-3-3, CISPR 22, IEC 60950-1, EN 60950-1, FCC Part 15 A
• Form Factor: Rack-mountable
• Ports Qty: 2
• Connectivity Technology: Wired
• Data Transfer Rate: 1 Gbps
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: SNMP 1, SNMP 3
• Features: VLAN support, Quality of Service (QoS)
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p
• Max Operating Temperature: 95 °F
• Humidity Range Operating: 10 - 90% (non-condensing)
• Device Type: VoIP gateway
• Height (Rack Units): 1U
• Width: 16.8 in
• Depth: 27.2 in
• Height: 1.7 in
• Localization: English / United States
• Processors Installed: 1 x Intel Xeon 2.4 GHz
• RAM: 6 GB DDR3 SDRAM
• Hard Drive: 146 GB x 1 - SAS - 2.5"
• Expansion Bays: 4 (total) / 3 (free) x 2.5"
• Interfaces: 2 x 1000Base-T - RJ-45 ¦ 1 x serial ¦ 3 x USB 2.0 - Type A
• Power Device: Internal power supply
• Voltage Required: AC 120/230 V (50/60 Hz)
