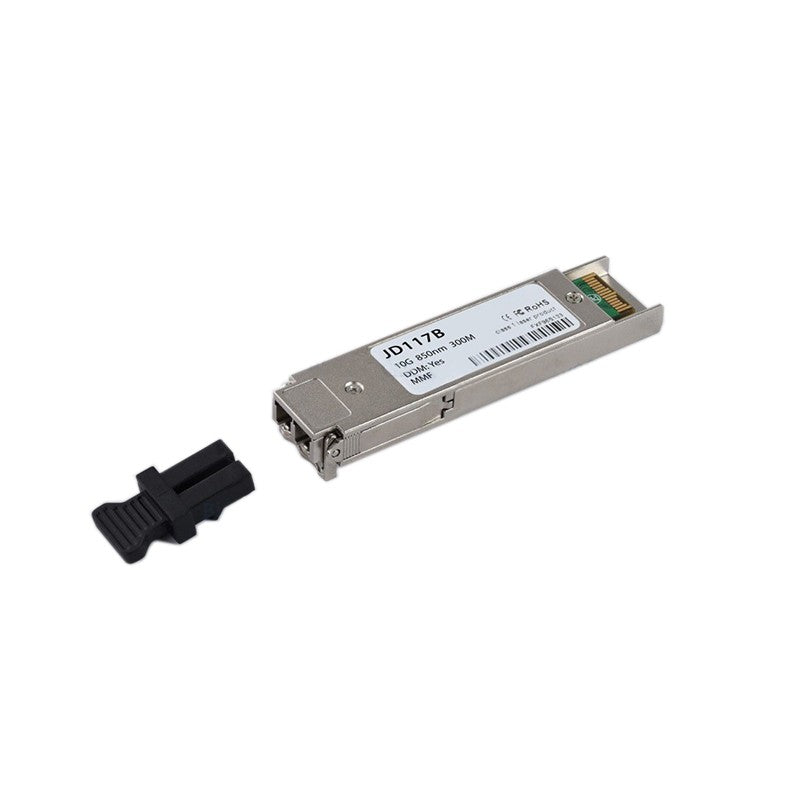

HP X130 10G XFP LC SR Transceiver JD117B

HP X130 10G XFP LC SR Transceiver JD117B

Regular price $89.64 USD
Regular price $1,819.00 USD Sale price $89.64 USD
Sale Sold out

You save $1,729.36 (95%)

Part Number : JD117B

Availability: In stock

Shipping calculated at checkout.
View full details

Description: HP X130 10G XFP LC SR Transceiver JD117B

BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!

HPE is an XFP transceiver module for 9.95Gbps to 11.1Gbps data transmission applications. The transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae and 10G Fiber Channel 1200-Mx-SN-I. It provides 10-Gigabit connectivity up to 300m on multimode fiber (MMF) at 850nm. The XFP transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Additionally, the OXP10G-8503DCR-HPE XFP transceiver is programmed to be compatible with a wide range of HPE network equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to high-cost HPE JD117B 10GBASE-SR XFP module.

Features

• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-SR/SW
• 850nm VCSEL laser and PIN receiver
• Distance up to 300m on multimode OM3 fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free

Specification

  OEM Part Number JD117B   Optcore Part Number OXP10G-8503DCR-HPE
  Form Factor XFP   Data Rate 10Gb/s
  Wavelength 850 nm   Fiber Type MMF
  Max Distance 300 m   Optical Components VCSEL/PIN
  Transmitter Power -6 ~ -1 dBm   Extinction ratio > 3.5 dB
  Receiver Sensitivity < -10 dBm   Receiver Overload > 0.5 dBm
  Connector Duplex LC   Digital Diagnostic Monitoring Yes
  Environment Operating: 0°C to 70°C
Storage: -40°C to 85°C
  Weight 0.05 kg
  Application 10GBASE-SR/10GBASE-SW Ethernet

10G Fiber Channel

10GbE Data Center Switches and Routers

  Compliance IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS
