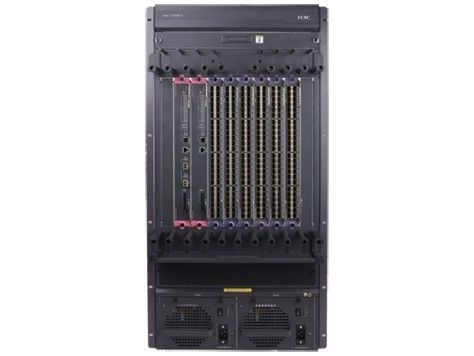

HPE FlexNetwork 7506-V Managed L4 Switch REFURB JD241B

The HPE FlexNetwork 7500 Switch Series is a versatile, high-performance, modular switch designed for the evolving needs of integrated services networks. Deployed across verticals at the enterprise LAN core, aggregation layer and wiring closet edge it offers 40GbE connectivity, cost-effective wire-speed 10GbE ports, high-density PoE/PoE+, and advanced functionality with service modules. With Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) technology, the 7500 Switch can be virtualized across four chassis with a single management interface-enabling flatter, more agile networks.

Specifications

Ports

• 2 switch fabric slots
• 6 I/O module slots
• Supports a maximum of 52 10GbE ports or 288 autosensing 10/100/1000 ports or 288 SFP ports or 24 40-GbE ports, or a combination

Memory and processor

Fabric : MIPS64 @ 600 MHz, 64 MB flash, 512 MB RAM; I/O module : MIPS64 @ 400 MHz, 512 MB RAM; I/O module : MIPS64 @ 1000 MHz, 1 GB RAM

Throughput

488 million pps

Routing/switching capacity

768 Gbps

Management features

• IMC - Intelligent Management Center
• command-line interface
• Web browser
• out-of-band management (serial RS-232C)
• SNMP Manager
• Telnet
• terminal interface (serial RS-232C)
• modem interface
• IEEE 802.3 Ethernet MIB
• Ethernet Interface MIB

Power and operating requirements

Input voltage

100-120/200-240 VAC; -48 to -60 VDC (depending on power supply chosen)

Operating temperature range

0 to 45ºC

Operating humidity range

10 to 95% (noncondensing)

Dimensions and weight

Minimum dimensions (W x D x H)

43.6 x 42.0 x 93.0 cm

Weight

100.7 kg
(chassis, two fabrics, two power supplies, and a full complement of typical I/O modulesFully loaded)
