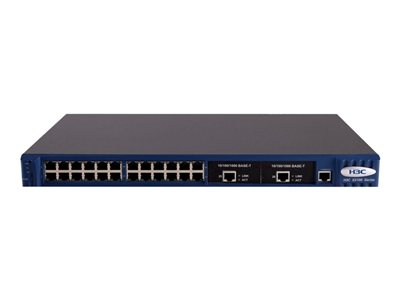

Description: HP 3100-24 SI Switch - 24 ports JD306A#ABA
BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!
The HP A3100 SI Switch series is a low-cost Fast Ethernet switch line that enables organizations to do more with less. Stackable and affordable, this series comprises intelligent, network-manageable layer 2 Fast Ethernet switches that offer high performance, high port density, and easy installation. They provide 10/100 Mbps downlinks and Gigabit Ethernet uplinks, and offer link aggregation that expands bandwidth and enhances connection reliability. In enterprise networks, they can serve as access devices for 100 Mbps-to-desktop applications. In metropolitan area networks (MANs) or industry networks, they can connect end users or aggregate low-end switches through 100 Mbps electrical interfaces in the downlink direction, converging at an IP switching center or a large capacity layer 3 switch in the uplink direction via a GbE interface or link aggregation.
Miscellaneous
| Rack Mounting Kit |
Included |
| Compliant Standards |
RoHS, UL 60950-1, WEEE, EN 60825-1 |
| Localization |
English / United States |
Dimensions & Weight
| Width |
17.2 in |
| Depth |
9.5 in |
| Height |
1.7 in |
| Weight |
6.61 lbs |
Manufacturer Warranty
| Service & Support Details |
Limited warranty - lifetime |
Environmental Parameters
| Max Operating Temperature |
113 °F |
| Humidity Range Operating |
10 - 90% (non-condensing) |
General
| Device Type |
Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Fast Ethernet |
| Ports |
24 x 10/100 + 2 x 10/100/1000 |
| MAC Address Table Size |
8K entries |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Encryption Algorithm |
SSL |
| Authentication Method |
RADIUS, Secure Shell v.2 (SSH2) |
| Features |
Flow control, BOOTP support, ARP support, VLAN support, IGMP snooping, Quality of Service (QoS) |
| Compliant Standards |
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP) |
| RAM |
64 MB SDRAM |
| Flash Memory |
8 MB flash |
Expansion / Connectivity
| Interfaces |
24 x 100Base-TX RJ-45 ¦ 1 x RJ-45 management ¦ 2 x 1000Base-T RJ-45 |
Power
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
