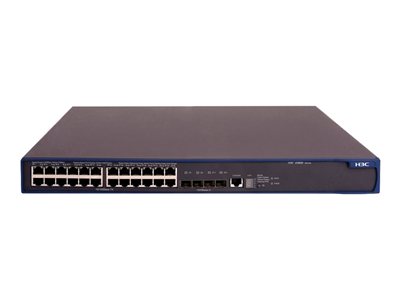

HPE 3600 24 PoE EI Switch JD326A
HPE 3600 24 PoE EI Switch JD326A
You save $786.88 (32%)
Part Number : JD326A
Availability: In stock
Couldn't load pickup availability
Description: HPE 3600 24 PoE EI Switch JD326A
The HP A3600 EI Switch series delivers premium levels of intelligent and resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of Layer 2 and Layer 3 fast Ethernet and PoE switches, with advanced features that can accommodate the most demanding applications. Secure, resilient connectivity and the traffic-prioritization technologies enhance converged networks. Designed for increased flexibility and scalability, HP A3600 EI series switches come with 24 or 48 10/100 ports, four active SFP-based Gigabit Ethernet ports for stacking and uplinks, and a 24-port 100Base-FX switch.
| Width | 17.3 in |
| Depth | 16.5 in |
| Height | 1.7 in |
| Weight | 13.23 lbs |
| Service & Support Details | Limited warranty - lifetime |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Device Type | Switch - 24 ports - L4 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fast Ethernet |
| Ports | 24 x 10/100 (PoE) + 4 x SFP |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 16K entries |
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, MSDP, static IPv4 routing, ECMP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2) |
| Features | Flow control, routing, DHCP support, power over Ethernet (PoE), ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), Jumbo Frames support, Device Link Detection Protocol (DLDP) support, Endpoint Admission Defense (EAD), STP Root Guard |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP) |
| RAM | 64 MB SDRAM |
| Flash Memory | 16 MB flash |
| Interfaces | 24 x 100Base-TX RJ-45 PoE ¦ 1 x console RJ-45 management ¦ 4 x SFP (mini-GBIC) |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
