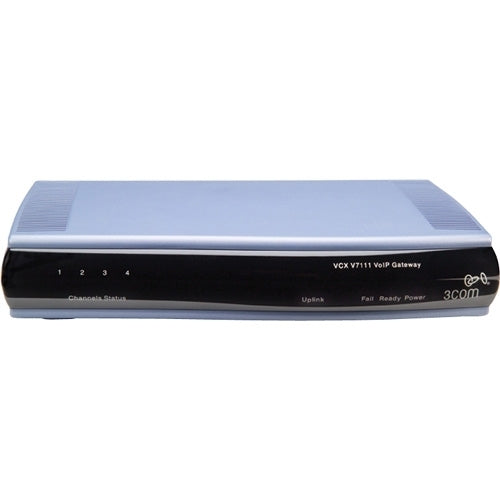

Description: HP VCX VoIP Gateway 1 SPAN JE374A
BRAND NEW WITH THE FULL HPE WARRANTY!!!
HP VCX V71xx Gateway Series Voice over IP gateways help enterprises transition to IP communications using a cost-effective strategy that aligns financial considerations with performance needs. The gateways lay the foundation for a successful deployment of Session Initiation Protocol (SIP)-based applications, and enable interoperability between a converged IP network and legacy equipment-including PBXs, the public switched telephone network (PSTN), analog phones, and fax machines. The HP VCX V7122 digital gateways provide all necessary functions and protocol support for handling voice calls between traditional circuit-switched phone networks and an IP network. HP VCX V7111 analog gateways (both FXS and FXO models) let analog phones and other legacy analog devices use HP SIP-based IP telephony features-an especially helpful feature during transitions, enabling employees to continue using familiar equipment and interfaces, including dialing plans, email systems, fax machines, and modems.
IP Telephony
| VoIP Protocols |
SIP |
| Voice Codecs |
G.711, G.723, G.729a, G.726, G.727 |
Miscellaneous
| Compliant Standards |
EN55024, EN55022 Class B, UL 60950-1, EN 60950-1 |
Networking
| Form Factor |
External |
| Connectivity Technology |
Wired |
| Line Rate |
T-1/E-1 |
| Data Link Protocol |
Ethernet, Fast Ethernet |
| Communication Mode |
Half-duplex, full-duplex |
| Status Indicators |
Power, link OK, link/activity |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p |
Manufacturer Warranty
| Service & Support |
Limited warranty - 1 year |
| Service & Support Details |
Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
10 - 90% (non-condensing) |
General
| Device Type |
VoIP gateway |
| Height (Rack Units) |
1U |
| Width |
17.5 in |
| Depth |
11.8 in |
| Height |
1.7 in |
| Weight |
9.26 lbs |
| Localization |
English / United States |
Expansion / Connectivity
| Expansion Slots |
1 (total) / 1 (free) x expansion slot |
| Interfaces |
1 x T1/E1 ¦ 2 x 100Base-TX - RJ-45 |
Power
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
UPC : 00885631219010
