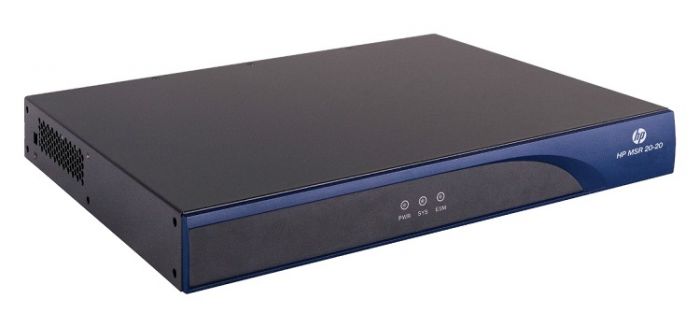

HPE AMSR2020 MultiService Router JF283A#ABA

The HP MSR20 router series is a component of the HP FlexBranch solution, which is part of the HP FlexNetwork architecture. It features a modular design that delivers unmatched flexibility for small branch offices and small to medium-sized businesses while reducing complexity, simplifying management, and increasing control.

• Traffic policing with Committed Access Rate (CAR) and line rate
• High-density port connectivity with up to 4 interface module slots and up to 18 Fast Ethernet ports
• Embedded hardware encryption accelerator helps improve encryption performance
• Flexible chassis selection, with a choice of three routers, meeting different requirements on enterprise branches

Specifications

• Brand: Hewlett Packard
• Model: JF283A#ABA
• Series: MSR20
• Compliant Standards: IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3u
• Connectivity Technology: Wired
• Data Link Protocol: Ethernet , Fast Ethernet
• Form Factor: Desktop
• Key Features: Firewall , USB port , VPN support
• Modular: Modular
• Network Transport Protocol: L2TP , NTP , PPPoE , RSVP , TCP/IP
• Remote Management Protocol: FTP , HTTP , RMON 1 , SNMP 1 , SNMP 2 , SNMP 3 , SSH , Telnet
• Routing Protocol: BGP-4 , GRE , IGMPv2 , IGMPv3 , IS-IS , MSDP , Multiprotocol BGP , OSPF , OSPFv2 , OSPFv3 , PIM-DM , PIM-SM , RIP-1 , RIP-2 , RIPng , Static IPv4 routing , Static IPv6 routing , VRRP
• Switching Protocol: Ethernet
• Type: Router
• WAN Ports Qty: 2
• Authentication Method: Extensible Authentication Protocol (EAP) , RADIUS , Secure Shell v.2 (SSH2) , TACACS+
• Compliant Standards: CSA C22.2 No. 60950-1 , CSA C22.2 No. 60950-1-03 , EN 60825-1 , FCC Part 68 , ICES-003 Class B , IEC 60950-1 , RoHS , UL 60950-1 , WEEE
• Encryption Algorithm: MD5 , SSL , TLS
• Height (Rack Units): 1
• Compatibility: PC
• Depth: 11.3 in
• Height: 1.7 in
• Width: 14.2 in
