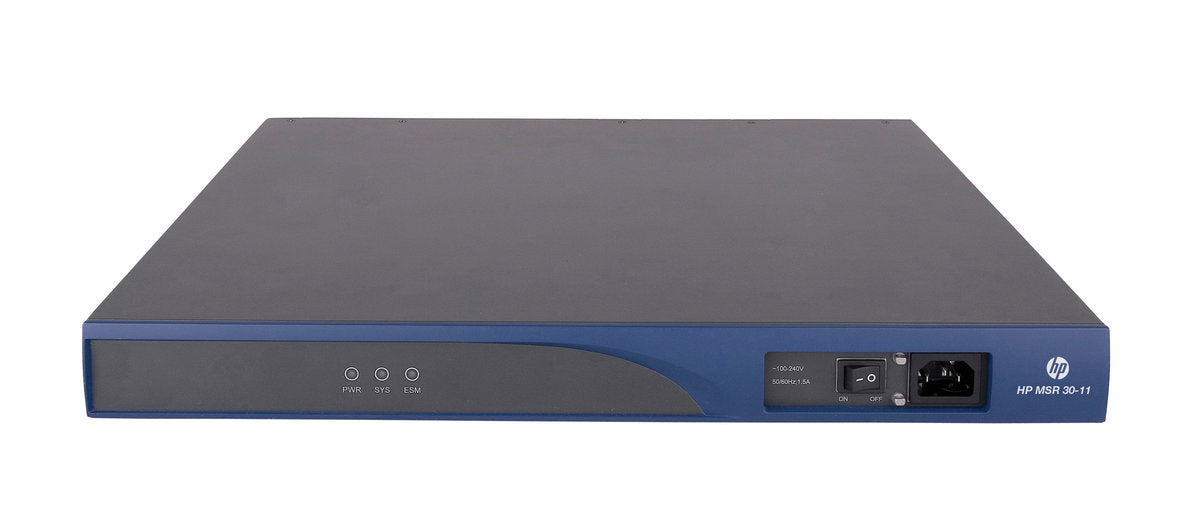

HPE AMSR3011 MultiService Router JF800A#ABA
HPE AMSR3011 MultiService Router JF800A#ABA
Regular price
$1,623.99 USD
Regular price
$2,359.00 USD
Sale price
$1,623.99 USD
Unit price
/
per
You save $735.01 (31%)
Part Number : JF800A
UPC: 885631373262
Availability: In stock
Shipping calculated at checkout.
Couldn't load pickup availability
Description: HPE AMSR3011 MultiService Router JF800A#ABA
BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!
The HP MSR30 Router Series is a family of high-performance medium-to-large branch routers that deliver integrated routing, switching, security, wireless, and voice in a single box. With its integrated infrastructure and modular design, the MSR30 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance. The MSR30 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. With 4G LTE and UC&C support, it offers dependable branch survivability and resiliency.
Specifications
Miscellaneous
| Localization | English / United States |
Dimensions & Weight
| Width | 17.4 in |
| Depth | 14.2 in |
| Height | 1.7 in |
| Weight | 10.14 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
| Service & Support Details | Limited warranty - 1 year |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% |
General
| Device Type | Router |
| Enclosure Type | Rack-mountable - modular - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP/IP, L2TP, RSVP, NTP, PPPoE |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, Telnet, SNMP 3, HTTP, FTP, SSH |
| Encryption Algorithm | MD5, SSL, TLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Firewall protection, DHCP support, NAT support, VPN support, NAPT support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, FCC Part 68, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, WEEE, EN 60825-1 |
| Processor | 1 x 333 MHz |
| RAM | 256 MB DDR SDRAM |
| Flash Memory | 32 MB |
Expansion / Connectivity
| Interfaces | WAN: 2 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x ¦ USB: 1 x ¦ Serial: 1 x |
| Expansion Slots | 1 (total) / 1 (free) x Multifunction Interface Module (MIM) ¦ 2 (total) / 2 (free) x Smart Interface Card (SIC) |
| Installed Modules Qty (Max) | 0 (installed) / 3 (max) |
Power
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
