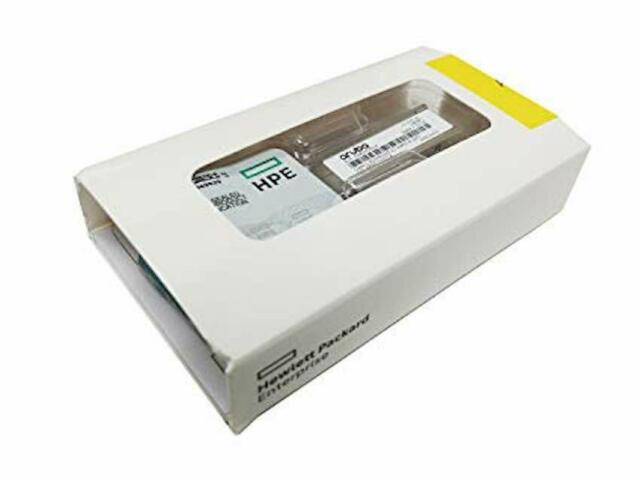

HPE X120 622M SFP LC LX 15km Transceiver JF829A

The 622Mbps SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

The OSP622-3120DCR-HPE SFP transceiver is tested to be compatible with HPE networking equipment for SONET/SDH (POS), optical networking and ATM applications. It is an ideal equivalent to HPE JF829A OC-12/STM-4 single mode Intermediate Reach (IR-1) SFP optics module but with much lower price, which provides a reliable compatible SFP optics transceiver solution for system integrator, distributors and end users in network infrastructure and fiber cabling.

Features

• Hot-pluggable SFP footprint
• Support Up to 622Mb/s data links
• Compliant with SFP MSA standard
• 1310nm FP laser transmitter and InGaAs PIN receiver
• Up to 15km on 9/125µm SMF
• Single 3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Duplex LC connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free

Specification
