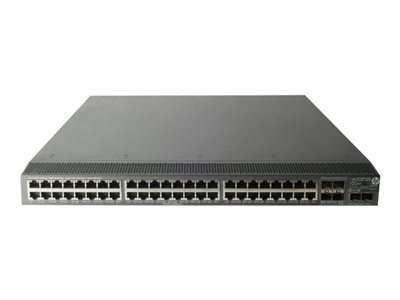

HPE FlexFabric 5800AF 48G Switch JG225A
HPE FlexFabric 5800AF 48G Switch JG225A
You save $6,199.01 (56%)
Part Number : JG225A
Availability: In stock
Couldn't load pickup availability
Description: HPE FlexFabric 5800AF 48G Switch JG225A
BRAND NEW FACTORY SEALED & RETAIL BOXED WITH THE FULL HPE WARRANTY!!!
HPE 5800 Switch Series gives you versatility and high performance in a 10/100/1000 top-of-rack, data center switch architecture that offers deployment flexibility. With a choice of models that support high-density server links with copper or fiber, you can build superior networks tailored for your specific application needs. While Intelligent Resilient Fabric (IRF) reduces management complexities by up to 88%, it also delivers <50 msec convergence time. You can rely on the 5800 Switch Series to deliver high performance and lower TCO, while delivering business resilience and high availability.
| Compliant Standards | GOST, NOM, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, FDA, CSA C22.2 No. 60950-1, EN 60825-1 |
| Width | 17.3 in |
| Depth | 26 in |
| Height | 1.7 in |
| Weight | 22.05 lbs |
| Service & Support Details | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 6 x SFP+ |
| MAC Address Table Size | 32K entries |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, VRRPE, policy-based routing (PBR), RIPng |
| Remote Management Protocol | RMON, Telnet, SNMP 3, HTTPS, SSH |
| Encryption Algorithm | PKI |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2) |
| Features | Flow control, layer 2 switching, DHCP support, ARP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, Weighted Random Early Detection (WRED), DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag |
| RAM | 512 MB SDRAM |
| Flash Memory | 1 GB |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 6 x SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB 2.0 Type A |
| Power Device | Internal power supply |
| Installed Qty | 0 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
