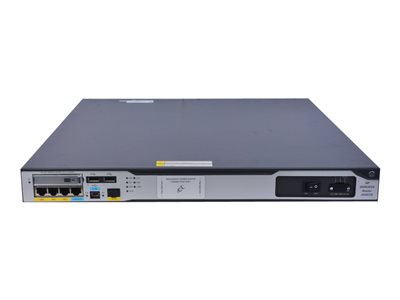

HPE FlexNetwork MSR3024 DC Router JG407A

The HPE MSR3000 Router Series is a family of high-performance medium to large branch routers that deliver integrated routing, switching, security, and SIP in a single box. With its integrated infrastructure and modular design, the MSR3000 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance.

The MSR3000 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. It offers lasting investment protection, and helps reduce capital and operating expenses.

Specifications

• Device Type: Router
• Enclosure Type: Desktop, rack-mountable - modular - 1U
• Connectivity Technology: Wired
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Performance: Throughput (64-byte packet size): up to 2.6 Mpps
• Capacity: IPv4 routing table entries: 500000 | IPv6 routing table entries: 500000 | IPv4 forwarding table entries: 500000 | IPv6 forwarding table entries: 500000
• Network / Transport Protocol: TCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
• Routing Protocol: OSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD)
• Remote Management Protocol: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
• Encryption Algorithm: MD5, TLS
• Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
• Processor: 1 x 1 GHz
• RAM: 2 GB DDR3 SDRAM
• Flash Memory: 256 MB
• Interfaces: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | 1 x Ethernet 1000 - SFP (mini-GBIC) | USB 2.0: 2 x 4 pin USB Type A | Management: 1 x auxiliary | Management: 1 x USB
• Expansion Slots: 1 (total) / 1 (free) x expansion slot | 2 (total) / 2 (free) x High-performance Multifunction Interface Module (HMIM) | 4 (total) / 4 (free) x Smart Interface Card (SIC) | 1 CompactFlash
• Installed Modules Qty (Max): 0 (installed) / 7 (max)
• Rack Mounting Kit: Included
• MTBF: 49.61 years
• Width: 17.3 in
• Depth: 18.9 in
• Height: 1.7 in
