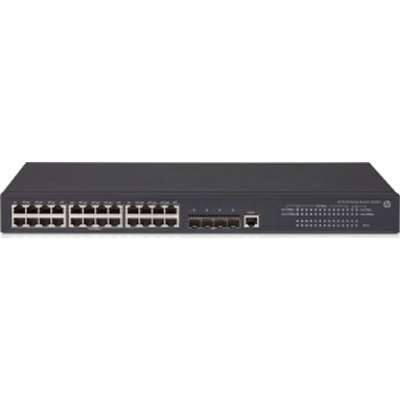

HPE FlexNetwork 5130 24G 4SFP+ EI Switch JG932A

The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

• Manufacturer Part Number: JG932A#ABA
• Product Series: 5130 EI
• Product Model: 5130-24G-4SFP+ EI
• Product Type: Layer 3 Switch
• Total Number of Network Ports: 24
• Uplink Port: Yes
• Modular: No
• Number of Total Expansion Slots: 4
• Expansion Slot Type: SFP+
• Number of SFP+ Slots: 4
• Media Type Supported: Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T
• Layer Supported: 3
• Power Source: Power Supply
• Manageable: Yes
• Compatible Rack Unit: 1U
• Form Factor: Rack-mountable
• Height: 1.7"
• Width: 17.3"
• Depth: 6.3"
• Environmentally Friendly: Yes
• Product Family: 5130 EI
• Token Ring Port: No
• LRE Port: No
• USB: No
• Number of Network (RJ-45) Ports: 24
• Management Port: Yes
• Bypass: No
• Memory Technology: SDRAM
• MTBF: 847584 Hour
• Flash Memory: 128 MB
• Input Voltage: 120 V AC
• Standard Memory: 1 GB
