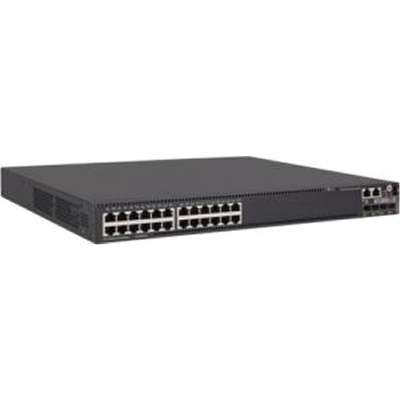

HPE FlexNetwork 5510 24G PoE+ 4SFP+ HI 1-Slot Switch JH147A

The HPE FlexNetwork 5510 HI Switch Series delivers outstanding resiliency, security, and multiservice support for medium and large enterprise networks. This switch includes enterprise-class QoS; dual, redundant power supplies with support for PoE+; 10GbE and 40GbE uplinks; 9 chassis IRF stacking; Static & RIP Routing, MACsec, OSPF, IPv6 and Energy Efficient Ethernet. The 5510 HI offers advanced technologies including OAM, CFD, multi-level QoS, MPLS, and VPLS. It can be managed with the HPE Intelligent Management Center (IMC) Software for a single view of your entire network.

Specifications

• Ports: (24) RJ-45 autosensing 10/100/1000 PoE+ ports Ports 1 - 8 support MACSec (4) SFP+ 10GbE ports (1) port expansion module slot Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module
• Memory and processor: 2 GB SDRAM Packet buffer size: 4 MB 512 MB flash
• Latency: 1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs
• Throughput: up to 214 Mpps
• Routing/switching capacity: 288 Gbps
• PoE capability: 740 W PoE+
• Stacking capabilities: IRF 9 switches
• Management features: IMC - Intelligent Management Center Command-line interface Web browser SNMP manager
• Input voltage: 100 - 240 VAC, rated (90 - 264 VAC, max) (depending on power supply chosen)
• Operating humidity range: 10 to 90% (noncondensing)
• Power Consumption: 650 W (maximum)
• Heat dissipation: 2217 BTU/hr (3599.66 kJ/hr)
• Product dimensions (H x W x D): 1.72 x 17.32 x 18.11 in
• Weight: 27.56 lb
