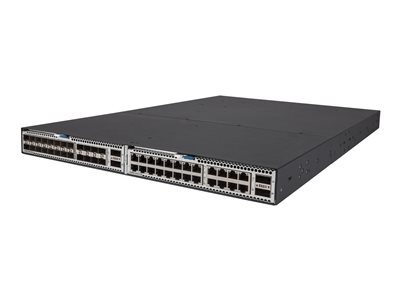

HPE FlexFabric 5930 2QSFP+ 2-slot Switch JH178A

The HP FlexFabric 5930 Switch Series provides advanced features and high performance in a top-of-rack, data center switch architecture. Consisting of a 1U 32 port 40GbE QSFP+ Switch, a 2 Slot Modular version with 2 40GbE port and a 4 Slot Modular version, the 5930 brings high density to a small footprint.

While 9 unit IRF reduces management complexities by up to 88%, it also delivers < 50 msec convergence time. You can rely on the FlexFabric 5930 Switch Series to improve switch utilization and lower TCO, while delivering business resilience and high availability.

Specifications

• Ports: (2) module slots: (2) QSFP+ 40GbE ports
• Memory and processor: 1 GB flash
• Packet buffer size: 12.2 MB, 4 GB SDRAM
• Throughput: up to 1071 Mpps
• Routing/switching capacity: 1440 Gbps
• Stacking capabilities: IRF, 9 switches
• Management features: IMC - Intelligent Management Center, Command-line interface, Out-of-band management, SNMP manager, Telnet, FTP
• Input voltage: 90 - 264 VAC, rated -40 to -75 VDC, rated (depending on power supply chosen)
• Operating humidity range: 10 to 90% (noncondensing)
• Power consumption: 508 W (maximum)
• Heat dissipation: 358 / 1733 BTU/hr (377.69 / 1828.31 kJ/hr)
• Minimum dimensions (W x D x H): 44 x 66 x 4.42 cm
• Weight: 18 kg
