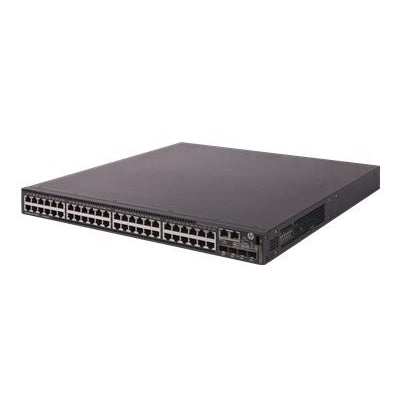

HPE FlexNetwork 5130 48G PoE+ 4SFP+ 1-slot HI Switch JH326A

The HPE FlexNetwork 5130 HI Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) interfaces.

Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers.

High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series. This switch also supports dual modular power supplies.

Specifications

• Ports: (48) RJ-45 autosensing 10/100/1000 PoE+ ports Ports 1 - 8 support MACSec (4) SFP+ 10GbE ports (1) port expansion module slot Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports, with optional module
• Memory and processor: 2 GB SDRAM Packet buffer size: 4 MB 512 MB flash
• Latency: 1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs
• Throughput: up to 190.5 Mpps
• Routing/switching capacity: 216 Gbps
• PoE capability: 1440 W PoE+
• Stacking capabilities: IRF 9 switches
• Management features: IMC - Intelligent Management Center Command-line interface Web browser SNMP manager
• Input voltage: 100 - 240 VAC, rated (90 - 264 VAC, max) (depending on power supply chosen)
• Operating humidity range: 10 to 90% (noncondensing)
• Power Consumption: 670 W (maximum)
• Heat dissipation: 2286 BTU/hr (2411.73 kJ/hr)
• Product dimensions (H x W x D): 1.72 x 17.32 x 18.11 in
• Weight: 27.56 lb
