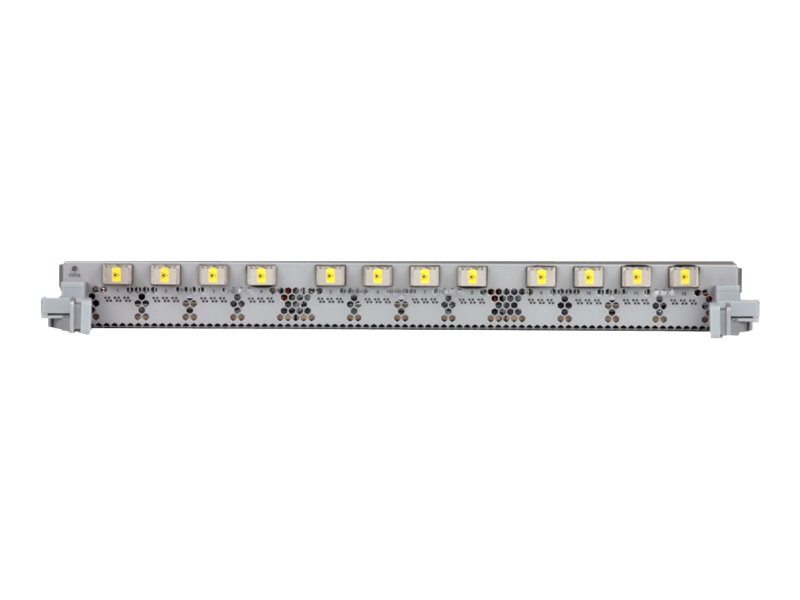

HPE Arista 7500E Series 12QSP+ MPO Module JH541A

Designed for large virtualized data centers and cloud networks, the Arista 7500 series modular switches are the high-performance data center switches, they combine scalable L2 and L3 resources with advanced features for network monitoring, precision timing, network virtualization to deliver scalable and deterministic network performance for mission-critical data centers, enterprise and HPC environments. The Arista 7500E delivers seamless upgrades, ensuring investment protection of fabrics, line cards and common equipment, while setting a standard for performance, density, reliability, and power efficiency. The Arista 7500E series offers high capacity and support for ports of wire-speed 100GbE.With front-to-rear airflow, redundant and hot-swappable supervisor, power, fabric and cooling modules, the system is purpose-built for data centers. The 7500E series is energy-efficient with low typical power consumption for a fully loaded chassis. All of these attributes make the Arista 7500E an ideal platform for building reliable, low-latency, resilient and highly scalable data center networks.

Specifications

• Device Type: Expansion module
• Form Factor: Plug-in module
• Ports: 100GBase-SR10 x 12
• Connectivity Technology: Wired
• Data Link Protocol: 10 GigE, 40 Gigabit LAN, 100 Gigabit Ethernet
• Data Transfer Rate: 100 Gbps
• Capacity: Jumbo frame size: 9216 ¦ Priority queues per port: 8 ¦ LAG groups: 1152 ¦ ARP entries: 128000 ¦ ACL entries: 72000
• Interfaces: 12 x 100Gb Ethernet - CFP
• Power Consumption Operational: 408 Watt
• Width: 17.5 in
• Depth: 23 in
• Height: 1.8 in
• Weight: 15.43 lbs
