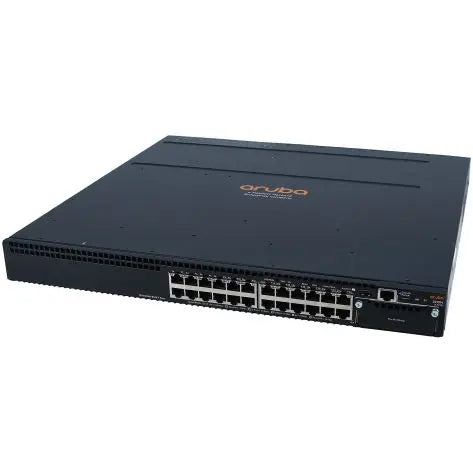

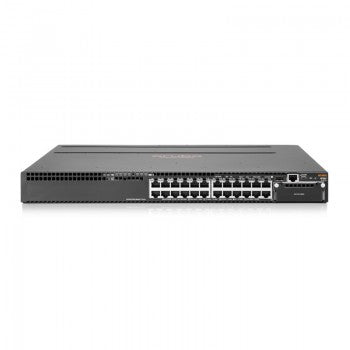

HPE Aruba 3810M 24-Port 1-Slot GbE Switch JL071A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY.

Overview

Enterprise networks need access switches that deliver both performance and flexibility. As wireless devices, cloud applications, and IoT endpoints grow, the access layer must keep up with higher traffic and evolving security needs. The HPE Aruba 3810M JL071A addresses that challenge with twenty-four Gigabit Ethernet ports and a modular expansion slot for scalable uplink capacity.

This switch fits modern campus networks, branch offices, and enterprise environments that require reliable switching and advanced routing. With Layer 3 functionality, strong security features, and Aruba’s centralized network management tools, JL071A helps IT teams maintain visibility, segmentation, and stable network performance.

Key Features

• 24 × 10/100/1000 Gigabit Ethernet access ports
• Ports 1–24 support MACsec encryption for secure connectivity
• 1 modular expansion slot for optional uplink modules
• Supports up to 4 SFP+ 10GbE ports or 1 × 40GbE QSFP+ module
• Virtual Switching Framework stacking support for scalable networks
• Advanced Layer 2 and Layer 3 routing capabilities
• Centralized management through Aruba AirWave, Aruba Central, and IMC
• Designed for enterprise campuses, SMB networks, and branch offices

Technical Specifications

Brand: HPE Aruba
SKU / Part Number: JL071A
Product Series: Aruba 3810M
Product Type: Managed Layer 3 Switch
Form Factor: Rack-mountable

Ports
Access Ports: 24 × RJ-45 autosensing 10/100/1000
Expansion Slot: 1 open module slot

Module Support
Optional modules can provide:

• Up to 4 × SFP+ 10GbE ports
• Up to 1 × 40GbE QSFP+ uplink port

Performance
Switching Capacity: 160 Gbps
Switch Fabric Speed: 169 Gbps
Throughput: Up to 95.2 Mpps

Latency
1GbE Latency: < 2.8 µs
10GbE Latency: < 1.8 µs
40GbE Latency: < 1.5 µs

Memory and Processor
CPU: Dual ARM Cortex-A9 @ 1 GHz
RAM: 2 GB DDR3 SDRAM
Packet Buffer: 13.5 MB

Stacking
Virtual Switching Framework supports stacking up to 10 switches

Management and Monitoring
Management Platforms: Aruba AirWave, Aruba Central, IMC
Management Interfaces: CLI, Web browser, configuration menu
Out-of-Band Management: RJ-45 Ethernet, serial RS-232C, micro USB

Power and Environment
Input Voltage: 100–240 VAC, depending on configuration
Operating Humidity: 15%–95% at 104°F (40°C) non-condensing

Physical
Dimensions (H × W × D): 1.73 × 17.42 × 16.98 in
Weight: 12.76 lb
Rack Height: 1U

Use Cases

JL071A works well in enterprise access layers where reliable wired connectivity is required. Offices use it to connect desktops, printers, and wireless access points while maintaining high-speed uplinks to aggregation switches. Campus networks benefit from its modular uplink support and stacking capability. Branch environments also rely on it for stable network segmentation and simplified management across distributed sites.

Why Choose HPE Aruba 3810M JL071A

• Reliable 24-port Gigabit access switch for enterprise networks
• Modular uplink slot for scalable 10GbE or 40GbE connectivity
• Virtual stacking capability for simplified network expansion
• MACsec support for secure network communication
• Advanced Layer 3 routing features for enterprise traffic control
• Integration with Aruba AirWave and Aruba Central management tools
• Designed for campus networks, SMB environments, and branch offices
• Brand new hardware backed by a full HPE warranty from Chicago Computer Supply

FAQs

What type of switch is the Aruba JL071A?

It is a managed Layer 3 enterprise switch designed for high-performance access layer deployments.

How many Ethernet ports does JL071A include?

The switch includes 24 Gigabit Ethernet RJ-45 ports for wired devices.

Can this switch support high-speed uplinks?

Yes. The switch has one expansion slot that supports optional modules with 10GbE SFP+ or 40GbE QSFP+ ports.

Does the switch support stacking?

Yes. It supports the Virtual Switching Framework, allowing up to 10 switches to operate as a single logical device.

Is MACsec supported on this switch?

Yes. Ports 1 through 24 support MACsec encryption for secure communication.

Is the product new and covered by warranty?

Yes. The switch is brand new, factory-sealed, retail-boxed, and includes the full HPE warranty from Chicago Computer Supply.
