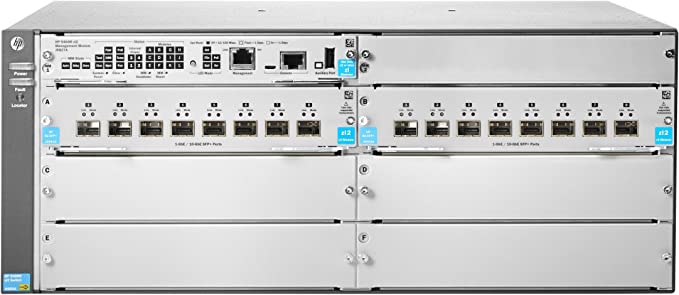

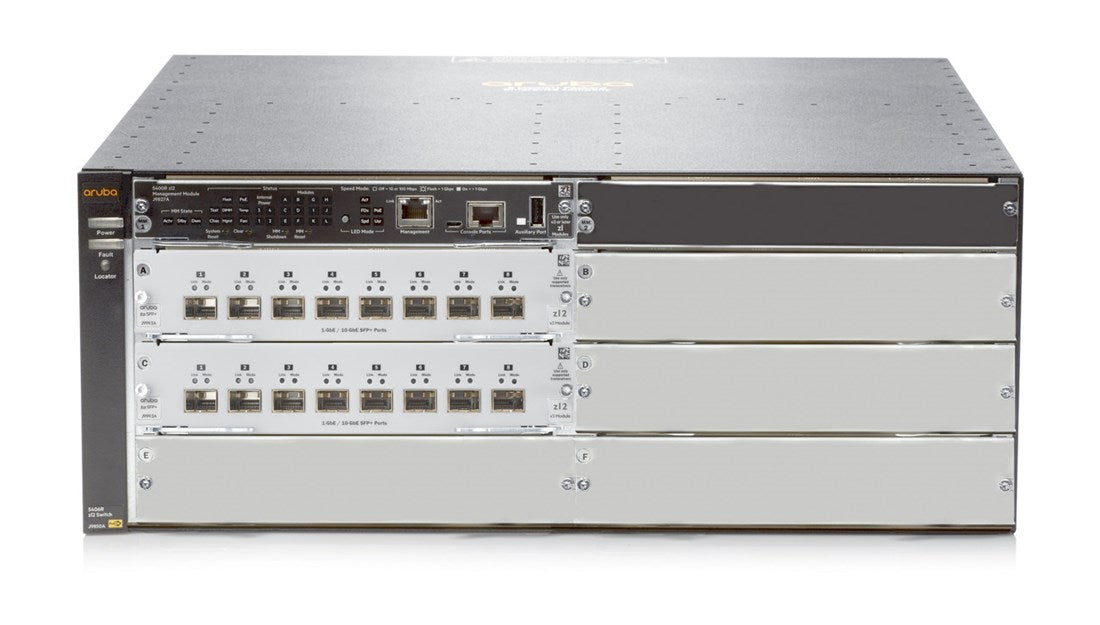

HPE Aruba 5406R 16-Port SFP+ (No PSU) v3 zl2 Switch JL095A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY.

Overview

Core and aggregation networks demand stability, speed, and room to grow. Large campuses and data-heavy environments cannot rely solely on fixed switches. The HPE Aruba 5406R JL095A delivers modular performance designed for enterprise networks that require scalability and resilience.

This advanced Layer 3 modular switch provides sixteen high-speed SFP+ ports for 1GbE or 10GbE fiber connectivity. Built on the Aruba 5400R zl2 architecture, it supports enterprise routing, virtualization, and high availability. When combined with Aruba network management platforms, JL095A enables organizations to deploy flexible aggregation and core switching while maintaining strong security and operational visibility.

Key Features

·         16 × 1/10GbE SFP+ ports for high-speed fiber connectivity

·         Modular chassis architecture designed for scalable enterprise networks

·         Advanced Layer 3 routing, including OSPF, BGP, VRRP, and RIP

·         Up to 960 Gbps switching capacity with high throughput performance

·         Virtual Switching Framework support for simplified network scaling

·         Robust QoS and security features for enterprise traffic control

·         Integration with Aruba AirWave, Aruba Central, and ClearPass tools

·         Designed for enterprise campus cores, aggregation layers, and data centers

Specifications

Brand: HPE Aruba
SKU / Part Number: JL095A
Product Series: Aruba 5400R zl2
Product Type: Modular Layer 3 Switch
Form Factor: Rack-mountable (4U)

Ports
Network Ports: 16 × SFP+ 1GbE / 10GbE fiber ports

Performance
Throughput: Up to 571.4 Mpps
Switching Capacity: 960 Gbps
Switch Fabric Bandwidth: 1015 Gbps

Memory and Processor
Processor: Freescale P2020
Clock Speed: 1.2 GHz
RAM: 4 GB DDR3 SDRAM
Additional Memory: 1 GB
MAC Address Table: 64K entries

Routing and Network Capacity
IPv4 Routing Table Entries: 10,000
IPv6 Routing Table Entries: 5,000
Supported Routing Protocols: RIP-1, RIP-2, OSPFv2, OSPFv3, BGP, VRRP, PIM-SM, PIM-DM
Multicast Support: IGMP, IGMPv3, MLD, MLDv2

Management and Monitoring
Management Interfaces: CLI, Web interface, SNMP
Protocols: SNMP 1/2/3, RMON, XRMON, Telnet, TFTP
Management Platforms: Aruba AirWave, Aruba Central, ClearPass Policy Manager

Standards Compliance
IEEE Standards: 802.1Q, 802.1X, 802.1p, 802.1ab, 802.1AX, 802.3x, 802.3az, LACP

Expansion
Expansion Slots: 6 total (4 available)
SD Memory Slot: 1

Power
Power Supply: Not included (supports up to 2 internal PSUs)

Physical
Dimensions (H × W × D): 6.9 × 17.5 × 17.8 in
Rack Height: 4U
Color: Gray / Black
Included Accessories: Fan tray, rack mounting kit

Use Cases

JL095A works well in enterprise campus cores and network aggregation layers where large volumes of traffic move between access switches and data centers. Organizations deploy it to support high-speed fiber connectivity across multiple network segments. Data-intensive environments benefit from its modular architecture and strong routing capabilities. Universities, corporate campuses, and distributed enterprise networks use it to maintain stable backbone performance.

Why Choose HPE Aruba 5406R JL095A

·         Modular enterprise switch designed for scalable network growth

·         Sixteen high-speed SFP+ ports for 10GbE aggregation connectivity

·         Up to 960 Gbps switching capacity for large network environments

·         Advanced Layer 3 routing for enterprise traffic management

·         Aruba ecosystem integration for centralized monitoring and security

·         Built for campus cores, aggregation layers, and data center networks

·         Flexible expansion through modular slots and optional power supplies

·         Brand new hardware backed by a full HPE warranty from Chicago Computer Supply

FAQs

What type of switch is the Aruba JL095A?

It is a modular Layer 3 enterprise switch designed for campus core and aggregation networks.

How many ports does JL095A provide?

The switch provides sixteen SFP+ ports that support 1GbE or 10GbE fiber connectivity.

Does this switch include a power supply?

No. JL095A is sold without a power supply and supports up to two internal PSUs.

What environments use this switch most often?

It is most commonly available in enterprise campuses, network aggregation layers, and data center infrastructures.

Does JL095A support advanced routing protocols?

Yes. It supports multiple protocols, including OSPF, BGP, VRRP, and RIP for enterprise network routing.

Is the product new and covered by warranty?

Yes. The switch is brand new, factory-sealed, retail-boxed, and includes the full HPE warranty from Chicago Computer Supply.
