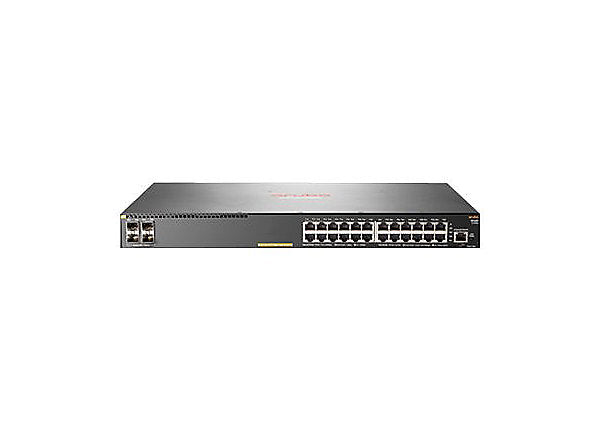

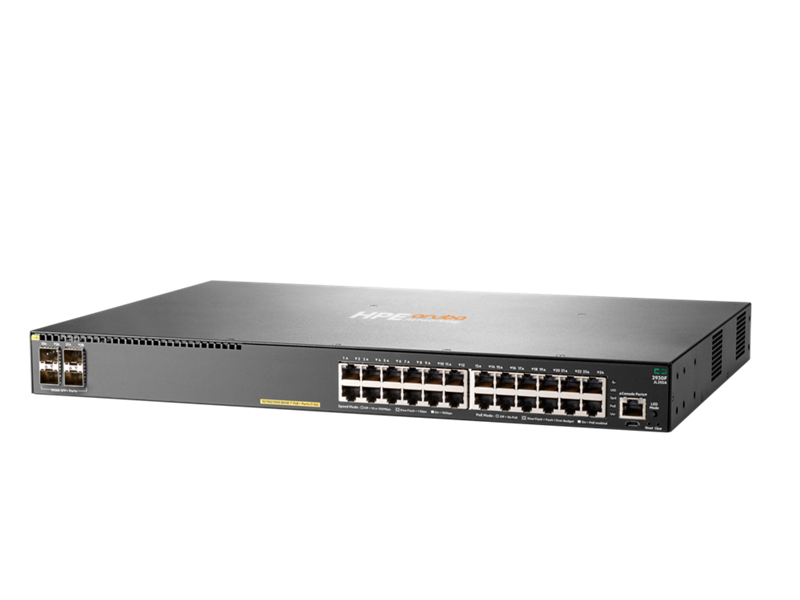

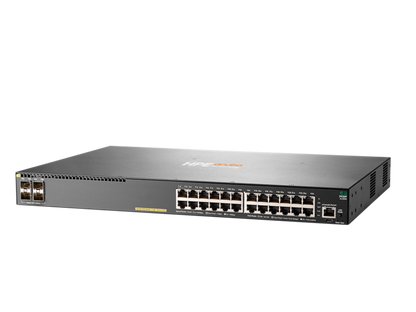

HPE Aruba 2930F 24G PoE+ 4SFP+ 24-Port Switch JL255A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY.

Overview

Edge networks must power devices and move traffic without interruption. Wireless access points, VoIP phones, and surveillance cameras rely on stable switching every day. The HPE Aruba 2930F JL255A delivers that reliability with twenty-four Gigabit Ethernet PoE+ ports built for enterprise access environments.

This switch also supports high-speed uplinks for growing network demands. Four integrated SFP+ ports provide flexible 1GbE or 10GbE fiber connectivity for aggregation or core switching. Combined with Layer 3 routing capabilities and Aruba’s centralized management ecosystem, JL255A helps organizations deploy secure, scalable networks across branch offices, campus environments, and SMB infrastructures.

Key Features

• 24 × 10/100/1000 Gigabit Ethernet PoE+ access ports
• 4 × 1/10GbE SFP+ uplink ports for high-speed aggregation
• Layer 3 routing support, including static routing, RIP, and Access OSPF
• Virtual Switching Framework support for scalable stacking deployments
• Up to 370W PoE+ power budget for edge network devices
• Zero Touch Provisioning with Aruba Central for simplified deployment
• Centralized monitoring through Aruba AirWave and Aruba Central
• Built for enterprise edge networks, branch offices, and SMB environments

Technical Specifications

Brand: HPE Aruba
SKU / Part Number: JL255A
Product Series: Aruba 2930F
Product Type: Managed Layer 3 Access Switch
Form Factor: Rack-mountable

Ports
Access Ports: 24 × RJ-45 autosensing 10/100/1000 PoE+
Uplink Ports: 4 × SFP+ 1/10GbE (PHY-less)

Performance
Switching Capacity: 128 Gbps
Throughput: Up to 95.2 Mpps
Latency: 1GbE < 3.8 µs
Latency: 10GbE < 1.6 µs

Memory and Processor
CPU: Dual Core ARM Cortex-A9 @ 1016 MHz
RAM: 1 GB DDR3 SDRAM
Flash Storage: 4 GB eMMC
Packet Buffer: 12.38 MB (4.5 MB ingress / 7.785 MB egress)

PoE
PoE Type: PoE+
PoE Budget: Up to 370W

Management and Monitoring
Management Platforms: Aruba AirWave, Aruba Central, IMC
Interfaces: CLI, Web browser, configuration menu
Protocols: SNMP, Telnet, RMON1, FTP
Out-of-Band Management: Serial RS-232C or micro USB

Power and Environment
Input Voltage: 100–127 / 200–240 VAC
Power Consumption: 445 W maximum
Operating Humidity: 15%–95% at 104°F (40°C) non-condensing
Heat Dissipation: 258 BTU/hr (272.2 kJ/hr)

Physical
Dimensions (H × W × D): 1.73 × 17.42 × 11.98 in
Weight: 8.6 lb

Use Cases

JL255A works well in enterprise wiring closets where PoE-powered devices require stable connectivity. It powers wireless access points, VoIP phones, and IP cameras while providing reliable Gigabit connections for office endpoints. Branch offices benefit from its Layer 3 routing capabilities that simplify traffic segmentation. SMB environments use it to maintain consistent network performance while managing infrastructure through Aruba’s centralized management platforms.

Why Choose HPE Aruba 2930F JL255A

• Reliable 24-port PoE+ access switch for enterprise edge deployments
• Integrated 10GbE SFP+ uplinks for fast aggregation connectivity
• Layer 3 routing support for efficient traffic segmentation
• Virtual Switching Framework supports scalable network growth
• Aruba management ecosystem integration for centralized monitoring
• Designed for modern digital workplaces with wired and wireless integration
• Enterprise-grade switching hardware for continuous network operation
• Brand new device backed by a full HPE warranty from Chicago Computer Supply

FAQs

What type of switch is the Aruba JL255A?

It is a managed Layer 3 access switch designed for enterprise edge networks, branch offices, and SMB deployments.

How many Ethernet ports does JL255A include?

The switch includes 24 Gigabit Ethernet PoE+ ports for wired endpoints and powered network devices.

Does the switch support high-speed uplinks?

Yes. JL255A includes four SFP+ ports that support 1GbE or 10GbE uplink connectivity.

What devices can you power through PoE+?

The switch can power wireless access points, VoIP phones, security cameras, and other PoE-enabled devices.

Does JL255A support switch stacking?

Yes. It supports the Aruba Virtual Switching Framework, allowing multiple switches to operate as a single logical unit.

Is the product new and covered by warranty?

Yes. The switch is brand new, factory-sealed, retail-boxed, and includes the full HPE warranty from Chicago Computer Supply.
