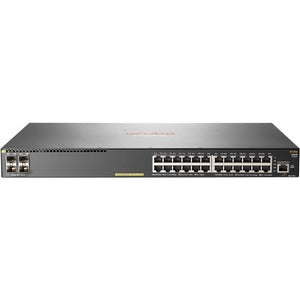

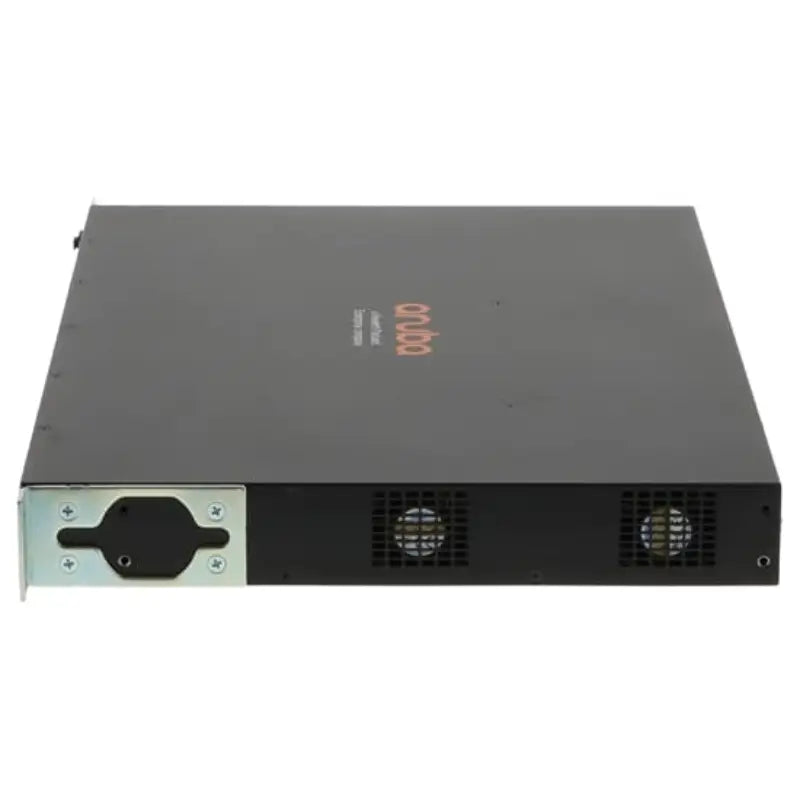

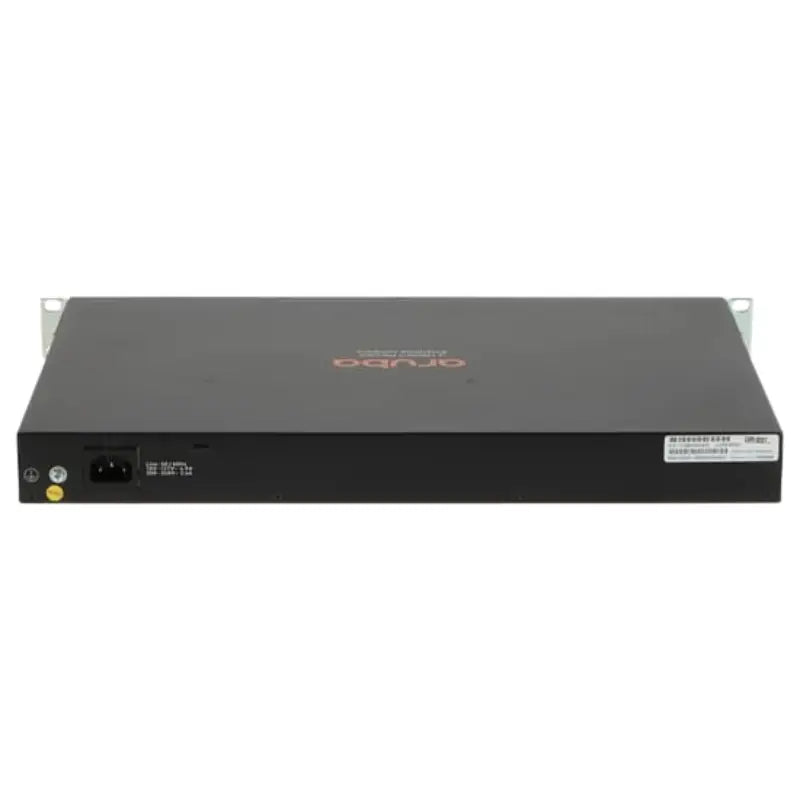

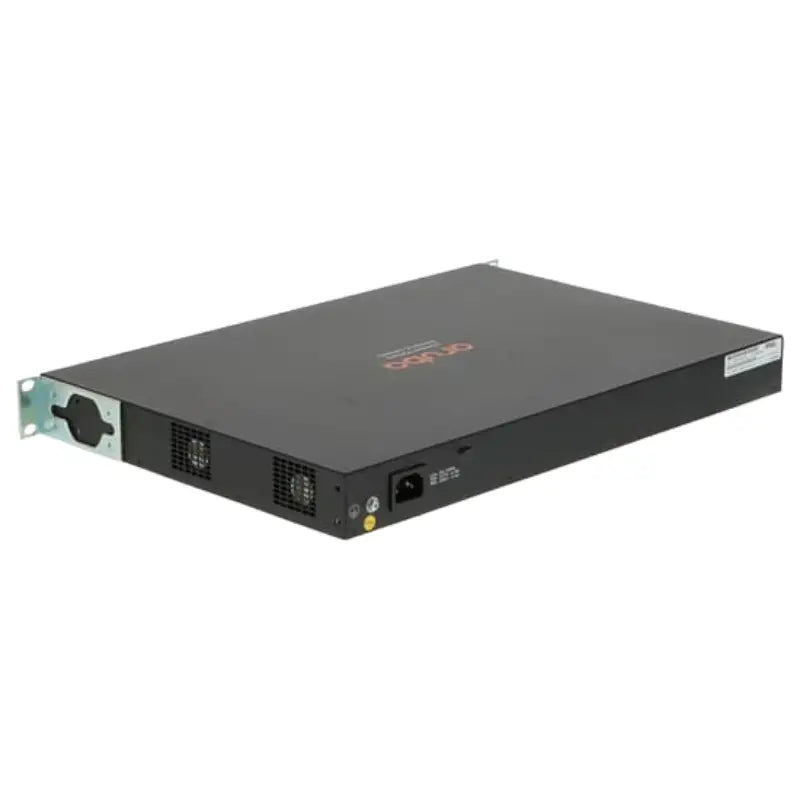

HPE Aruba 2930F 24G PoE+ 4SFP+ TAA Rack-Mountable Switch JL263A

BRAND NEW. FACTORY SEALED. RETAIL BOXED. FULL HPE WARRANTY INCLUDED. FROM CHICAGO COMPUTER SUPPLY.

Overview

Reliable edge switching is critical to modern networks. Offices depend on stable connectivity for phones, wireless access points, cameras, and workstations. The HPE Aruba 2930F JL263A delivers that stability with twenty-four Gigabit Ethernet PoE+ ports designed for enterprise access networks.

This switch also supports high-speed uplinks to maintain strong backbone performance. Four integrated SFP+ uplink ports provide 1GbE or 10GbE connectivity for fast aggregation to core switches. Combined with Layer 3 routing and Aruba management platforms, JL263A helps organizations maintain secure, segmented networks across branch offices, SMB environments, and campus deployments.

Key Features

• 24 × 10/100/1000 Gigabit Ethernet PoE+ access ports
• 4 × 1/10GbE SFP+ uplink ports for high-speed aggregation
• Up to 370W PoE+ power budget for network devices
• Layer 3 routing, including static routing, RIP, and Access OSPF
• Virtual Switching Framework (VSF) support for scalable deployments
• Enterprise-grade security, VLAN segmentation, and QoS
• Centralized management through Aruba AirWave, Aruba Central, and IMC
• TAA-compliant hardware suitable for regulated environments

Specifications

Brand: HPE Aruba
SKU / Part Number: JL263A
Product Series: Aruba 2930F
Product Type: Managed Layer 3 Access Switch
Form Factor: Rack-mountable

Ports
Access Ports: 24 × RJ-45 autosensing 10/100/1000 PoE+
Uplink Ports: 4 × SFP+ 1/10GbE (PHY-less)

Performance
Switching Capacity: 128 Gbps
Throughput: Up to 95.2 Mpps
Latency: 1GbE < 3.8 µs
Latency: 10GbE < 1.6 µs

Memory and Processor
CPU: Dual Core ARM Cortex-A9 @ 1016 MHz
RAM: 1 GB DDR3 SDRAM
Flash Storage: 4 GB eMMC
Packet Buffer: 12.38 MB (4.5 MB ingress / 7.785 MB egress)

PoE
PoE Type: PoE+
PoE Budget: Up to 370W

Management and Monitoring
Management Platforms: Aruba AirWave, Aruba Central, IMC
Interfaces: CLI, Web browser, configuration menu
Protocols: SNMP, Telnet, RMON1, FTP
Out-of-Band Management: Serial RS-232C or micro USB

Power and Environment
Input Voltage: 100–127 / 200–240 VAC
Power Consumption: 445 W maximum
Operating Humidity: 15%–95% at 104°F (40°C) non-condensing
Heat Dissipation: 258 BTU/hr

Physical
Dimensions (H × W × D): 1.73 × 17.42 × 11.98 in
Weight: 8.6 lb

Use Cases

JL263A works well in enterprise wiring closets where PoE-powered devices require reliable connectivity. It powers wireless access points, IP phones, and surveillance cameras while delivering stable Gigabit connections for desktops and servers. Branch offices benefit from Layer 3 routing, which simplifies segmentation and traffic management. In SMB environments, it delivers dependable switching performance and centralized management via Aruba platforms.

Why Choose HPE Aruba 2930F JL263A

• Compact 24-port PoE+ access switch designed for enterprise edge networks
• Integrated 10GbE SFP+ uplinks for fast backbone aggregation
• Up to 370W PoE capacity for powering wireless APs, phones, and cameras
• Virtual Switching Framework support for scalable switch deployments
• Layer 3 routing features for campus and branch network segmentation
• Enterprise security and QoS capabilities for stable network performance
• TAA-compliant hardware suitable for regulated environments
• Brand new hardware backed by a full HPE warranty from Chicago Computer Supply

FAQs

What type of switch is the Aruba JL263A?

It is a managed Layer 3 access switch designed for enterprise edge, branch offices, and SMB networks.

How many Ethernet ports does JL263A include?

It includes 24 Gigabit Ethernet PoE+ ports for wired devices and powered network endpoints.

Does the switch support high-speed uplinks?

Yes. JL263A includes four SFP+ ports supporting 1GbE or 10GbE uplink connectivity.

What is the PoE capacity of this switch?

The switch supports PoE+ with a total power budget of up to 370W.

Does JL263A support stacking?

Yes. It supports Aruba Virtual Switching Framework (VSF), allowing multiple switches to operate as a single logical switch.

Is the product new and covered by warranty?

Yes. The switch is brand new, factory-sealed, retail-boxed, and includes the full HPE warranty from Chicago Computer Supply.
