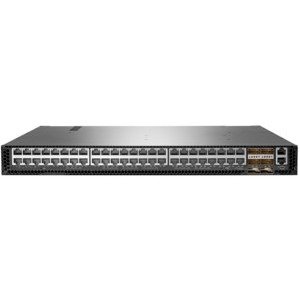

HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch JL316A

The HPE Altoline 6921 Switch Series are top-of-rack (TOR) or spine switches for high-performance data centers. In a compact 1RU form factor, these switches provides line-rate L2 and L3 switching across up to 48 1/10GBASE-T or 1/10 GbE SFP+ ports, with 6 x 40GbE QSFP+ uplink connections.The HPE Altoline 6921 Switch Series can be deployed as a TOR switch supporting 10GbE server connections, or as a spine switch, supporting 10GbE interconnects.The HPE Altoline 6921 Switch Series a bare-metal switches loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible independent switch OS offerings.

Specifications

• Product Type: Ethernet Switch
• Product Series: 6921
• Brand Name: HP
• Manufacturer: Hewlett Packard Enterprise
• Product Model: 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front
• Product Name: Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch
• Product Line: Altoline
• Manufacturer Part Number: JL316A
• Manageable: Yes
• Environmentally Friendly: Yes
• Environmental Certification: RoHS
• Package Contents: Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch, 2 x Power Supply, 5 x Fan Tray
• Compatible Rack Unit: 1U
• Height: 1.7"
• Width: 18.6"
• Depth: 17.4"
• Form Factor: Rack-mountable
• Weight (Approximate): 18.74 lb
• Ethernet Technology: 40 Gigabit Ethernet10 Gigabit Ethernet
• Media Type Supported: Twisted PairOptical Fiber
• Network Technology: 10GBase-T40GBase-X
• Number of Total Expansion Slots: 6
• Shared SFP Slot: No
• Expansion Slot Type: QSFP+
• Modular: Yes
• Uplink Port: Yes
• Stack Port: No
• Total Number of Network Ports: 48
• Port/Expansion Slot Details: 48 x 10 Gigabit Ethernet Network6 x 40 Gigabit Ethernet Uplink
• Redundant Power Supply Supported: Yes
• Power Source: Power Supply
• Layer Supported: 3
